Description

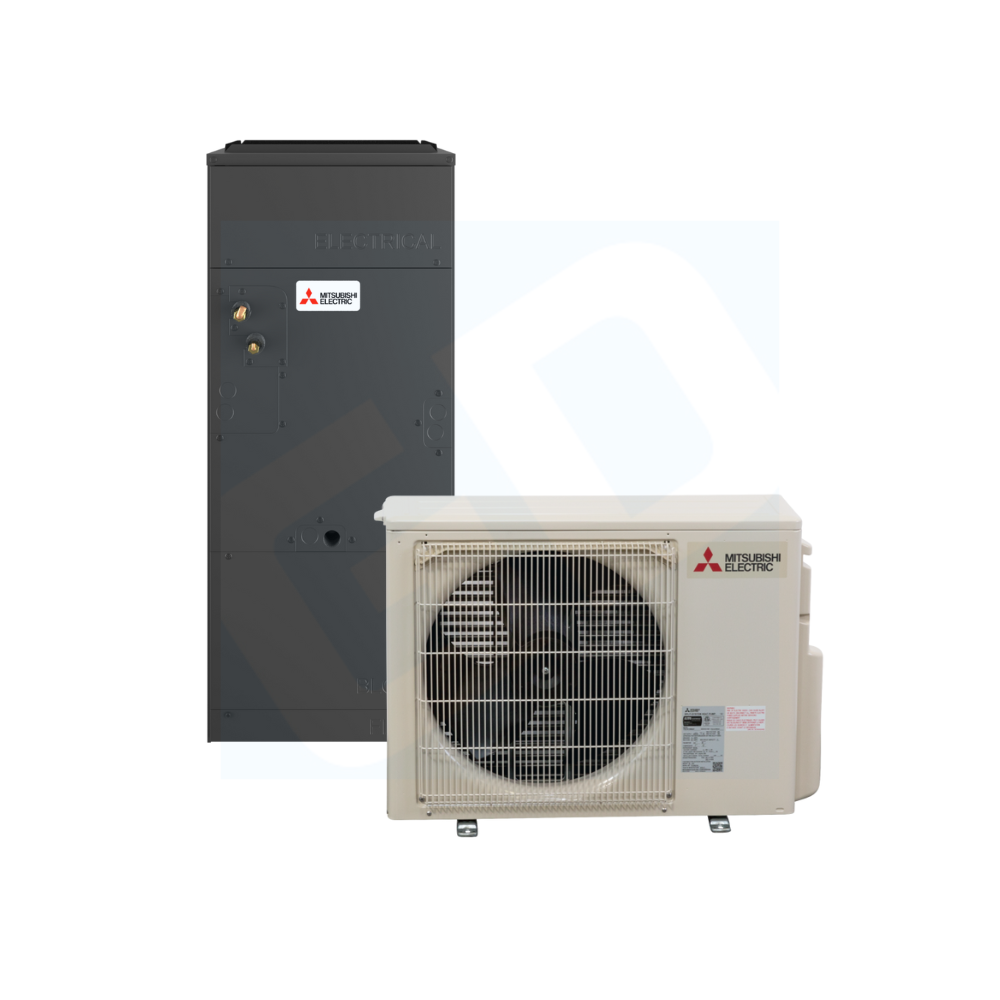

The Mitsubishi PVA‑AA12NL & PUY‑AK12NL is a 12,000 BTU single-zone ducted heat pump system ideal for ~500 sq ft. It offers quiet, efficient heating and cooling, flexible multi-position installation, and smart control compatibility for year-round comfort and reliability.

Warranty Coverage

Out of the Box: 5 Years Parts/ 7 Years Compressor

With Online Registration: 10 Years Parts/Compressor

General Information

Unit Type: Single Zone
Product Line: P-Series PVA
Operating Mode: Cooling Only
Low Ambient Heat: Cooling Only
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 1/2"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Package Includes

Indoor Unit PVA-AA12NL

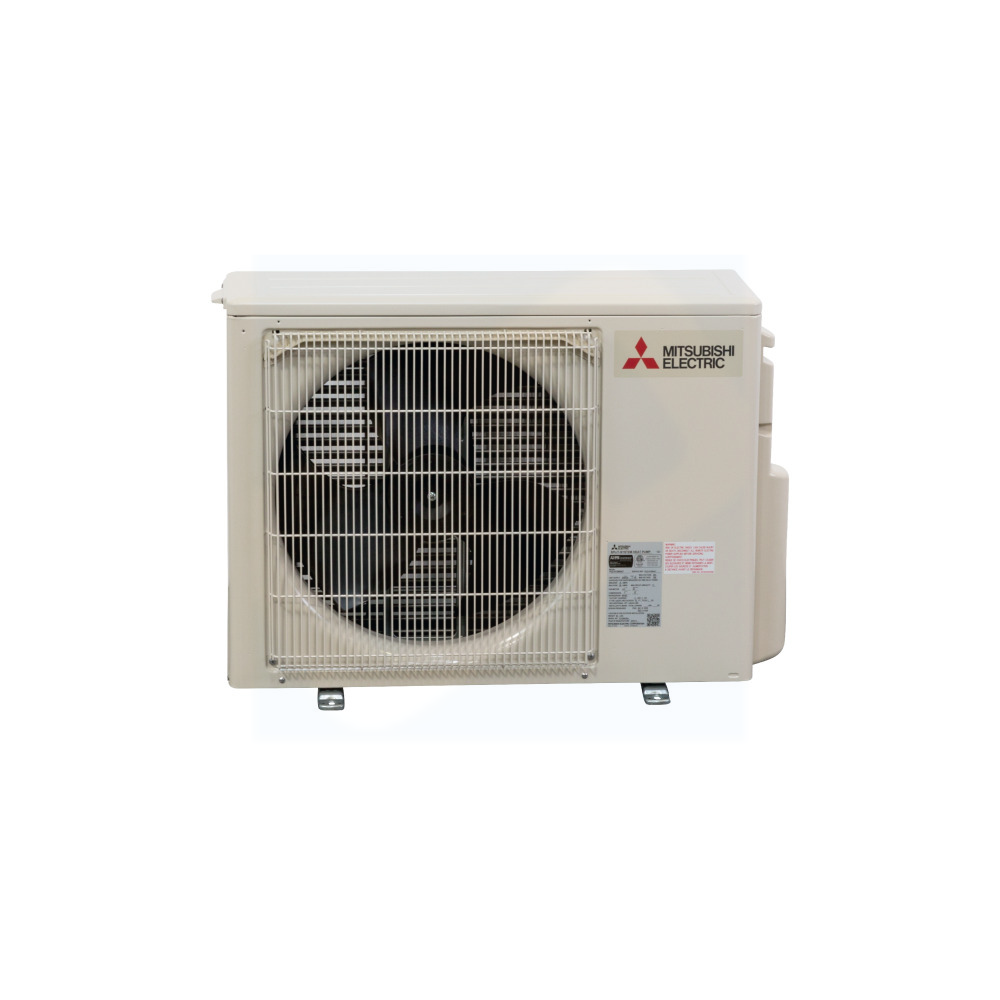

Outdoor Unit PUY-AK12NL

Performance

Cooling Capacity up to 12,400 BTU
SEER2 20
EER2 14.2
Room Cooling/Heating Capacity up to 500 sq ft

Specifications

Airflow Cooling CFM, Dry: 280-340-400
Noise Level dB(A), Cooling: 31-35-38
Size W x D x H: 17" x 21-5/8" x 50-1/4"
Weight: 113 lbs

Documentation

ME_SUBMITTAL_PVA-AA12NL_PUY-AK12NL.pdf

PVA-AA12NL_Installation_Manual.pdf

PVA-AA12NL_Operation_Manual.pdf

PVA-AA12NL_Service_Manual.pdf
