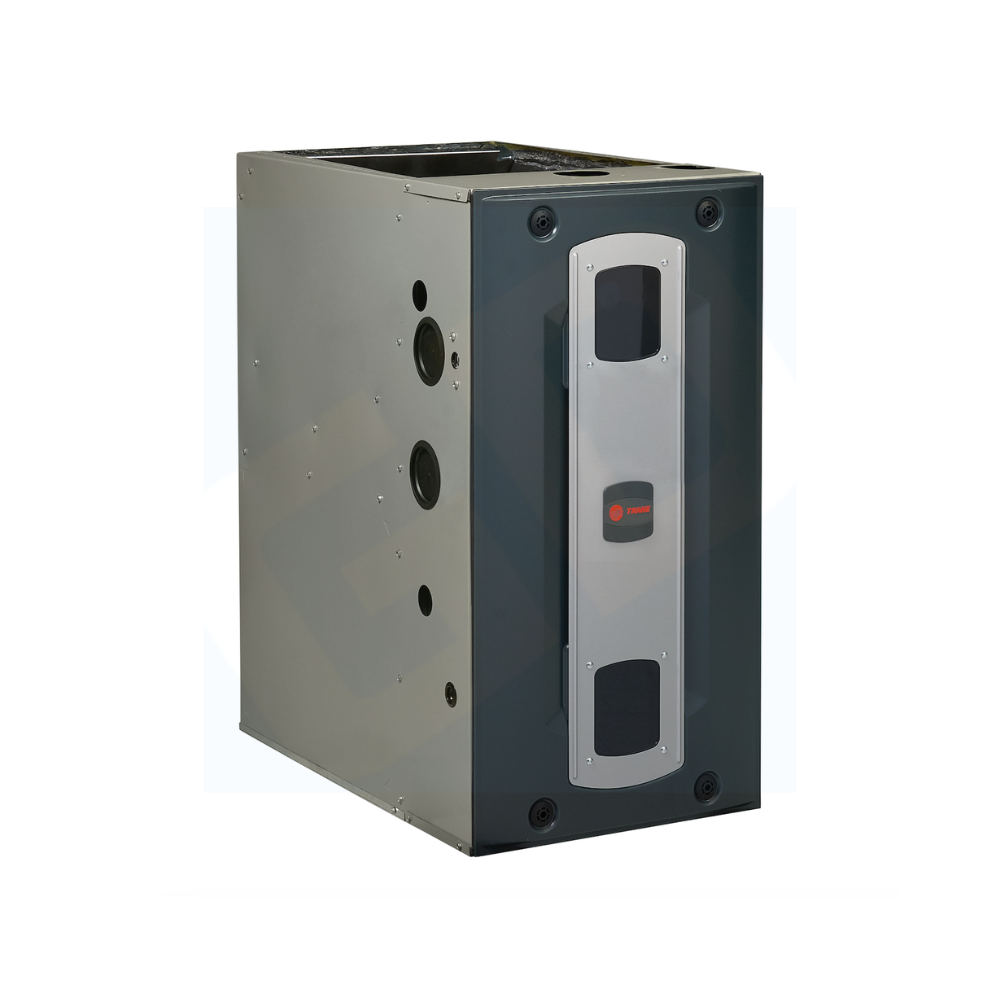

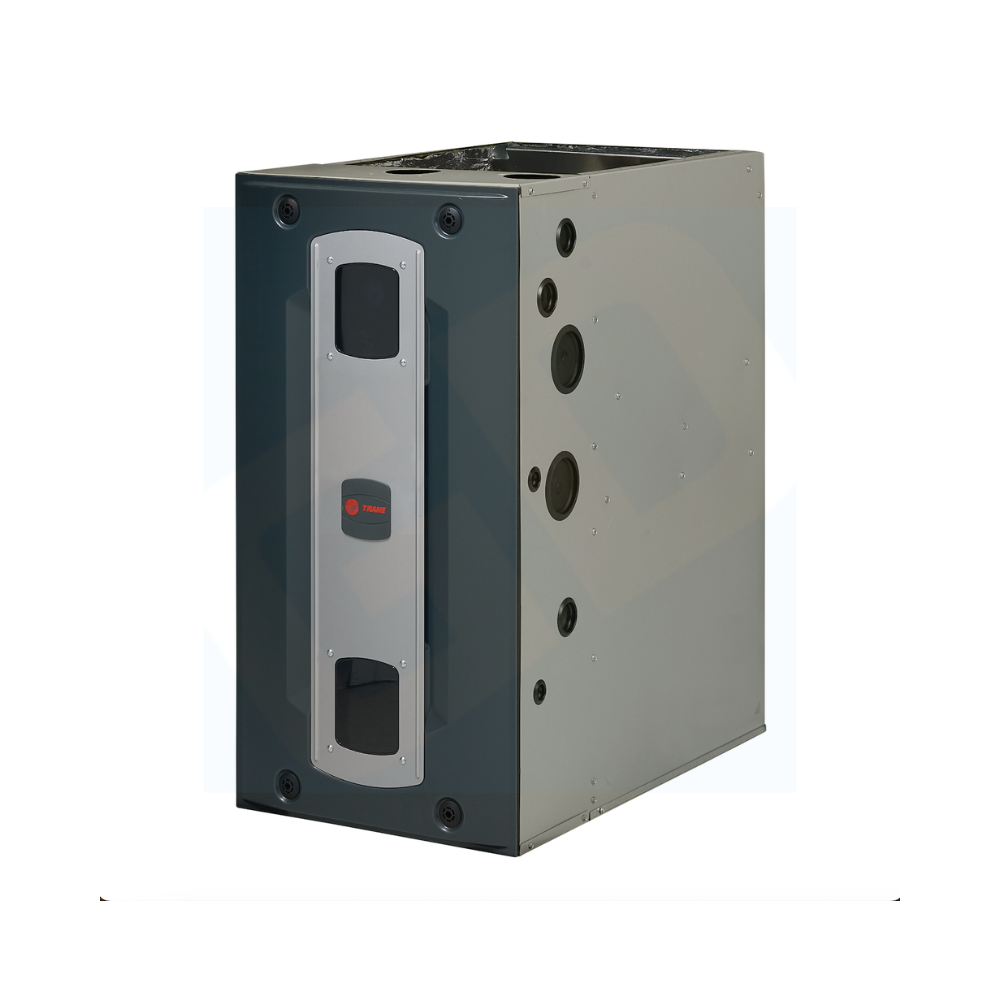

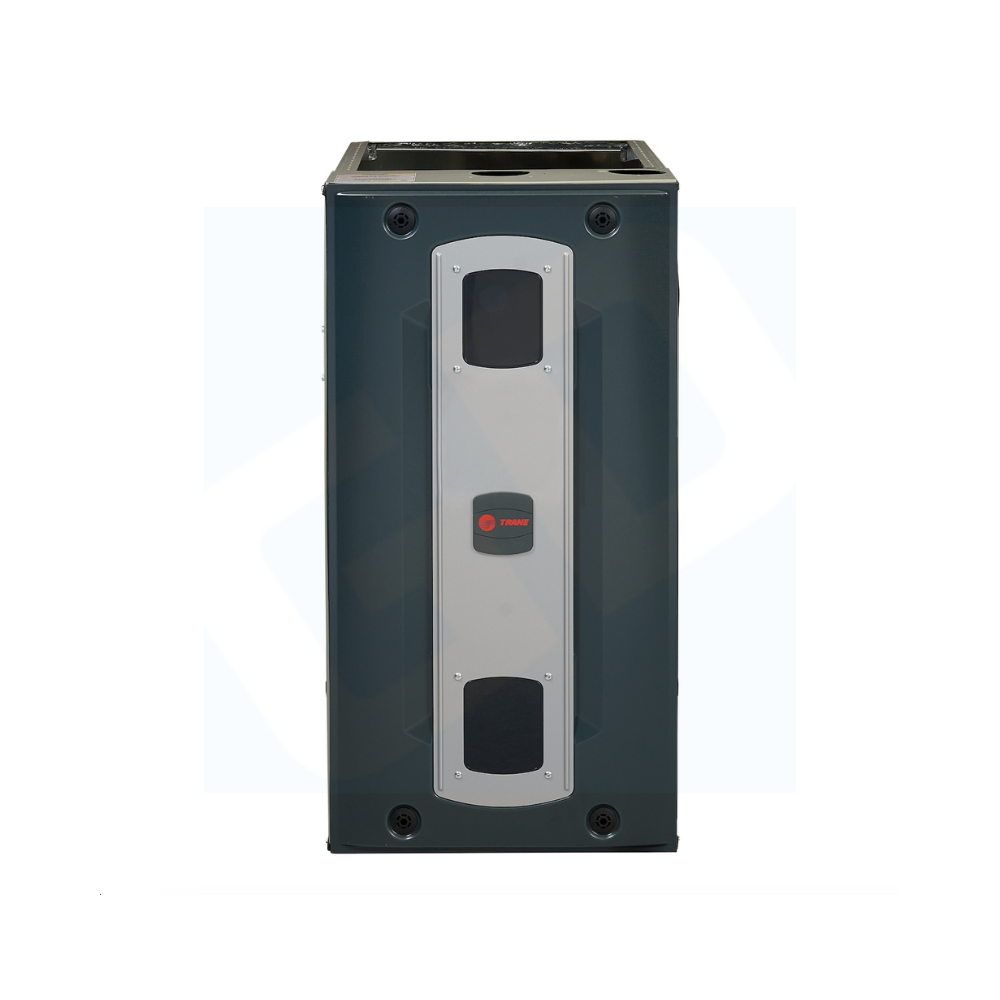

The Trane S9X1B060U4PSBB is a 60,000 BTU single-stage gas furnace with up to 96% AFUE efficiency. It features a 9-speed ECM blower motor, durable stainless steel heat exchangers, and flexible upflow or horizontal installation, delivering reliable, energy-efficient heating for residential HVAC systems.

Unit Type: Gas Furnace
Product Line: S9X1
Operating Mode: Cooling & Heating
System Capacity: 60,000 BTU
Line Set Size: 1/2"

Indoor Unit S9X1B060U4PSBB

Capacity up to 58,300 BTU
Room Cooling/Heating Capacity up to 2,500 sq ft

UP TO 96.0% AFUE ON S9X1 FURNACE MODELS
Meets utility rebates
Lowers utility bills
ELECTRICALLY EFFICIENT
Efficient airflow design reduces electrical energy use
34 INCH TALL
Lighter, easier to move and fit into tight spaces like
short basements or tight closets
Works great with larger, high-efficiency coils
No knockouts
3–WAY MULTI-POISE / DEDICATED DOWNFLOW
6 SKU’s — Upflow / Horizontal Left / Horizontal Right
5 SKU’s — Downflow
Added application flexibility and reduction in
specification errors
AIRFLOW
At least 400 CFM/ton at 0.5 in. H20 external static
pressure
REGULATORY
All models are air tight; 1% or less air leakage as per
ASHRAE 193 (1.4% for S9B1)
Open vestibule design provides a full 34” high open
vestibule
DIMENSIONS
Width is industry standard: 17.5”
Depth remains approximately 28”
Cabinet is compatible with industry standard coils as
well as other accessories
INTEGRATED FURNACE CONTROL
Setup / Status / Diagnostics / Digital Display
No dip switches
Last six errors stored
Dry contact EAC and HUM connections on S9X1
models
All multi-pin polarized terminals connections; no spade
terminals
Low voltage labeled above and below
TUBULAR STAINLESS STEEL PRIMARY HEAT
EXCHANGER
29–4C STAINLESS STEEL SECONDARY HEAT
EXCHANGER
Stainless steel is a more durable, corrosive-resistant
material than aluminumized steel
Integrated rail system for easy access if required
Reduces or eliminates need for baffles
VORTICA BLOWER, DESIGNED EXCLUSIVELY FOR
THE S-SERIES FURNACE
Improved airflow efficiency
Durable, easy to clean, two piece housing
Single piece belly band/ motor arm assembly
Blower deck has full-length rails for easy removal and
replacement, regardless of poise
THREE–WAY MULTI-POISE (UPFLOW,
HORIZONTAL LEFT AND RIGHT) PLUS DEDICATED
DOWNFLOW
Easier to specify
Shipped ready to install (no conversion kits required)
Every model has at least two venting options
Barbed fitting on trap at hose connection and on
cabinet transition for hose has barbed fitting and
clamps at both ends for leak resistance.
Vent table improvements including longer vent
lengths.

Airflow CFM: 840-1,001-1,140-1,208-1,299-1,413-1,444-1,727-1,790
Size W x D x H: 34" x 17-1/2" x 28-3/4"
Weight: 122 lbs
