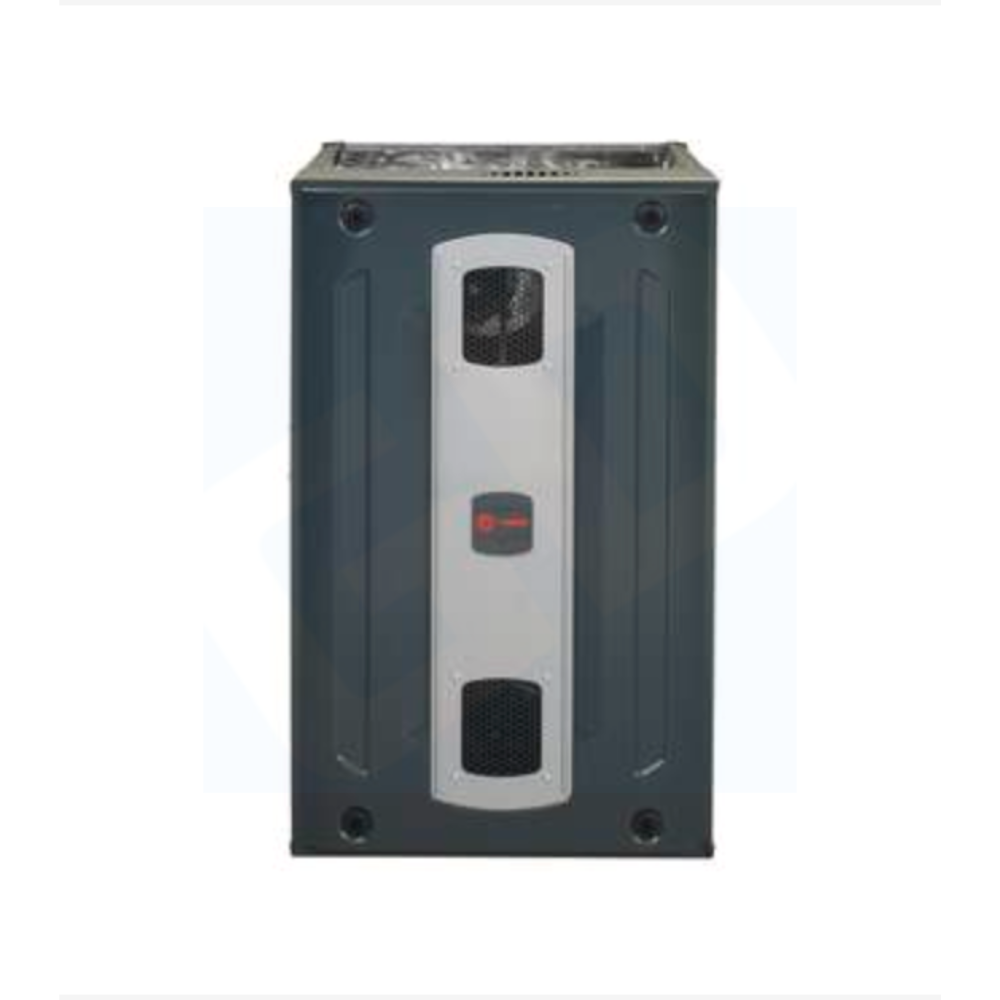

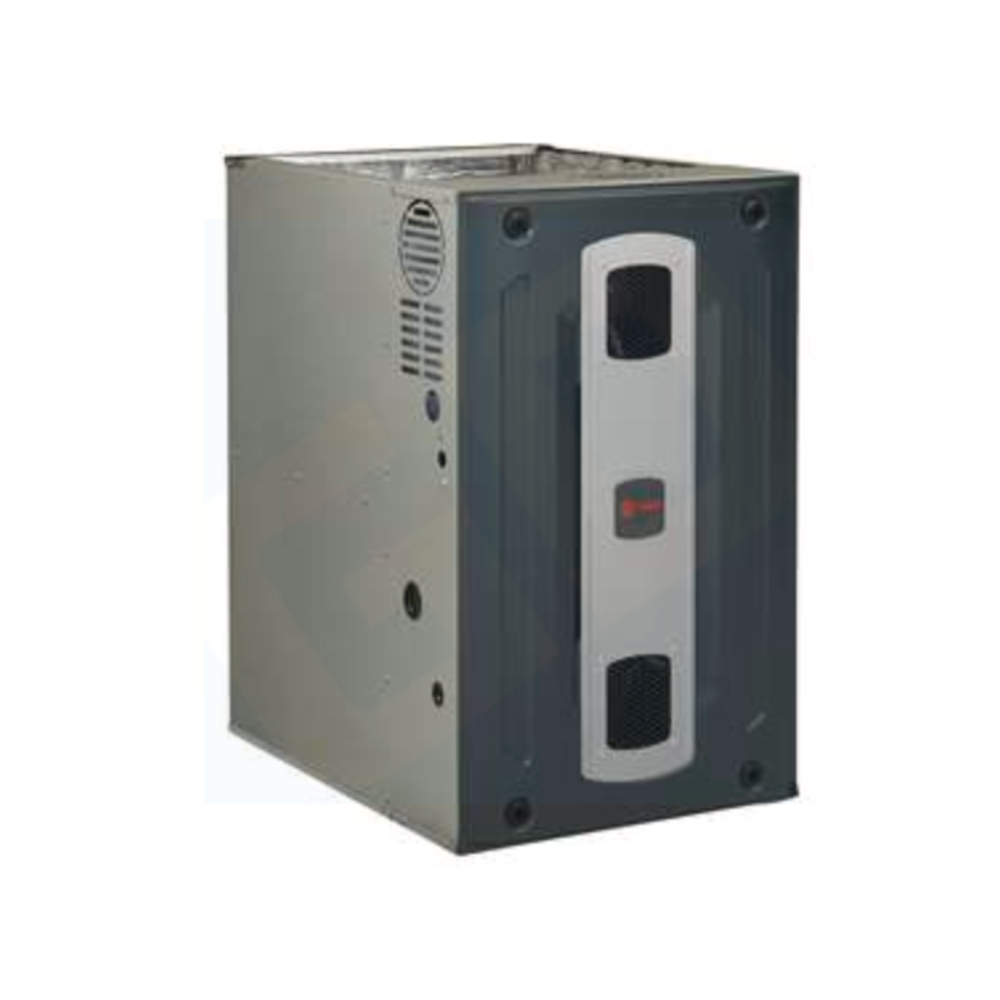

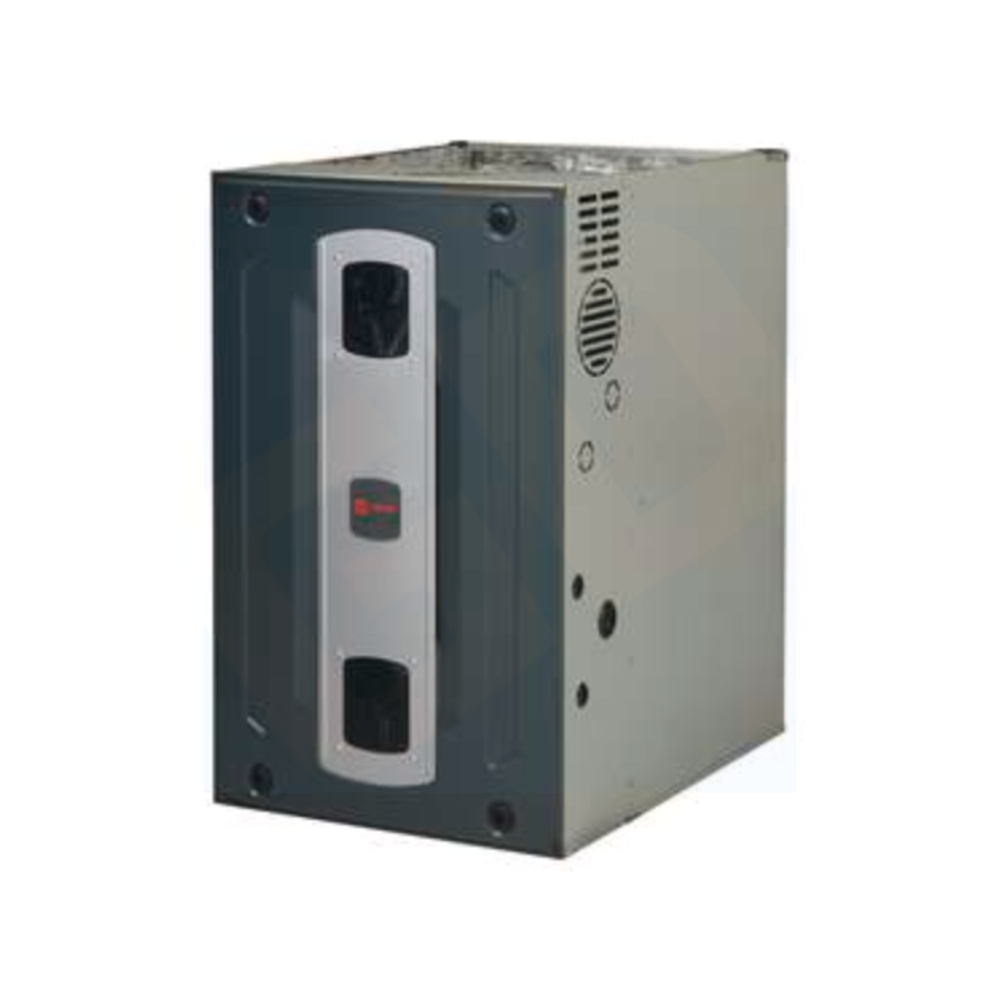

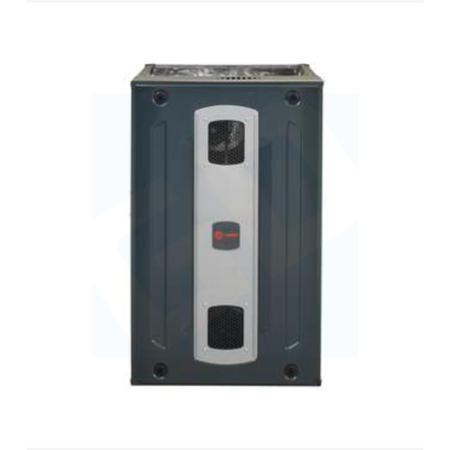

Trane S8X1B060M4PSCA is a 60,000 BTU single-stage gas furnace with 80% AFUE efficiency, ECM blower motor, and durable aluminized steel heat exchanger. Designed for multi-position installation, it delivers reliable, consistent residential heating.

Unit Type: Gas Furnace
Product Line: S8X1
Operating Mode: Cooling & Heating
System Capacity: 60,000 BTU
Line Set Size: 1/2"

Indoor Unit S8X1B060M4PSCA

Capacity up to 48,700 BTU
Room Cooling/Heating Capacity up to 2,500 sq ft

Features and Benefits
80% AFUE on S8X1 FURNACE MODELS
Lowers utility bills
ELECTRICALLY EFFICIENT
Efficient airflow design reduces electrical energy use
34 INCH TALL
Lighter, easier to move and fit into tight spaces like
short basements or tight closets
Works great with larger, high-efficiency coils
No knockouts
4–WAY MULTI-POISE
8 SKU’s — Upflow / Downflow / Horizontal Left /
Horizontal Right
Added application flexibility and reduction in
specification errors
AIRFLOW
At least 400 CFM/ton at 0.5 in. H20 external static
pressure
REGULATORY
All models are air tight; 1% or less air leakage as per
ASHRAE 193
Open vestibule design provides a full 34” high open
vestibule for ease of installation and service
DIMENSIONS
Width is industry standard: 14.5”
Depth remains approximately 28”
Cabinet is compatible with industry standard coils, as
well as, other accessories
INTEGRATED FURNACE CONTROL
Setup / Status / Diagnostics / Digital Display
No dip switches
Last six errors stored
Dry contact EAC and HUM connections
All Molex connections; no spade terminals
Low voltage labeled above and below
Rain shield over IFC keeps condensate off the control
TUBULAR ALUMINIZED STEEL HEAT EXCHANGER
VORTICA II BLOWER, DESIGNED EXCLUSIVELY
FOR THE S-SERIES FURNACE
Improved airflow efficiency
Durable, easy to clean, housing
Single piece belly band/ motor arm assembly
Blower deck has full-length rails for easy removal and
replacement, regardless of poise
FOUR–WAY MULTI-POISE (UPFLOW, DOWNFLOW,
HORIZONTAL LEFT AND RIGHT)
Easier to specify
Shipped ready to install (no conversion kits required)
Every model has at least two venting options

Airflow CFM: 552-891-1,123-1,344-1,479-1,583-1,654-1,818-1,926
Size W x D x H: 34" x 17.5" x 28.75"
Weight: 120 lbs
