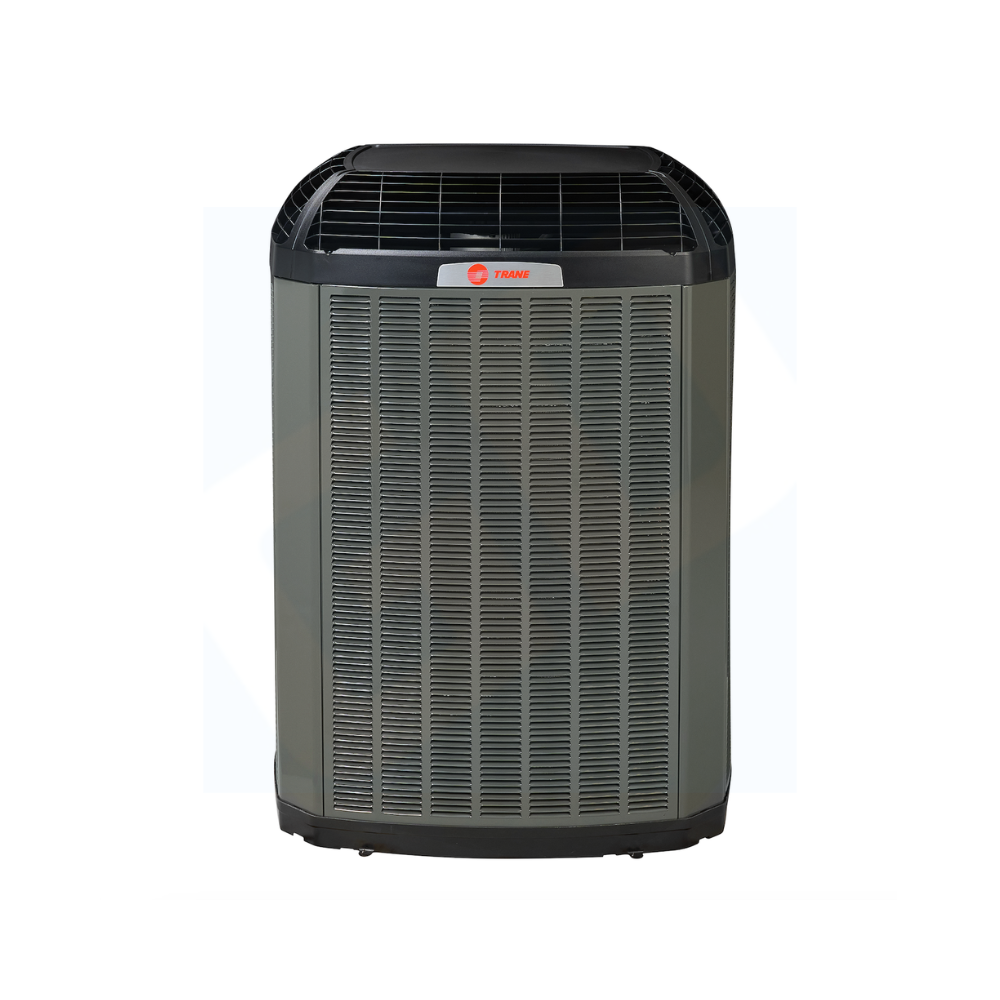

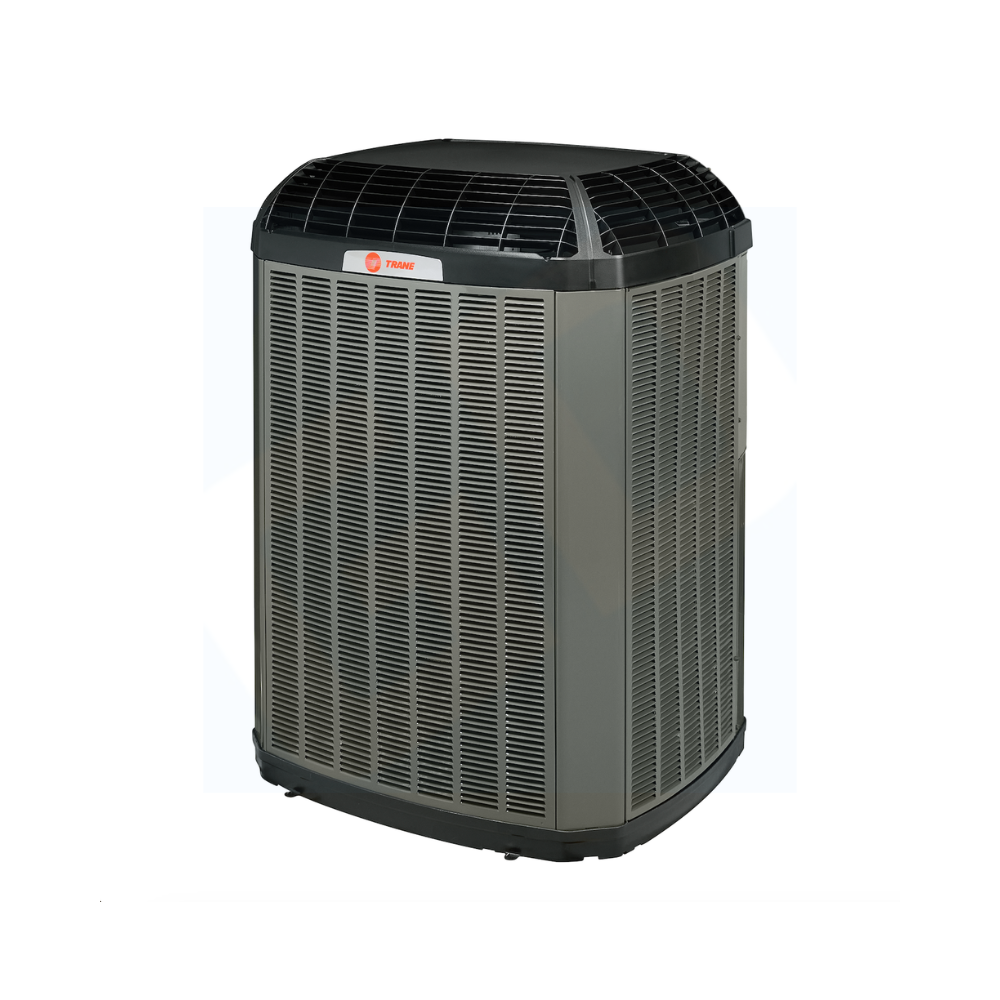

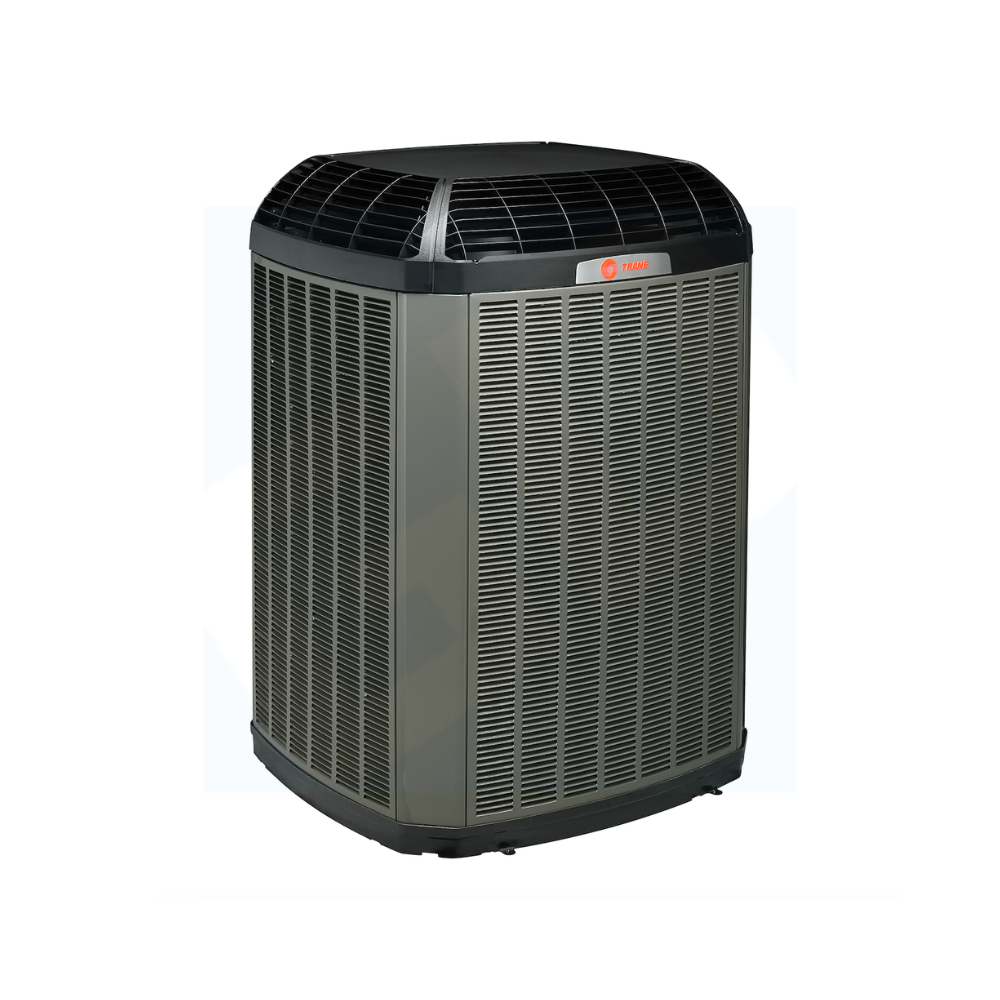

Trane 5TTV0X48A1000A is a 4-ton TruComfort™ variable speed air conditioner with inverter-driven scroll compressor, Spine Fin™ coil, and WeatherGuard™ II top. Using R-454B refrigerant and Link™ communication, it delivers powerful, quiet, high-efficiency cooling for larger residential homes.

Unit Type: Outdoor Unit
Product Line: XV20i
Operating Mode: Cooling Only
Low Ambient Heat: No
Number of Zones: 1
System Capacity: 4 Ton
Line Set Size: 7/8"" x 5/16"

Outdoor Unit 5TTV0X48A1000A

General
This unit is designed to operate at outdoor ambient temperatures from 55° F to 120° F in cooling. From
— 0° F to 66° F in heating (heat pumps only). Only AHRI approved indoor matches are approved for use
with these models.
Trane Link Air Conditioners
This outdoor unit contains the Trane Link Air Conditioners digital communication with Plug-n-Play set
up.
Casing
Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weather-resistant
powder paint on all louvered panels and prepaint on all other panels. Corrosion and weatherproof
CMBP-G30 DuraTuff™ base.
WeatherGuard™II Top Shields Unit.
Refrigerant Controls
Refrigeration system controls include condenser fan, compressor inverter drive and high and low
pressure switches. A factory supplied, field installed filter is standard.
Compressor
Inverter driven compressor with variable output capacities. Noise enclosure minimizes sound levels.
Compressor protections reduce operating speed and current draw to maintain operation while
protecting the compressor.
Condenser Coil
The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is
protected on all four sides by louvered panels.
Seacoast Shield.
Low Ambient Cooling
As manufactured, this system has built in freeze protection that will allow cooling operation below 55°F
but will reduce capacity or shut down completely to prevent operation under adverse conditions.
Comfort Control
This system must include a A/T HUI2360A200U thermostat and a TSYS2C60A2VVU system controller
to operate and is Link communicating only

Noise Level Cooling: 56-73 dB(A)
Noise Level Heating: 56-73 dB(A)
Size W x D x H: 55" x 35" x 38"
Weight: 265 lbs
Electrical: 208/230V
