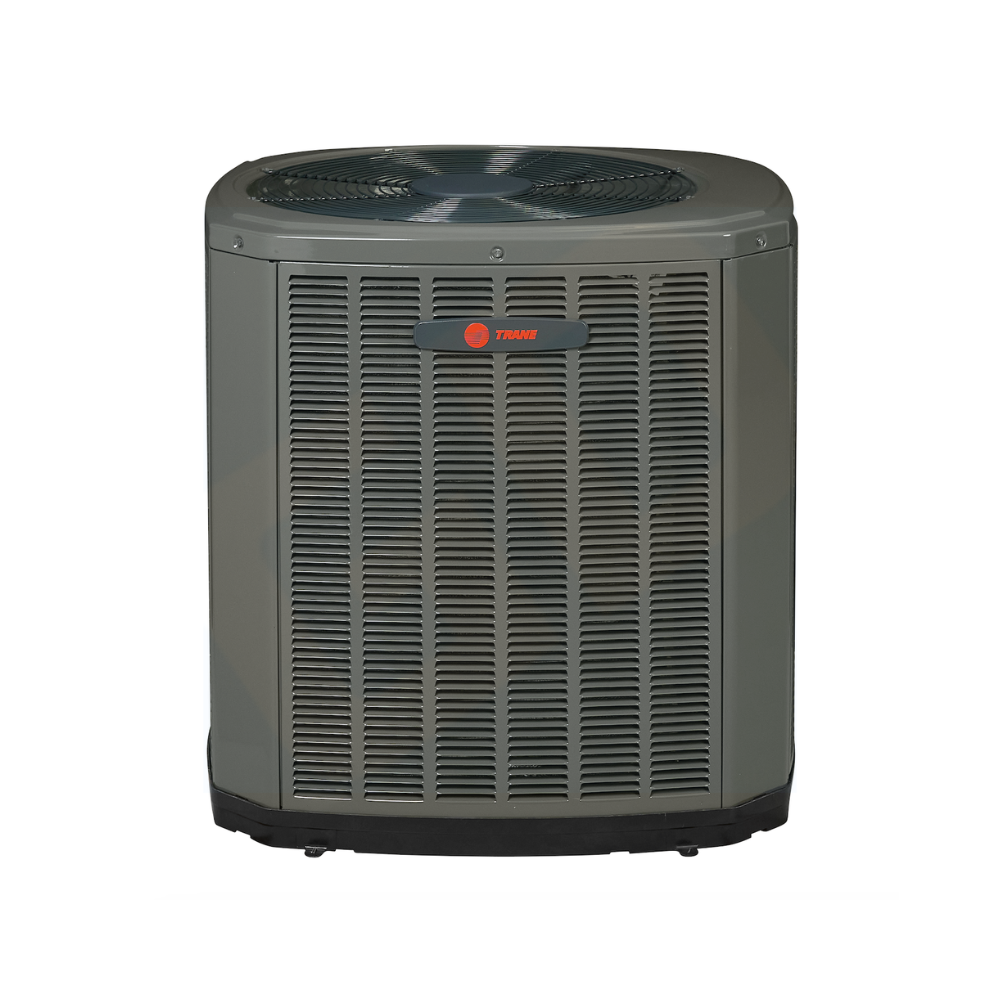

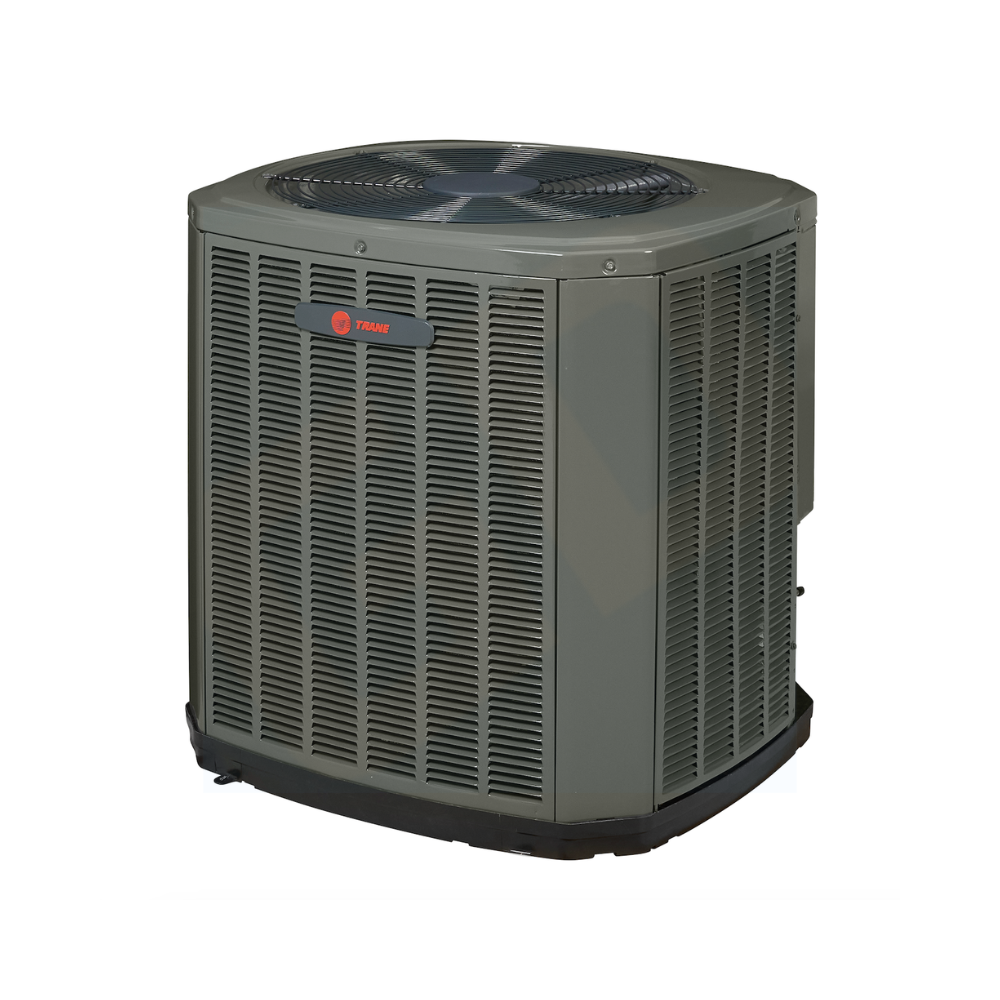

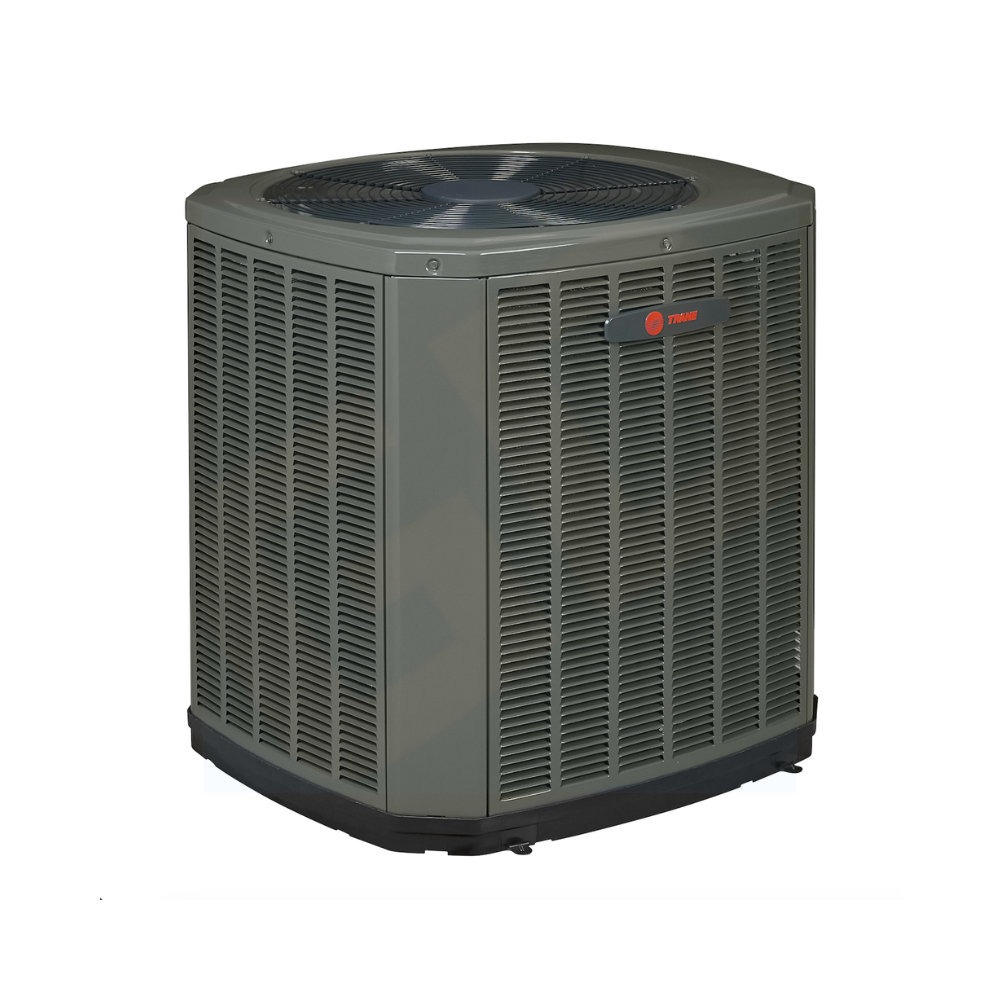

Trane 5TTR3036A1000A is a 3-ton, 13 SEER2 single-stage split system AC with a CLIMATUFF® scroll compressor and Spine Fin™ coil. Using R-454B refrigerant, it delivers efficient, reliable cooling, durable galvanized steel construction, and 73 dB(A) sound performance.

Unit Type: Outdoor Unit
Product Line: 5TTR30
Operating Mode: Cooling Only
Low Ambient Heat: Cooling Only
Number of Zones: 1
System Capacity: 3 Ton
Line Set Size: 3/4" x 5/16"

Outdoor Unit 5TTR3036A1000A

General
The outdoor condensing units are factory charged with the system charge required for the outdoor
condensing unit, ten (10) feet of tested connecting line, and the smallest rated indoor evaporative coil
match. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling
capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified.
The unit is certified to UL 60335-2-40. Exterior is designed for outdoor application.
Casing
Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant
powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt
spray test.
Refrigerant Controls
Refrigeration system controls include condenser fan, compressor contactor and low and high pressure
switches. A factory supplied, field installed liquid line drier is standard.
Compressor
The compressor features internal over temperature and pressure protection. Other features include:
Centrifugal oil pump and low vibration and noise.
Condenser Coil
The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all
four sides by louvered panels.
Low Ambient Cooling
As manufactured, this system has a cooling capacity to 55°F. The addition of an evaporator defrost
control permits operation to 40°F. The addition of an evaporator defrost control with TXV permits low
ambient cooling to 30°F.
The addition of the BAYLOAM107A low ambient kit permits ambient cooling to 20°F.
Thermostats – Cooling only and heat/cooling (manual and automatic change over). Sub-base to match
thermostat and locking thermostat cover.

Noise Level Cooling: 73 dB(A)
Size W x D x H: 34" x 30" x 33"
Weight: 161 lbs
Electrical: 208/230V
