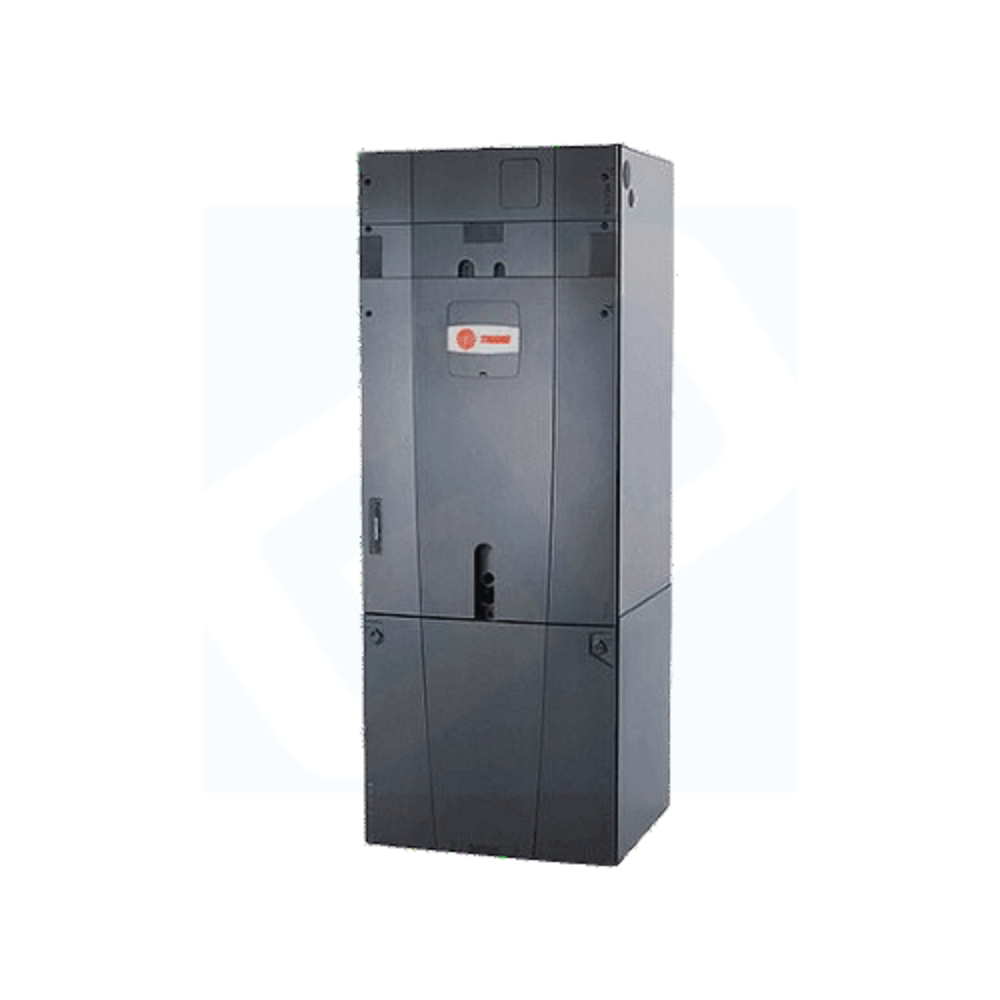

The Trane 5TAMXC05AV31D is a 42,000 BTU 3.5-ton Hyperion™ variable-speed communicating air handler designed for efficient residential HVAC systems. It features a Vortica™ ECM blower motor, Trane Link® communication, and a fully insulated cabinet for quiet operation and reliable indoor comfort.

Unit Type: Air Handler
Product Line: TAMX
Operating Mode: Cooling & Heating
Number of Zones: 1
System Capacity: 42,000 BTU
Line Set Size: 7/8" x 3/8"

Indoor Unit 5TAMXB05AV21D

Rated Capacity Range 36,000 - 48,000 BTU
Room Cooling/Heating Capacity up to 1,750 sq ft

Unique cabinet design
– 2% or less air leakage
– Precision applied — durable door seals
– Specially designed air seal around refrigerant, condensate and conduit connections
– Double wall foamed cabinet system
– R-4.2 Insulating Value (Avg Insulating Value R-8.2)
– No loose fiber design
– Smooth cleanable interior design
– Sweat eliminating design
– Composite cabinet doors
– Water proof cabinet design
– Integrated horizontal drain pans
– Modular cabinet
• Multi-position: upflow, downflow, horizontal left, or horizontal right
• Link™ Communicating or 24v Control
• Side return option (sold as accessory)
• Pre-marked Conduit Connection Locations
• Alert code notification
• Low voltage terminal connection point
• Phillips head door fasteners
• Vortica® blower with polarized plug connections and integrated slide deck for easy removal
• Aluminum coil with integrated slide deck for easy removal and polarized plug connections on coil
EEV
• Patented enhanced coil fin
• Electronic Expansion Valve (EEV) with low ambient and low superheat compressor protection
• Slide in electric heaters with polarized plug connections (sold as accessory)
• Slide in hot water coils with polarized plug connections (sold as accessory)
• UVC light kit with safety switch and polarized plug connections (sold as accessory)
• Labeled panels and connections
• Molded in 1-in. standard filter rail
• Variable speed ECM motor
• Soft start fan motor operation
• Comfort R™ mode
• Built in fan delay modes
• Maximum width of 23.5-in.
• Compact 20.8-in. depth with doors removed
• Fused 24v power
• 5 Year Warranty
• 10 Year Warranty Registered
• Optional Extended Warranty Available

Airflow CFM 1.5 Tons: 290-370-400-450
Airflow CFM 2 Tons: 290- 370-400-450
Airflow CFM 2.5 Tons: 290-370-400-450
Airflow CFM 3 Tons: 290-370-400-450
Size W x D x H: 61-3/4" x 23-1/2" x 21-3/4"
Weight: 164 lbs
