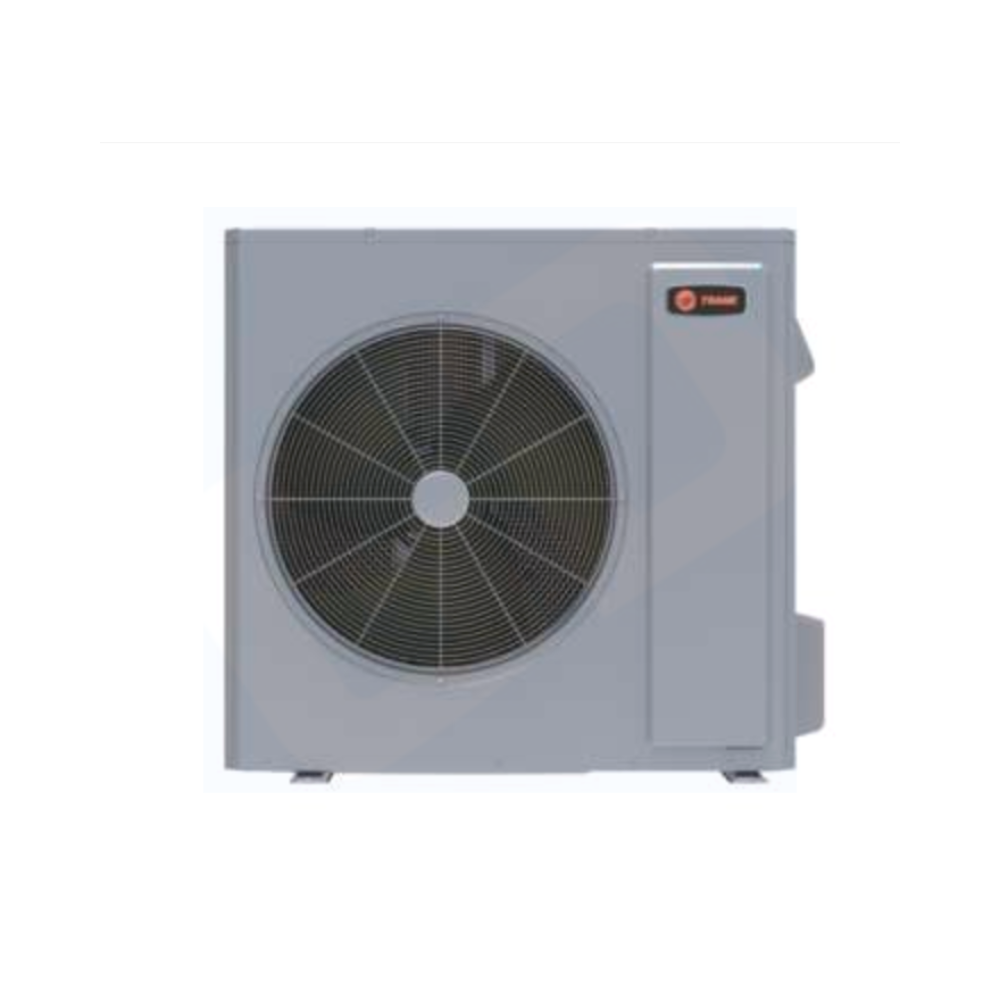

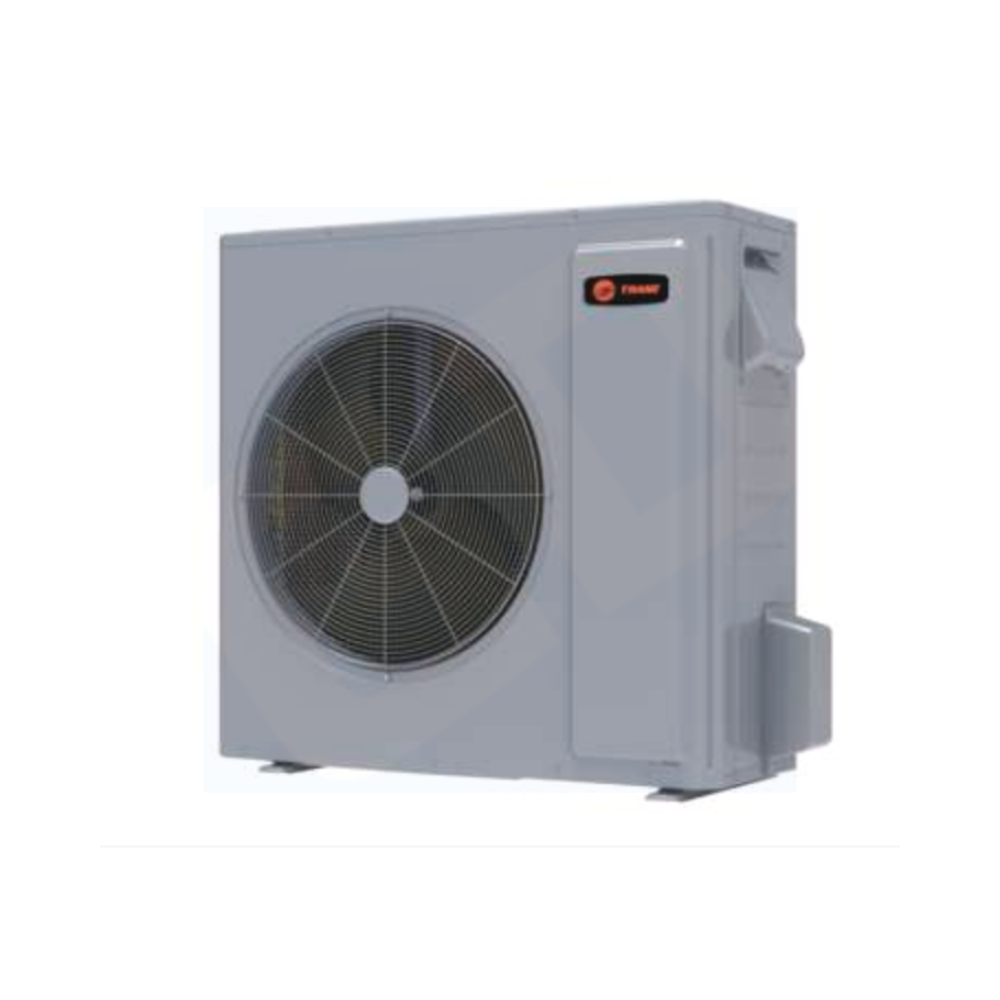

Trane 5HCL5036B1000A is a 3-ton inverter-driven side discharge heat pump using R-454B refrigerant. It features a variable-speed compressor, quiet operation (~61 dBA), plate-fin coil, and compact, durable cabinet for efficient, flexible residential heating and cooling.

Unit Type: Outdoor Unit
Product Line: 5HCL
Operating Mode: Cooling & Heating
Number of Zones: 1
System Capacity: 36,000 BTU
Line Set Size: 3/4" x 3/8"

Outdoor Unit 5HCL5036B1000

SEER2 15.0
Room Cooling/Heating Capacity up to 1,500 sq ft

AHRI standard 210/240 rating conditions:
• Cooling: 80°F DB; air entering indoor coil: 67°F WB; air entering outdoor coil: 95°F DB
• High temperature heating: 47°F DB; air entering outdoor coil: 43°F WB; entering indoor coil: 70°F
DB
• Low temperature heating: 17°F DB; air entering outdoor coil: 15°F WB; air entering indoor coil: 70°F
DB
• Rated indoor airflow for heating is the same as for cooling.
AHRI standard 270 rating conditions:
The noise rating numbers are determined with the unit in cooling operation. Standard Noise Rating
number is at 95°F outdoor air.

Noise Level Cooling & Heating: 61 dB(A)
Size W x D x H: 37.8" x 39" x 14.6"
Weight: 187.4 lbs
Electrical: 208/230V
