Description

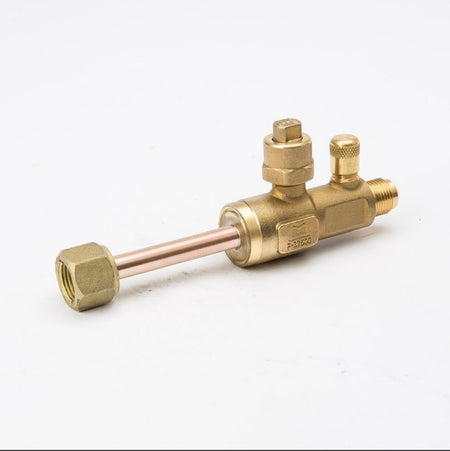

Multi Split Male x Female Flare ball valve with insulation
Mueller Refrigeration

General Information

Multi Split Male x Female Flare ball valves are designed to provide a variety of configurations to allow total flexibility for Variable Refrigerant Zoning Systems. Sizes ranging from 1/4" through 5/8" connections in both flare and solder configurations are fully ported to ensure no pressure drop during system operation, while providing complete isolation of individual branches and circuits when closed

Package Includes

1/4" Ball Valve
Insulation
Zip-Ties
Installation Instruction

Performance

- Design Pressure (DP) / Maximum abnormal pressure (MAP): Up to 775 psig, 53 bar
- Continuous operating temperature (COT): -40°F/300°F, -40°C/149°C
- Full port construction to match line size ID
- Internally equalized ball design
- Rupture-proof encapsulated stem
- MCM™ Seal Technology

Documentation

Multi_Split_Ball_Valves_Unibody_Female_x_Male_Flare.pdf
