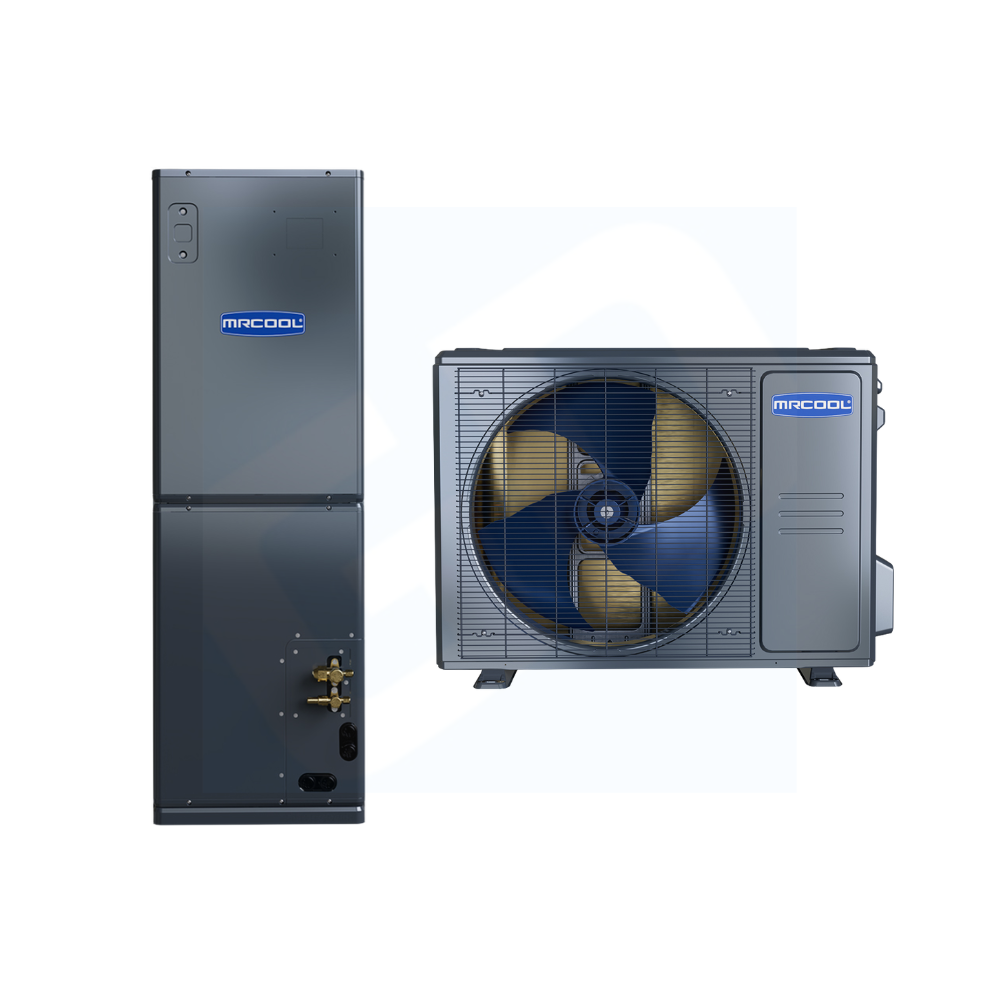

The MRCOOL® Universal® 5th Gen 30,000 BTU Central Heat Pump System provides efficient whole-home heating and cooling with inverter technology, R-454B refrigerant, a multi-position air handler, and up to 18.6 SEER2 efficiency for reliable, year-round comfort.

Unit Type: Single Zone
Product Line: Universal Series
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: 1
System Capacity: 30,000 BTU
Line Set Size: 3/8" x 3/4"
WiFi Enabled: Yes
WiFi Built In: Yes

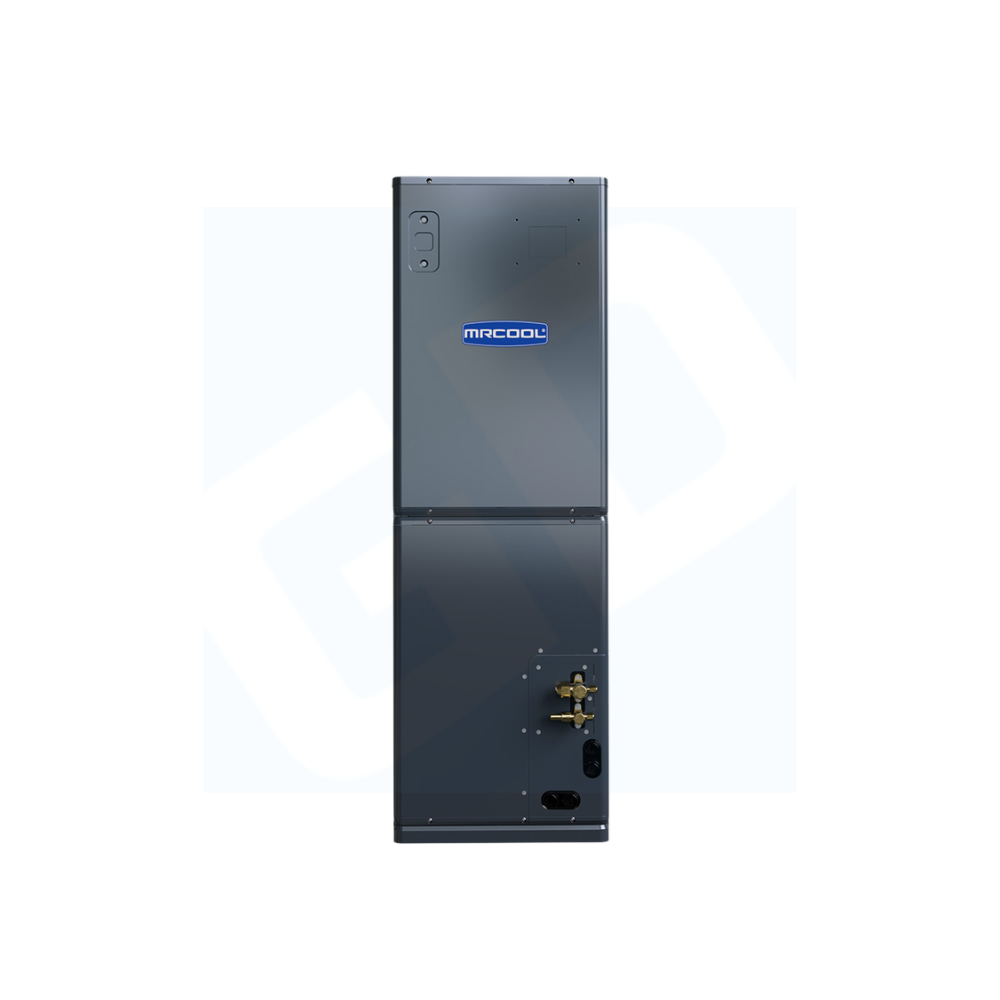

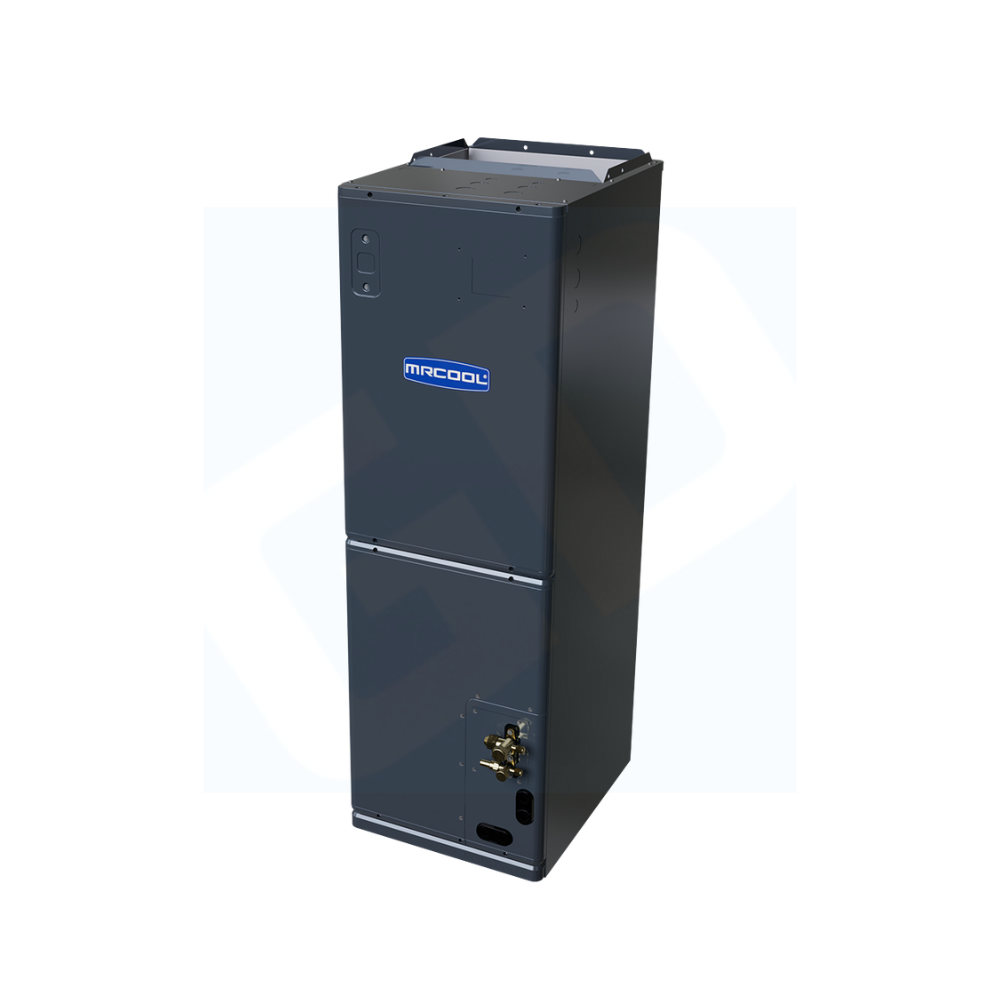

Indoor Unit UAH18030-O

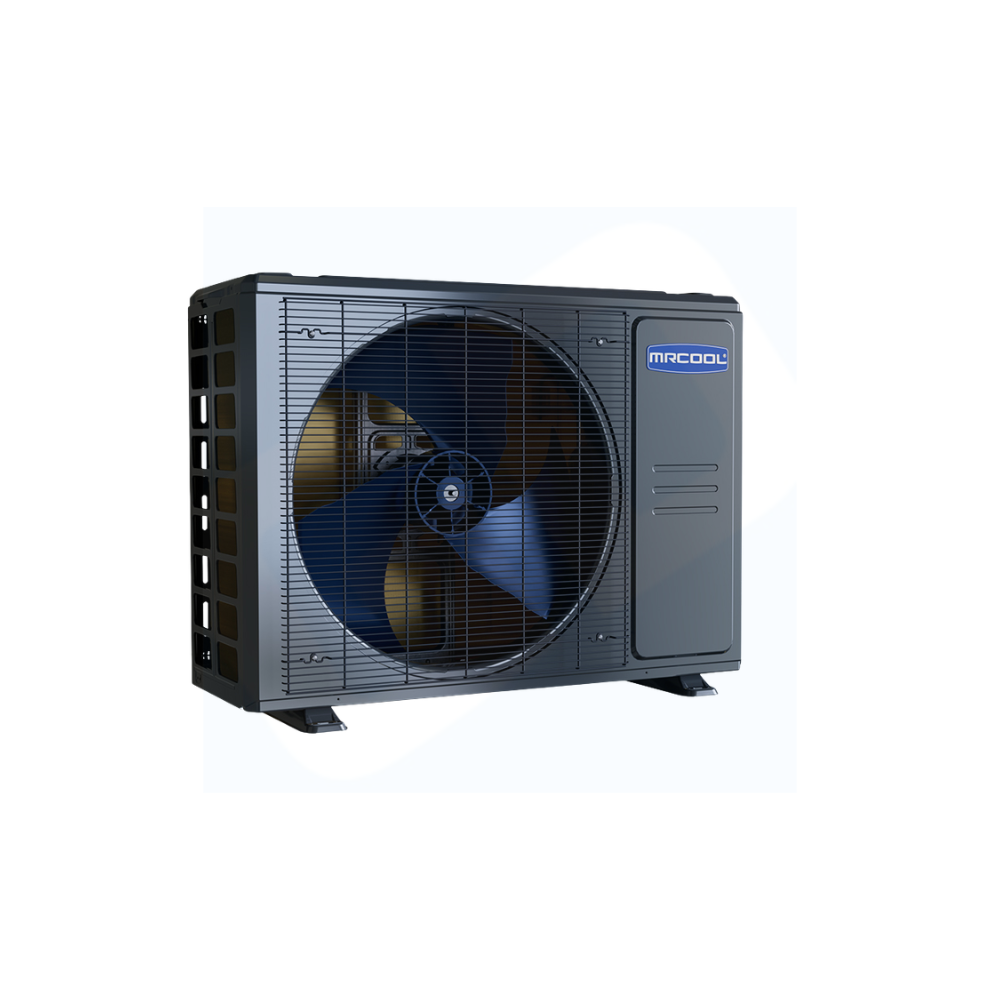

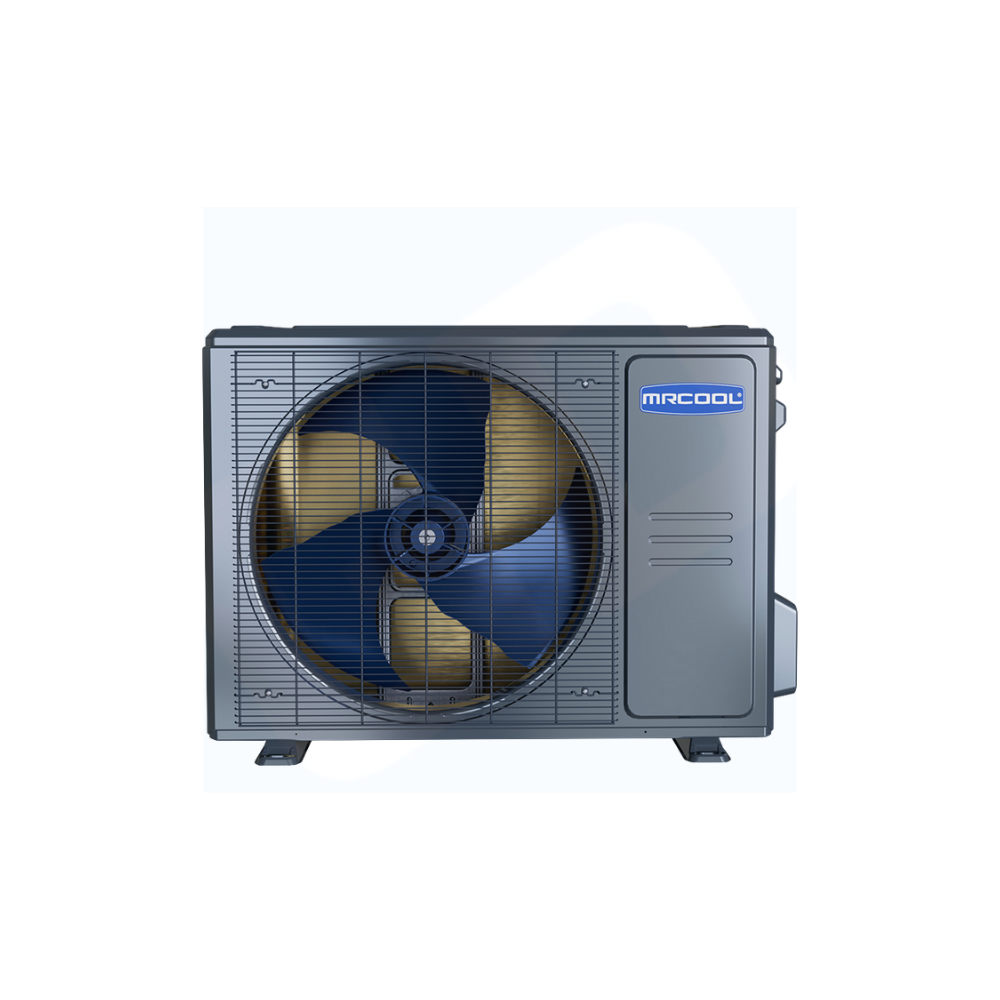

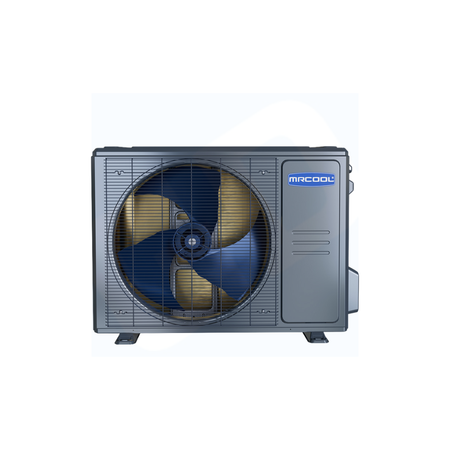

Outdoor Unit UHP18030-O

Cooling Capacity up to 30,000 BTU
Heating Capacity up to 33,000 BTU
SEER2 17.2
EER2 12
HSPF2 10.8
Room Cooling/Heating Capacity up to 1,250 sq ft

FEATURES
* 30,000 BTU (2.5 Ton) heating and cooling capacity
* Ideal for whole-home ducted HVAC applications
* Up to 18.6 SEER2 energy efficiency
* High-efficiency inverter-driven heat pump technology
* Eco-friendly R-454B low Global Warming Potential (GWP) refrigerant
* Multi-position air handler for upflow, downflow, and horizontal installation
* Variable-speed ECM blower motor
* Variable-speed inverter compressor for consistent comfort and lower energy usage
* Durable 100% aluminum M-shaped evaporator coil
* Quiet indoor and outdoor operation
* Compatible with MRCOOL® No-Vac® Quick Connect® line sets (sold separately)
* Compatible with traditional field-installed refrigerant piping
* Optional electric heat kit compatibility for auxiliary and emergency heat
* Designed for use with existing ductwork
* Replaceable 12 x 20 x 1 air filter
* Maximum line set length up to 164 ft.
* 208/230V, single-phase power
* Heating and cooling operation
* Factory-charged outdoor condenser
* Corrosion-resistant outdoor coil for enhanced durability
* Ideal for closets, attics, basements, crawl spaces, and utility rooms
* AHRI certified performance
* 10-year parts warranty (with online registration)
* 2-year limited labor warranty (with online registration)

Airflow CFM: 998.8-894.7-806.4-712.2
Noise Level: 49-47-45.5-31.5
Size W x D x H: 21.5" x 53.98" x 17.52"
Weight: 149.25 lbs
