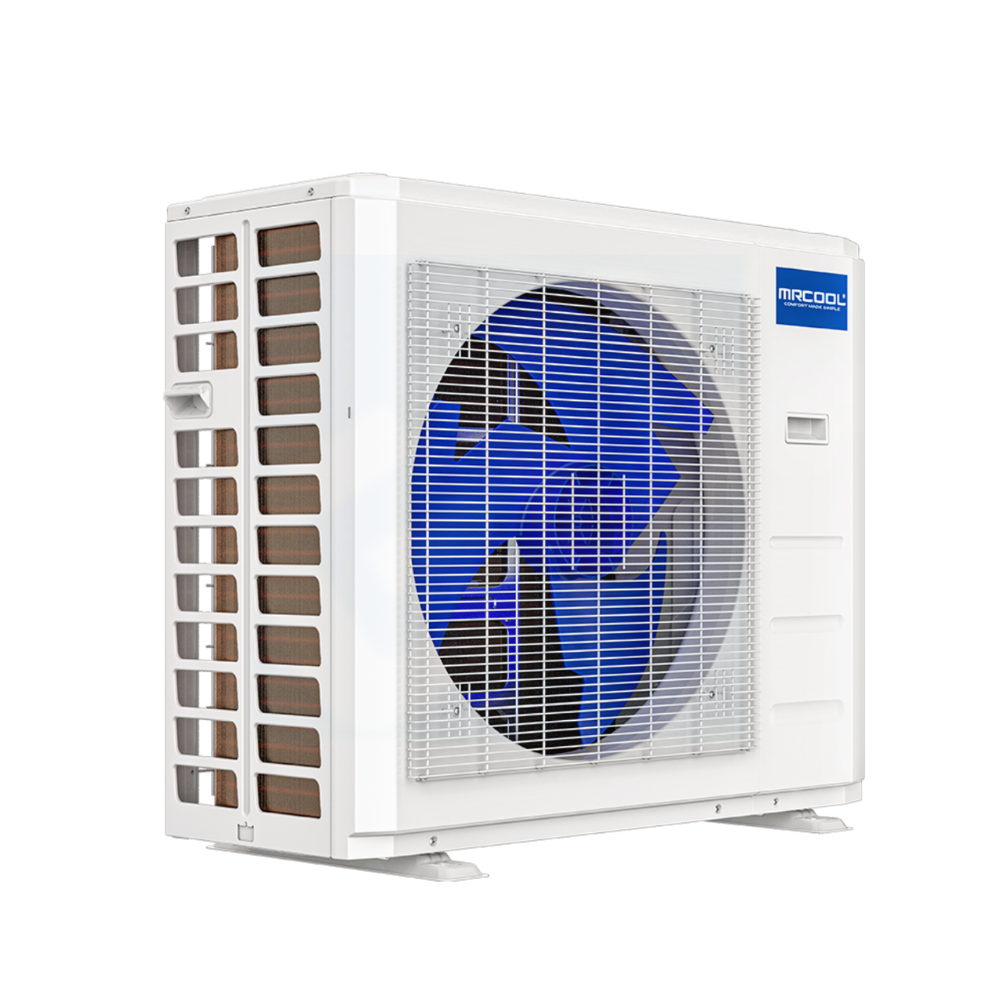

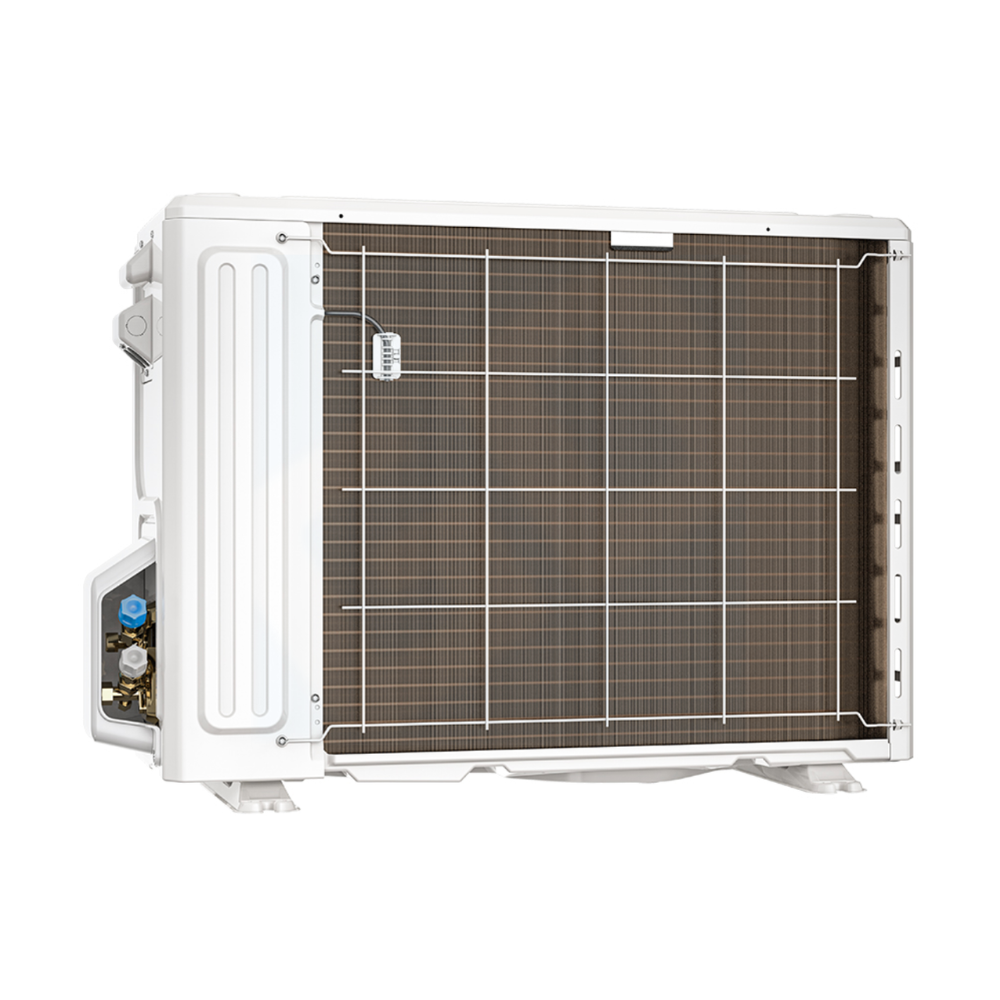

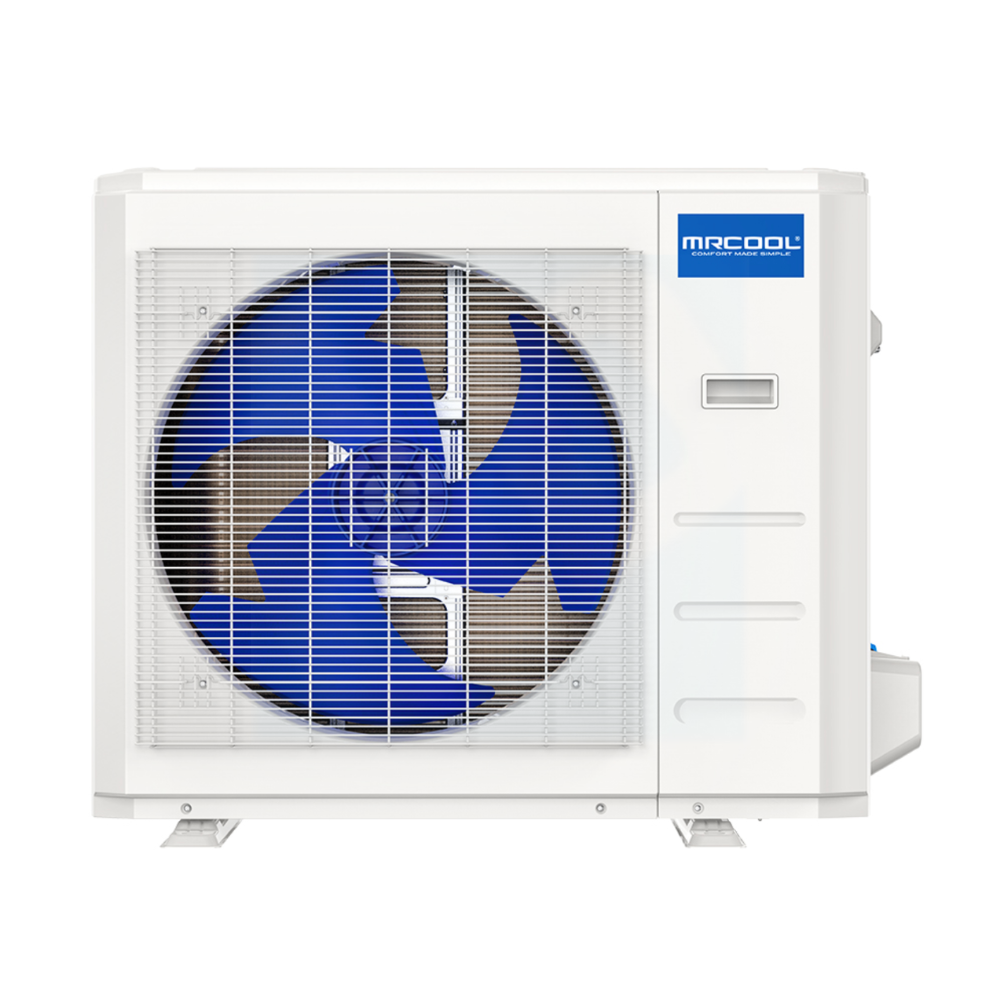

The MRCOOL® DIY® Hyper Heat DIYHH-18-HP-C-230D25-O is an 18,000 BTU single-zone condenser with 22.7 SEER2 efficiency, R-454B refrigerant, Hyper Heat performance to -22°F, Wi-Fi connectivity, and a 25 ft. Quick Connect® line set for easy DIY installation. Compatible with select DIY indoor units.

Unit Type: Ductless Mini-Split Condenser
Product Line: DIY 5th Gen Hyper Heat
Operating Mode: Cooling & Heating
Low Ambient Heat: N/A
Number of Zones: Single
System Capacity: 18,000 BTU
Line Set Size: 1/4" x 1/2"

Outdoor Unit DIYHH-18-HP-C-230D25-O

Cooling Capacity up to 18,000 BTU
Heating Capacity up to 18,000 BTU
SEER2: 21.2
EER2: 12.5
HSPF2: 11

FEATURES
* 18,000 BTU single-zone Hyper Heat outdoor condenser
* Compatible with MRCOOL® DIY® Hyper Heat 5th Generation indoor units
* Supports spaces up to approximately 800 sq. ft.
* Hyper Heat technology provides heating in temperatures as low as **-22°F**
* 22.7 SEER2 cooling efficiency
* 9.5 HSPF2-4 heating efficiency
* Uses environmentally friendly R-454B refrigerant
* Includes 25 ft. pre-charged Quick Connect® line set
* True DIY installation with no vacuum pump or refrigerant charging required
* Operates on 208/230V power
* Compatible with wall-mounted air handlers and OuttaSight® ceiling cassette indoor units
* Built-in Wi-Fi with SmartHVAC app control
* Compatible with Amazon Alexa and Google Assistant
* Gold Fin® corrosion-resistant condenser coating
* Variable-speed inverter compressor for efficient operation
* Quiet outdoor operation
* Energy-saving inverter technology
* DIYPRO® cable included
* Durable weather-resistant outdoor cabinet
* Designed for year-round heating and cooling in cold climates
* Ideal for living rooms, family rooms, garages, workshops, basements, and home additions
* 7-year registered compressor warranty
* 5-year registered parts warranty
