The MRCOOL® DIY® 27K BTU multi-zone condenser delivers efficient heating and cooling for up to 4 rooms (1,000–1,200 sq ft) with 23 SEER2 performance, smart controls, R-454B refrigerant, and true DIY installation.

Unit Type: Ductless Mini-Split Condenser
Product Line: DIY 5th gen Multi-Zone Mini-splits
Operating Mode: Cooling & Heating
Low Ambient Heat: N/A
Number of Zones: Multi
System Capacity: 27,000 BTU
Line Set Size: 1/4" x 3/8"

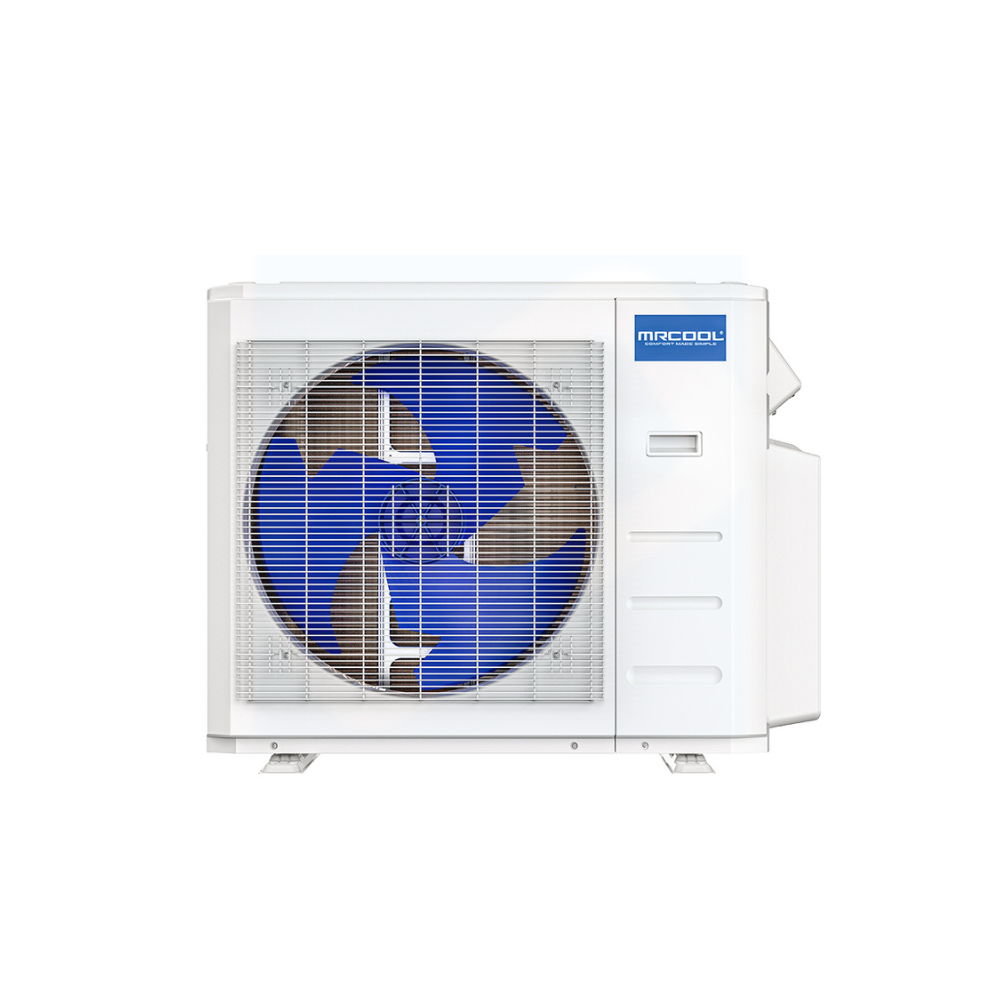

Outdoor Unit DIY-MULTI4-27HP230D-O

Cooling Capacity up to 26,000 BTU
Heating Capacity up to 26,000 BTU
SEER2 23
EER2 12
HSPF2 9.5

Intertek listed 5031495
Easy DIY installation
Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Noise Level Cooling: 61 dB(A)
Size W x D x H: 16.14" x 31.89" x 37.24"
Weight: 140 lbs
Electrical: 208/230V, 25 A
Max Line Set Length: 221 ft
