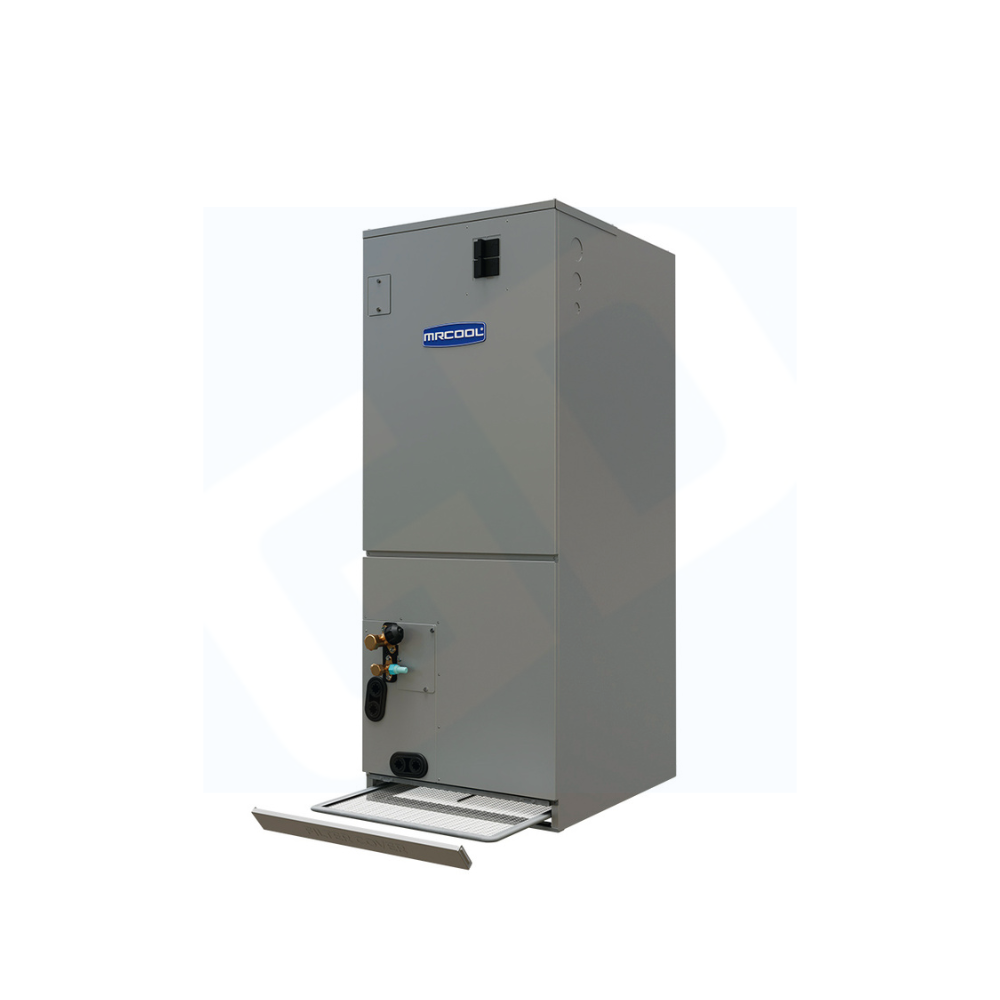

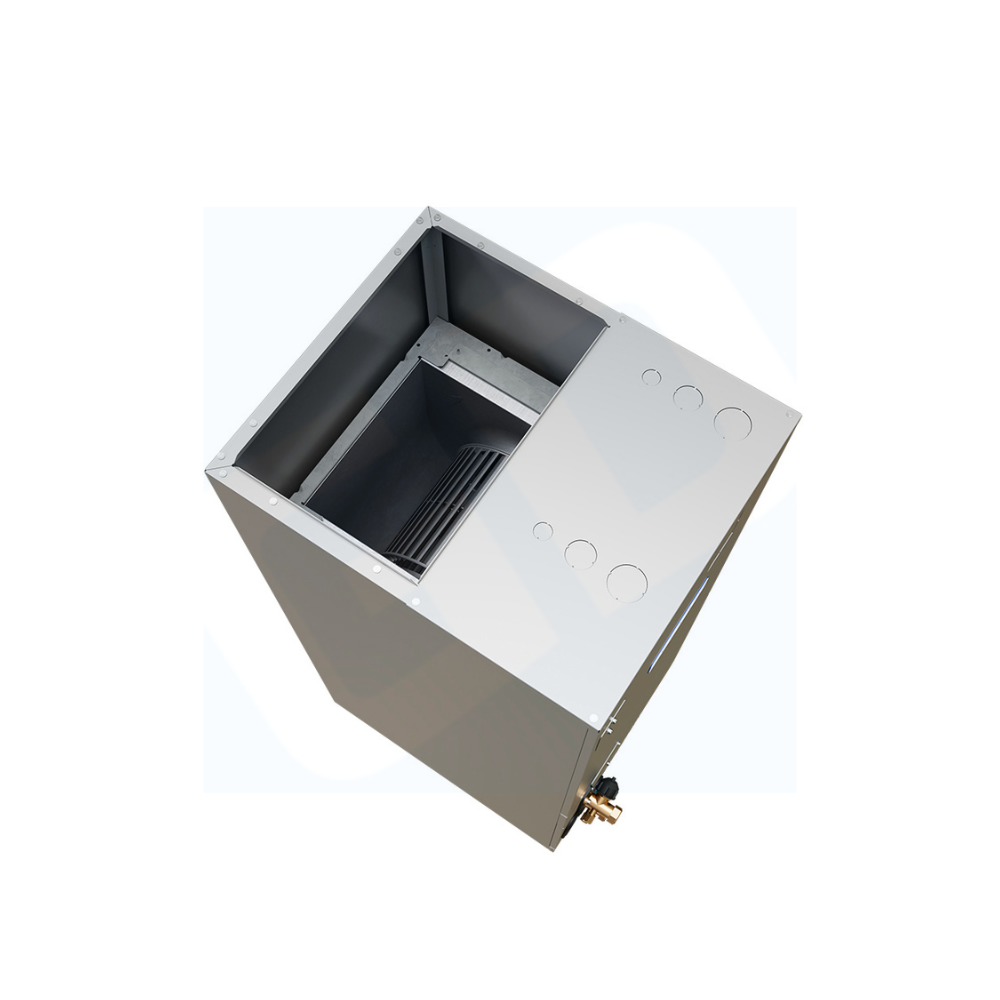

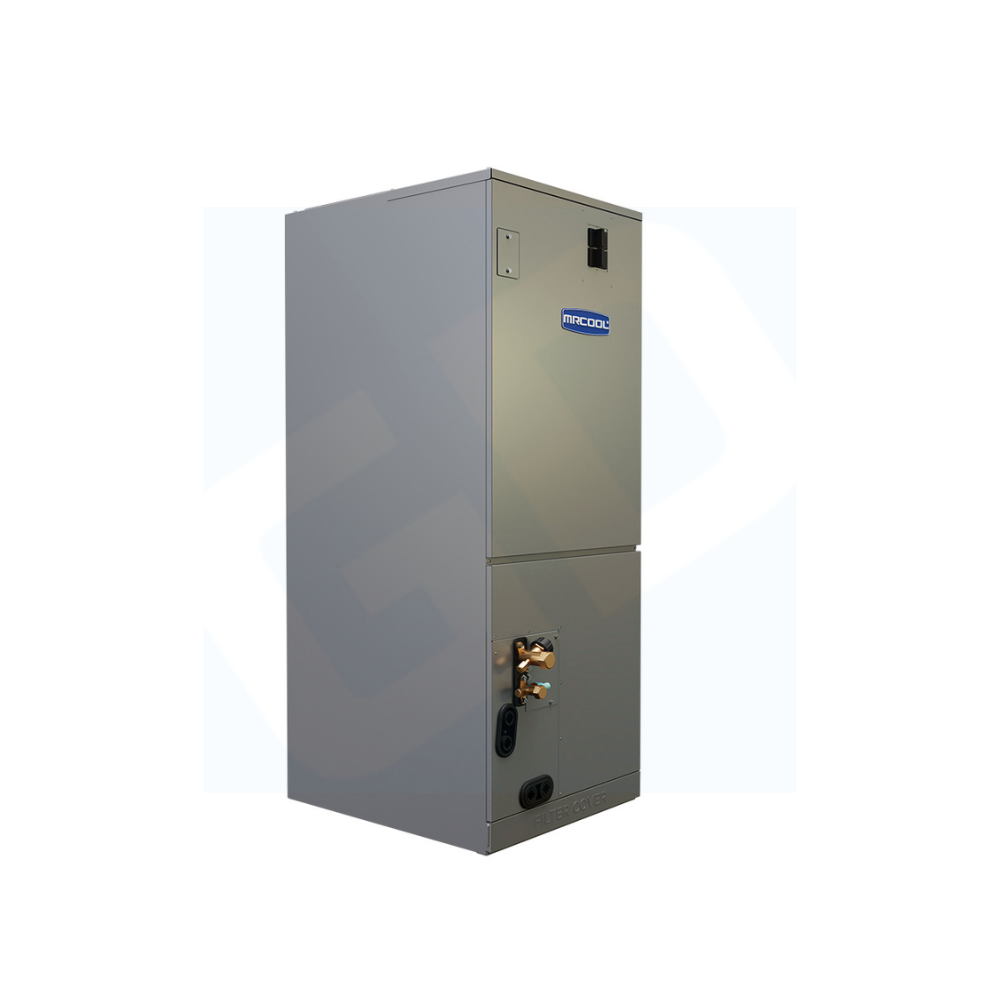

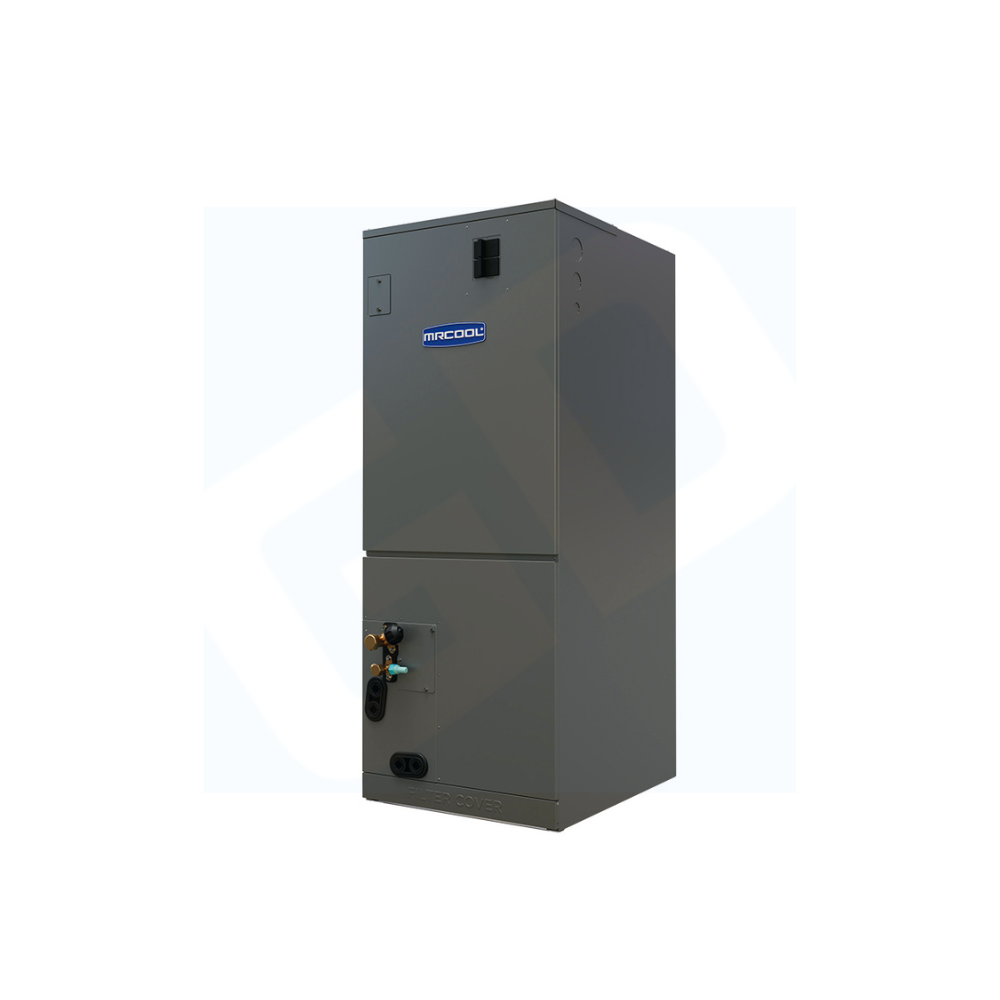

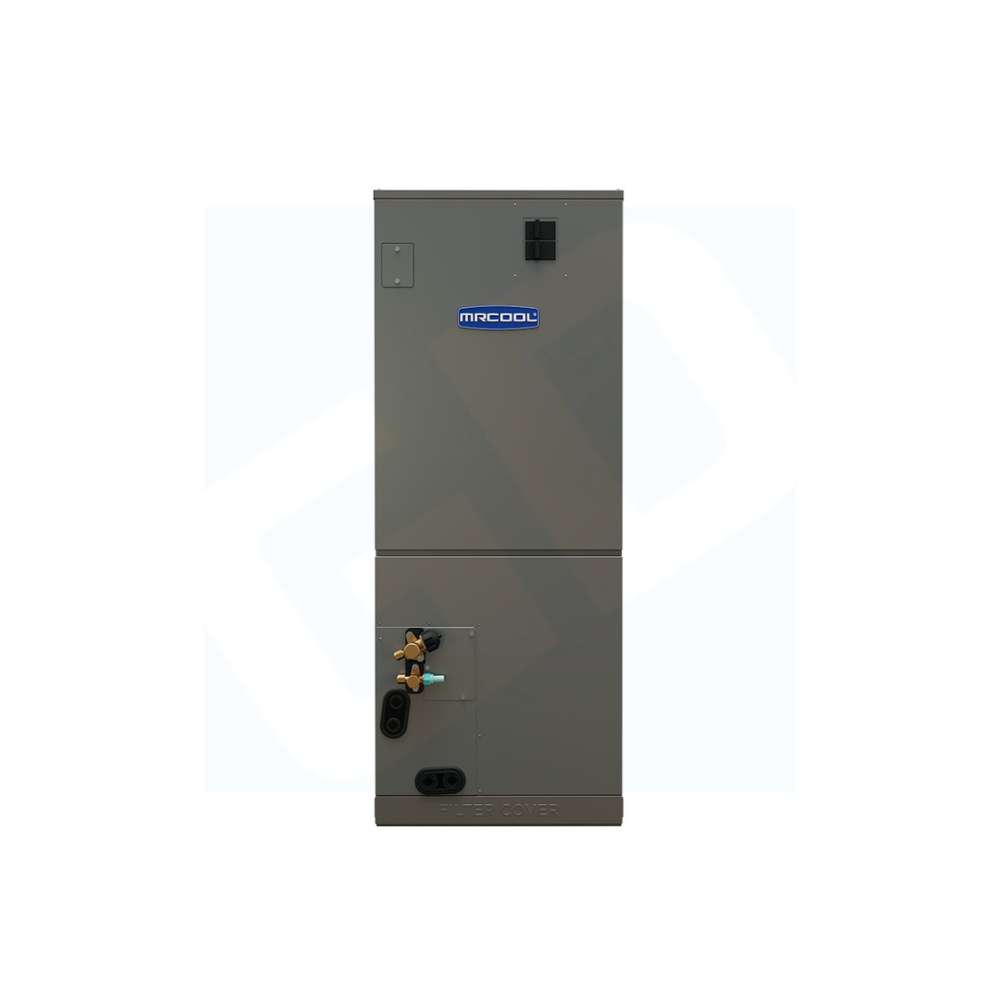

The MRCOOL® DIY® 5th Gen 24,000 BTU Hybrid Air Handler delivers efficient ducted heating and cooling for homes with existing ductwork. Compatible with DIY® 5th Gen condensers, it features flexible multi-position installation, R-454B refrigerant compatibility, and optional electric heat.

Unit Type: Indoor Unit
Product Line: DIY Hybrid Air Handler
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: N/A
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes
WiFi Built In: Yes

Indoor Unit DIY-24-HP-MUAH-230D25-O

Cooling Capacity up to 24,000 BTU
Heating Capacity up to 24,000 BTU
Room Cooling/Heating Capacity up to 1,050 sq ft

FEATURES
* 24,000 BTU (2 Ton) ducted hybrid air handler
* Designed for homes with existing ductwork
* Compatible with MRCOOL® DIY® 5th Gen single-zone outdoor condensers
* Compatible with MRCOOL® DIY® 5th Gen multi-zone outdoor condensers
* Uses eco-friendly R-454B refrigerant
* Multi-position installation (upflow, downflow, horizontal left, or horizontal right)
* Durable painted galvanized steel cabinet

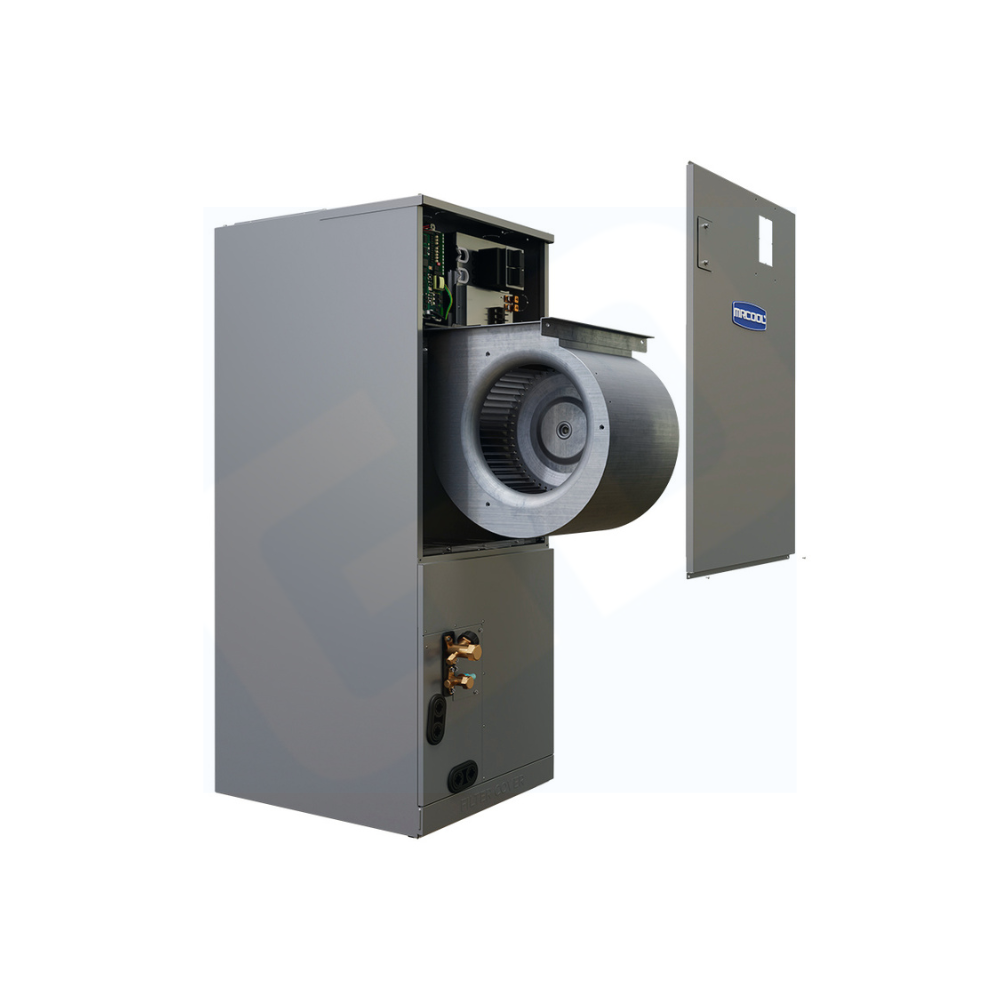

* High-efficiency ECM blower motor
* Integrated self-diagnostics control board with error code display
* Quiet operation for enhanced indoor comfort
* Compatible with pre-charged Quick Connect® line sets when paired with a compatible condenser

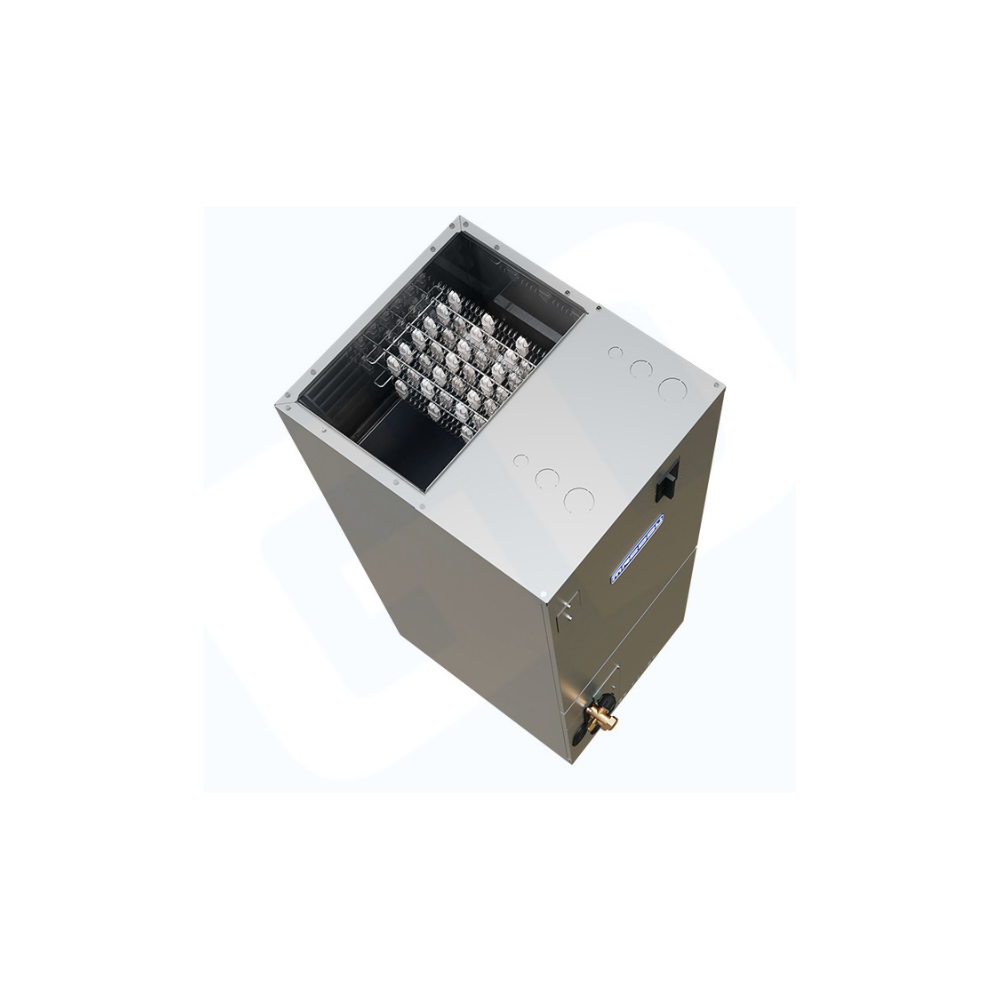

* Optional electric heat kit compatibility for auxiliary and emergency heat
* Designed for closets, attics, basements, crawl spaces, and utility rooms
* Suitable for spaces up to approximately 1,000 sq. ft. (when paired with a compatible outdoor unit)
* Compatible with MRCOOL® SmartHVAC app when paired with a compatible condenser
* Works with Amazon Alexa and Google Assistant when paired with a compatible condenser
* Flexible installation for new construction and replacement applications
* Factory-tested for dependable performance
* Designed for year-round heating and cooling applications
* Installation documentation included

Airflow CFM: 824-759.3-694.5-629.8
Noise Level dB(A): 29-42.5-44
Size W x D x H: 21.02" x 45" x 17.52"
Weight: 104.72 lbs
