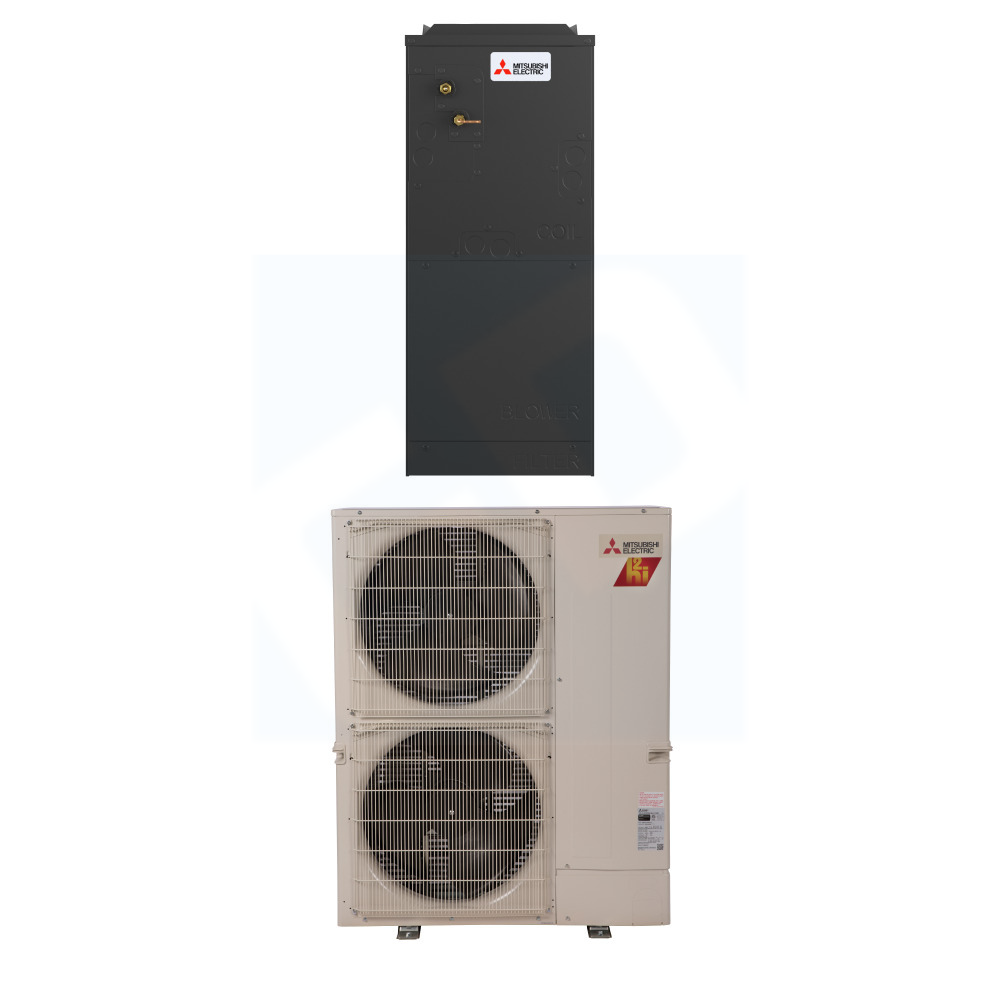

The Mitsubishi SVZ-AP48NL & SUZ-AK48NLHZ delivers 48,000 BTU cooling and 60,000 BTU heating with Hyper-Heating INVERTER® (H2i®) technology, providing full heat to 5°F and reliable operation to -13°F, with restart at -22°F. Features include Blue Fin protection, base pan heater, quiet operation, and flexible installation.

Unit Type: Single Zone
Product Line: S-Series AP
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: 1
System Capacity: 48,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Indoor Unit SVZ-AP48NL
Outdoor Unit SUZ-AK48NLHZ

Cooling Capacity up to 52,000 BTU
Heating Capacity up to 60,000 BTU
SEER2 18.1
EER2 9.4
HSPF2 8.5
Heating Minimum Temp -22 F
Cooling Minimum Temp N/A
Room Cooling/Heating Capacity up to 2,000 sq ft

INDOOR UNIT FEATURES
• Unique blow through design: Unique blow through design allows simple coil cleaning when the blower is removed
• Selectable external static pressure: Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
• Positive pressure cabinet: Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG
• Optional humidifier control and ERV control
• Optional electric heat kit: Optional electric heat kit for additional heat capacity
• Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
• Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building.
• Multi-position installation: Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is
recommended for proper management of condensate to prevent water blow-off in certain conditions
• Fiberglass free insulation: 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency
• Enclosed ECM motor: Highly efficient totally enclosed ECM motor
• Ducted air handler: Ducted air handler provides a solution to cool and heat large zones
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Built-in base pan heater
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• Hyper-Heating INVERTER® (H2i®): 100% heating capacity down to 5° F with guaranteed heating down to -13° F.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.

Airflow Cooling CFM, Dry: 1,040-1,262-1,485
Airflow Heating CFM, Dry: 1,040-1,262-1,485
Noise Level dB(A), Cooling: 45-48-52
Noise Level dB(A), Heating: 45-48-52
Size W x D x H: 25″ × 20‑9/16″ × 60-1/2"
Weight: 172 lbs
