The Mitsubishi SVZ-AP48NL & SUZ-AK48NL delivers 48,000 BTU cooling and 60,000 BTU heating with inverter-driven efficiency, Blue Fin protection, quiet operation, and multi-position installation, making it ideal for large residential or light commercial applications with year-round comfort.

Unit Type: Single Zone
Product Line: AP Series
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: 1
System Capacity: 48,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

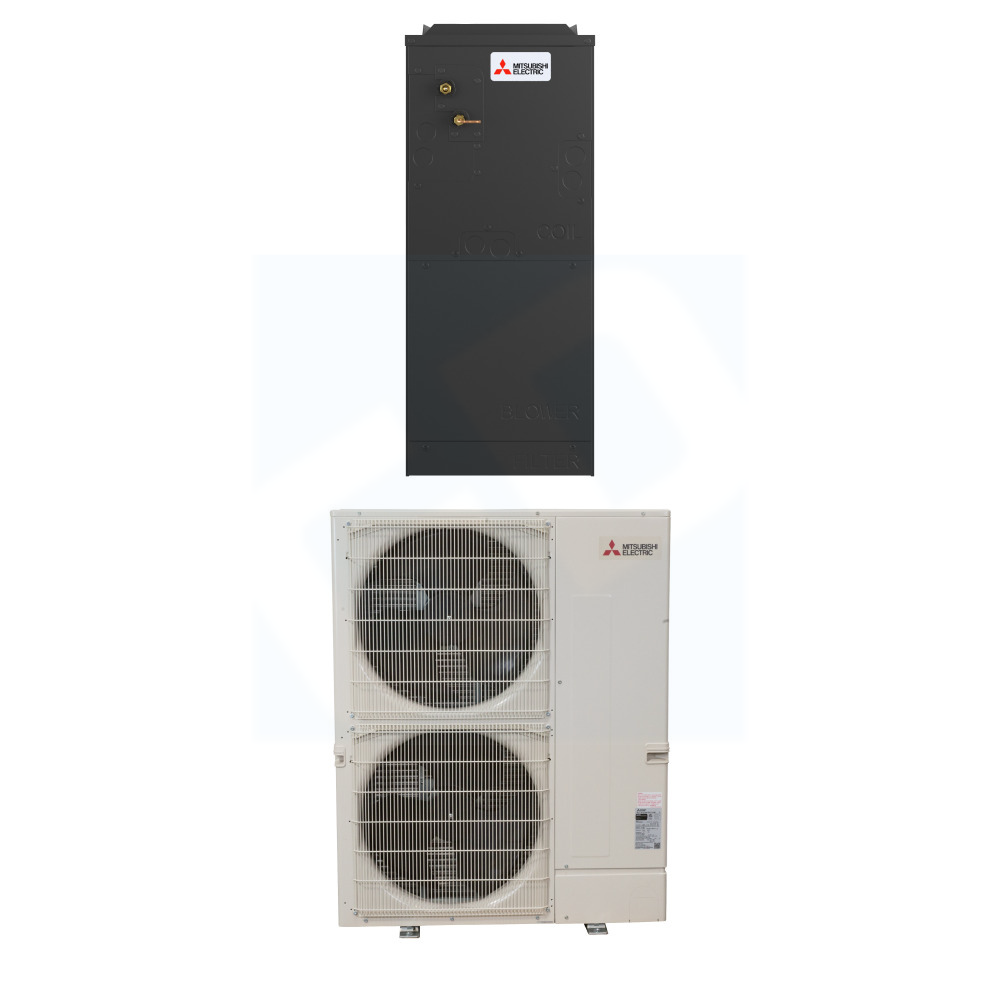

Indoor Unit SVZ-AP48NL
Outdoor Unit SUZ-AK48NL

Cooling Capacity up to 48,000 BTU
Heating Capacity up to 60,000 BTU
SEER2 17.1
EER2 9.1
HSPF2 8.1
Heating Minimum Temp -13 F
Cooling Minimum Temp N/A
Room Cooling/Heating Capacity up to 2,000 sq ft

INDOOR UNIT FEATURES
• Unique blow through design: Unique blow through design allows simple coil cleaning when the blower is removed
• Selectable external static pressure: Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
• Positive pressure cabinet: Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG
• Optional humidifier control and ERV control
• Optional electric heat kit: Optional electric heat kit for additional heat capacity
• Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
• Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building.
• Multi-position installation: Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is
recommended for proper management of condensate to prevent water blow-off in certain conditions
• Fiberglass free insulation: 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency
• Enclosed ECM motor: Highly efficient totally enclosed ECM motor
• Ducted air handler: Ducted air handler provides a solution to cool and heat large zones
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• High-performance grooved piping : High-performance grooved piping for increased heat exchange efficiency
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space

Airflow Cooling CFM, Dry: 1,040-1,262-1,485
Airflow Heating CFM, Dry: 1,040-1,262-1,485
Noise Level dB(A), Cooling: 45-48-52
Noise Level dB(A), Heating: 45-48-52
Size W x D x H: 25″ × 21-5/8" x 59-1/2"
Weight: 172 lbs
