The Mitsubishi SVZ-AP30NL is a 27,000 BTU ducted air handler with 32,000 BTU heating, ECM motor, R-454B refrigerant, and selectable static pressure. Quiet 36–49 dB(A) operation with flexible multi-position installation. Ideal for large residential or light commercial spaces.

Unit Type: Indoor Unit
Product Line: M-Series SVZ
Operating Mode: Cooling & Heating
Number of Zones: 1
System Capacity: 27,000 BTU
Line Set Size: 1/4" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: Yes

Indoor Unit SVZ-AP30NL
Remote Controller Included

Cooling Capacity up to 27,000 BTU
Heating Capacity up to 32,000 BTU
SEER2 17.8
EER2 11.2
HSPF2 9
Heating Minimum Temp -14 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 1,250 sq ft

INDOOR UNIT FEATURES
• Ducted air handler: Ducted air handler provides a solution to cool and heat large zones
• Enclosed ECM motor: Highly efficient totally enclosed ECM motor
• Fiberglass free insulation: 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency
• Multi-position installation: Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is
recommended for proper management of condensate to prevent water blow-off in certain conditions
• Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building.
• Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
• Optional electric heat kit: Optional electric heat kit for additional heat capacity
• Optional humidifier control and ERV control
• Positive pressure cabinet: Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG
• Selectable external static pressure: Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting

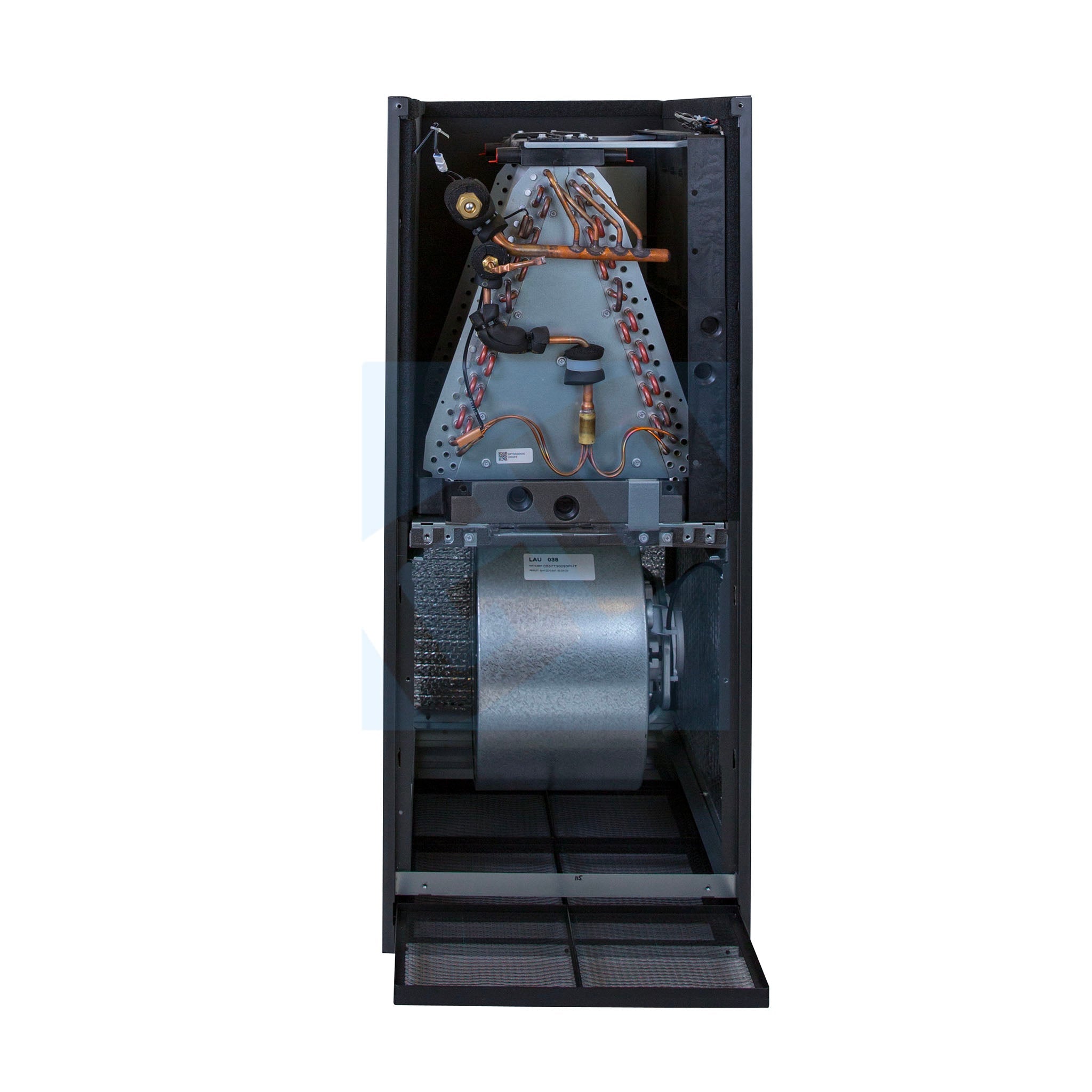

• Unique blow through design: Unique blow through design allows simple coil cleaning when the blower is removed

Airflow Cooling CFM, Dry: 613-744-875
Airflow Heating CFM, Dry: 613-744-875
Noise Level dB(A), Cooling: 36-45-49
Noise Level dB(A), Heating: 36-45-49
Size W x D x H: 21" x 21-5/8" x 43-7/8"
Weight: 122 lbs
