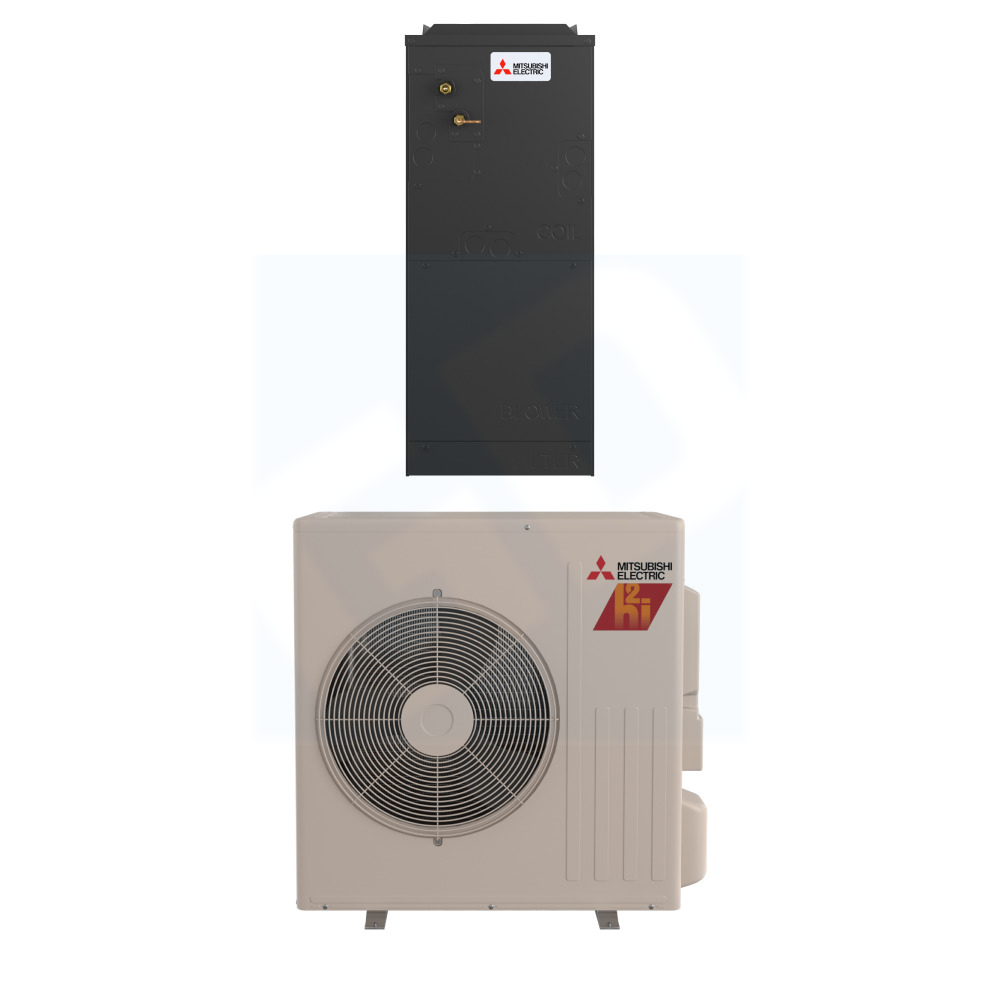

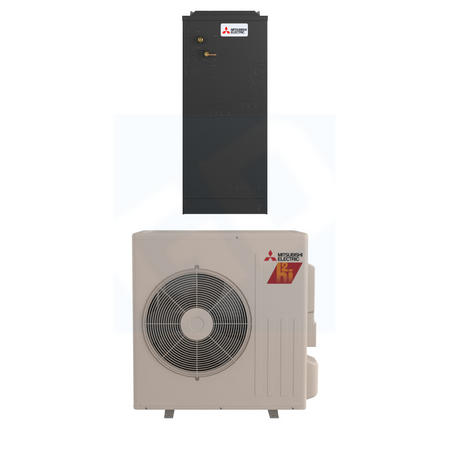

Mitsubishi SVZ-AP12NL & SUZ-AA12NLHZ is a 12,000 BTU ducted heat pump system with Hyper-Heating INVERTER® technology, delivering reliable heating down to -13°F. ENERGY STAR® certified, quiet, and efficient with flexible installation and advanced airflow control.

Unit Type: Single Zone
Product Line: AP Series
Operating Mode: Cooling & Heating
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Indoor Unit SVZ-AP12NL
Outdoor Unit SUZ-AA12NLHZ
Remote Controller Included

Cooling Capacity up to 12,000 BTU
Heating Capacity up to 18,000 BTU
SEER2 16.1
EER2 12.6
HSPF2 9.3
Heating Minimum Temp -22.50 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 500 sq ft

INDOOR UNIT FEATURES
• Ducted air handler: Ducted air handler provides a solution to cool and heat large zones
• Enclosed ECM motor: Highly efficient totally enclosed ECM motor
• Fiberglass free insulation: 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency
• Multi-position installation: Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is
recommended for proper management of condensate to prevent water blow-off in certain conditions
• Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building.
• Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
• Optional electric heat kit: Optional electric heat kit for additional heat capacity
• Optional humidifier control and ERV control
• Positive pressure cabinet: Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG
• Selectable external static pressure: Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
• Unique blow through design: Unique blow through design allows simple coil cleaning when the blower is removed
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Built-in base pan heater
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• Hyper-Heating INVERTER® (H2i®): 100% heating capacity down to 5° F with guaranteed heating down to -13° F.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.

Airflow Cooling CFM, Dry: 278-381-448
Airflow Heating CFM, Dry: 278-381-448
Noise Level dB(A), Cooling: 36-41-45
Noise Level dB(A), Heating: 36-41-45
Size W x D x H: 17" x 21-5/8" x 39-13/16"
Weight: 97 lbs
