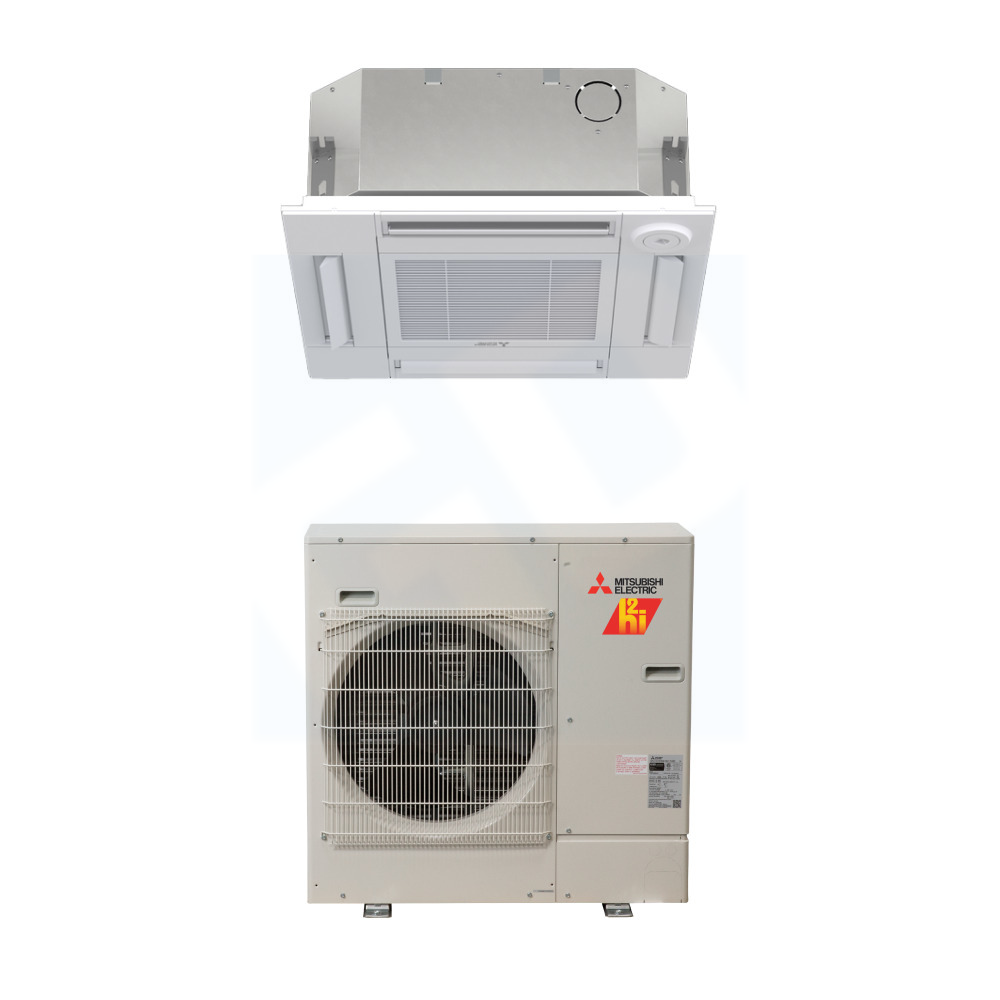

Mitsubishi SLZ‑AF12NL ceiling cassette with SLP‑18FAU grille and SUZ‑AA12NLHZ Hyper‑Heating condenser delivers 12k BTU of quiet, cold-climate performance, ENERGY STAR® efficiency, and built-in Wi‑Fi.

Unit Type: Multi Zone
Product Line: M-Series AF
Operating Mode: Cooling & Heating
Number of Zones: Multiple
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: Yes

Indoor Unit SLZ-AF12NL
Standard Grille SLP-18FAU
Outdoor Unit SUZ-AA12NLHZ
Remote Controller NOT INCLUDED

Cooling Capacity up to 12,000 BTU
Heating Capacity up to 16,900 BTU
SEER2 16.8
EER2 13.9
HSPF2 9.4
Heating Minimum Temp -22.5 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 500 sq ft

INDOOR UNIT FEATURES
• Built-in drain condensate lift mechanism (lifts to 33”)
• Ceiling-recessed cassette : Ceiling-recessed cassette (24”x24”)
• Fresh air intake: Fresh air intake provided in the main body
• Individual vane control
• Install Konnect Series: Install Konnect Series in a drywalled ceiling (with an access panel for servicing) or in a 2’x2’ drop ceiling
• Light commercial: Units with this icon are suitable for light commercial applications such as small offices, restaurants, and retail.
• Long-life air filter included
• Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building.
• Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
• Optional 3D i-see Sensor®: The advanced sensor scans each room to produce a complete thermal profile that includes heat signatures based upon size,
temperature and movement, then adjusts temperature and airflow based on user preference, and saves energy according to room occupancy.
• Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature.
• Up and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontal
vanes.
• Wide airflow pattern: Wide airflow pattern for excellent air distribution
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Built-in base pan heater
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• Hyper-Heating INVERTER® (H2i®): 100% heating capacity down to 5° F with guaranteed heating down to -13° F.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.

Airflow Cooling CFM, Dry: 230–280–335
Airflow Heating CFM, Dry: 230–280–335
Noise Level dB(A), Heating: 25–30–34
Unit Size W x D x H: 22-7/16" x 22-7/16" x 8-3/16"
Grille Size W x D x H: 24-19/32" x 24-19/32" x 13/32"
Weight: 31 lbs
