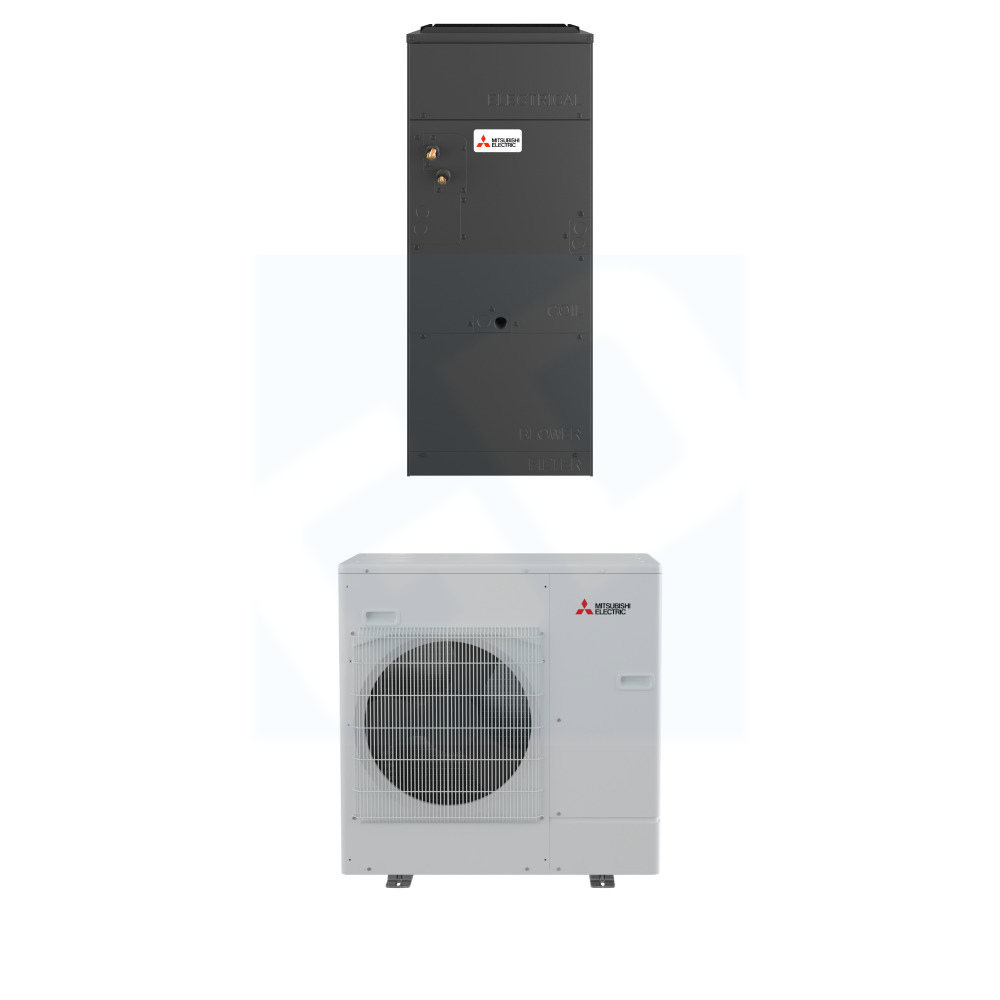

Mitsubishi PVA‑AA30NL & PUZ‑AH30NL is a 30,000 BTU ENERGY STAR® ducted heat pump system ideal for ~1,250 sq ft. Features efficient heating/cooling, low-ambient operation, flexible installation, and smart control compatibility.

Unit Type: Single Zone
Product Line: PVA Series
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 30,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Indoor Unit PVA-AA30NL
Outdoor Unit PUZ-AH30NL

Cooling Capacity up to 30,600 BTU
Heating Capacity up to 34,400 BTU
SEER2 18
EER2 9.9
HSPF2 8.5
Heating Minimum Temp -13 F
Cooling Minimum Temp N/A
Room Cooling/Heating Capacity up to 1,250 sq ft

INDOOR UNIT FEATURES
• Ducted air handler: Ducted air handler provides a solution to cool and heat large zones
• Enclosed ECM motor: Highly efficient totally enclosed ECM motor
• Fiberglass free insulation: 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency
• Light commercial: Units with this icon are suitable for light commercial applications such as small offices, restaurants, and retail.
• Multi-position installation: Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is
recommended for proper management of condensate to prevent water blow-off in certain conditions
• Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
• Optional electric heat kit: Optional electric heat kit for additional heat capacity
• Optional humidifier control and ERV control
• Positive pressure cabinet: Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG
• Selectable external static pressure: Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
• Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.
• Unique blow through design: Unique blow through design allows simple coil cleaning when the blower is removed
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Continuous operation: 24-hour continuous operation (cooling mode)
• Fast restart
• High pressure protection
• High pressure/temperature protection
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Low ambient cooling : Low ambient cooling down to 0°F providing 100% capacity
• Pre-charged refrigerant: 12k -30k BTU/h come pre-charged for ease of installation. 24k – 30k BTU/h are pre-charged to maximum line length of 165
feet. 12k – 18k BTU/h are pre-charged for up to 100 feet of line length. For units with a capacity of 36,000 BTU/h and above, additional refrigerant
charges will be required.
• Seacoast protection: Seacoast Protection, made standard in the 2022 production, features a robust anti-corrosion system with phosphate and acrylic-
enamel coated external panels, epoxy resin-coated fan motor support and separator assembly valve beds, and Blue Fin treatment for the heat
exchanger coil. These components are rated for 2,000 hours of durability under ASTM B117 testing standards, ensuring longevity in corrosive coastal
environments.
• Superior energy and operational efficiency

Airflow Cooling CFM, Dry: 613-744-875
Airflow Heating CFM, Dry: 613-744-875
Noise Level dB(A), Cooling: 34-40-44
Noise Level dB(A), Heating: 34-40-44
Size W x D x H: 21" x 21-5/8" x 54-1/4"
Weight: 141 lbs
