Mitsubishi PKFY-L15NLMU-A is a 15,000 BTU wall-mounted indoor unit offering efficient cooling and heating, quiet operation (29–40 dB), and multi-speed airflow. Its compact design, flexible controls, and easy installation make it ideal for larger residential or light commercial spaces.

Unit Type: Wall Ducted
Product Line: PKFY Series
Operating Mode: Cooling & Heating
Low Ambient Heat: N/A
Number of Zones: N/A
System Capacity: 15,000 BTU
Line Set Size: 1/4" x 1/2"
WiFi Enabled: Yes
WiFi Built In: No

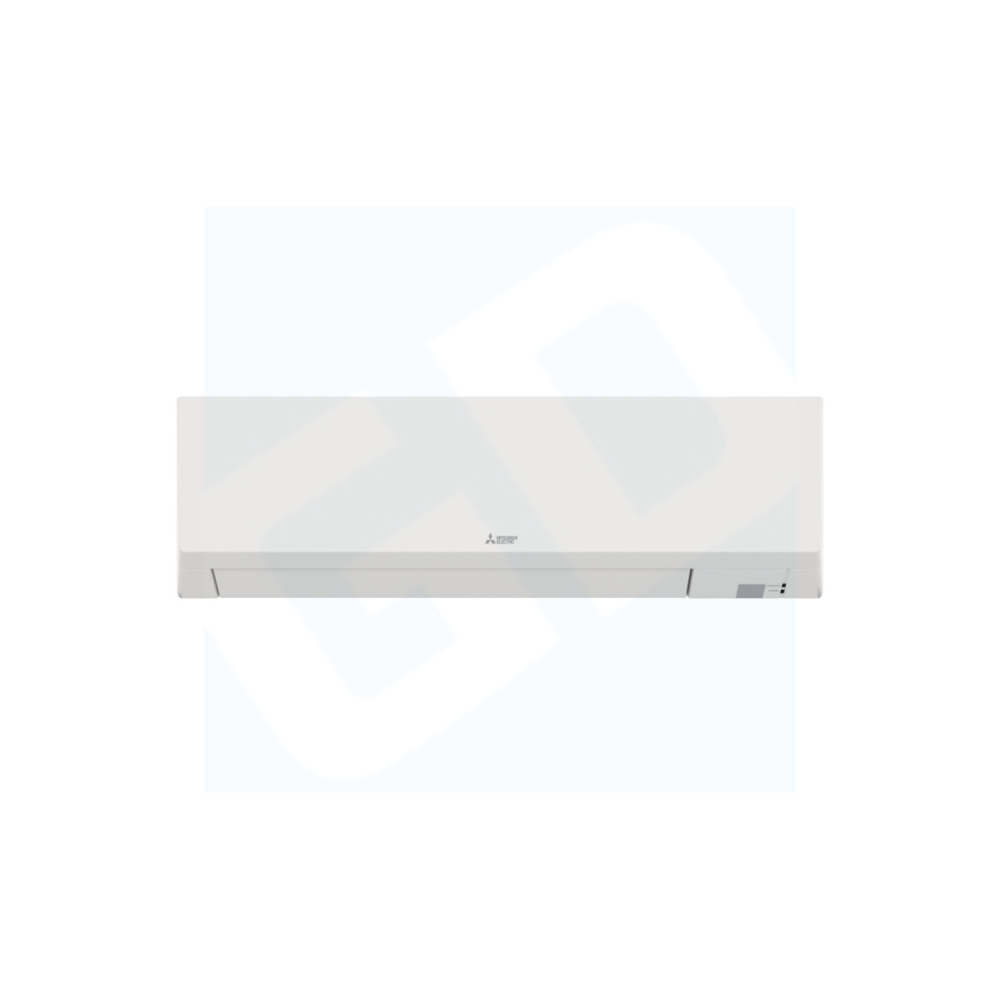

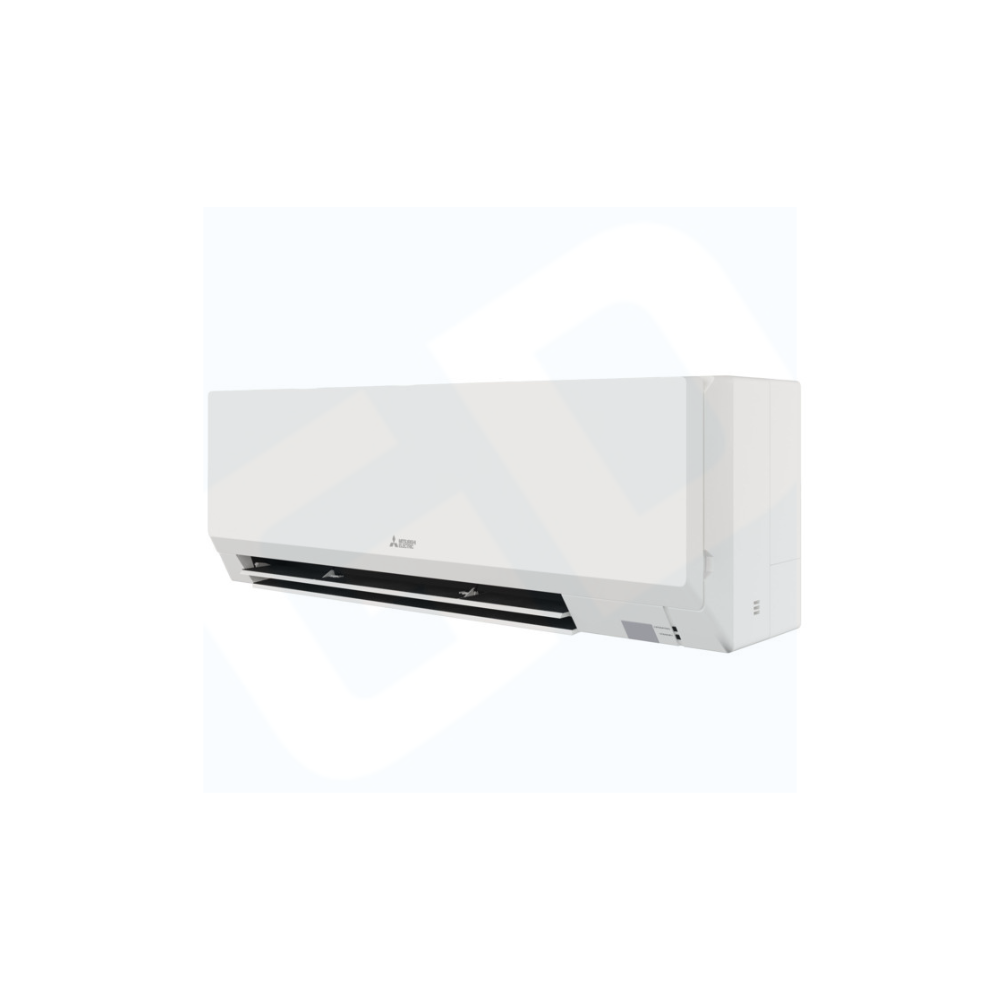

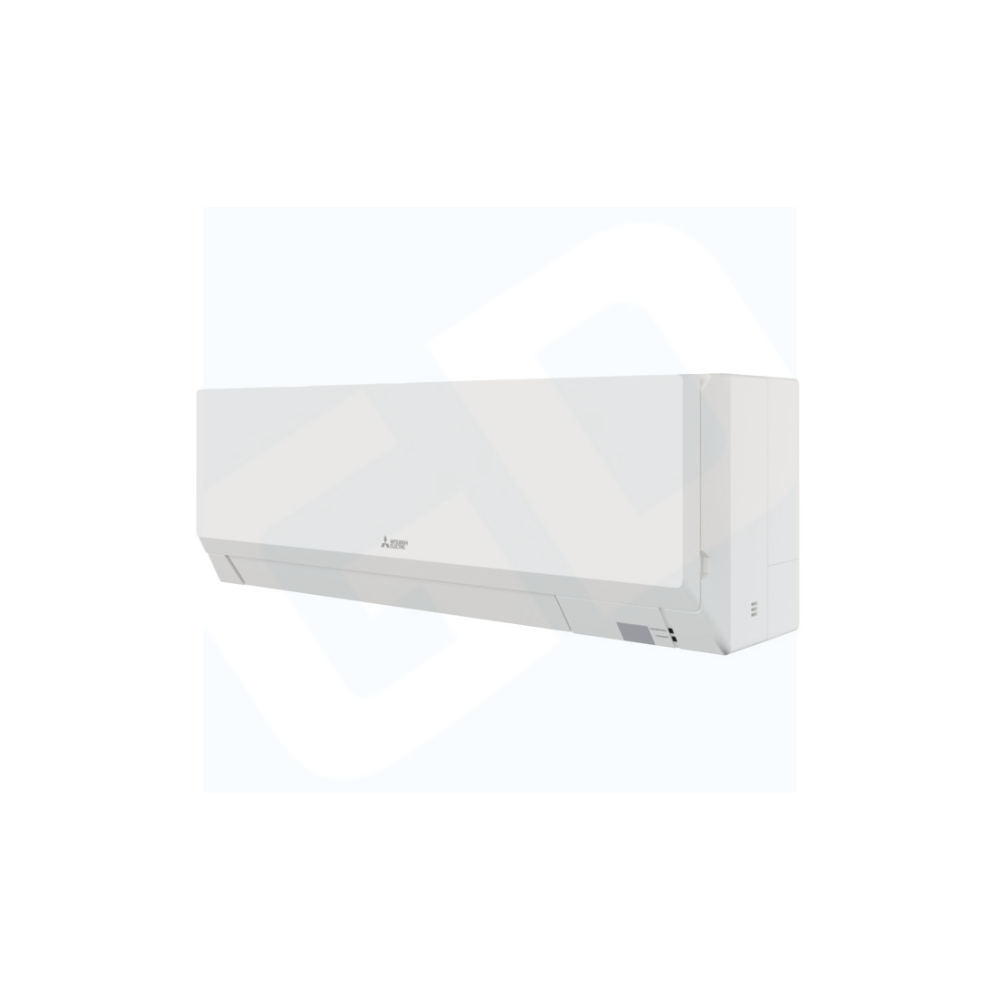

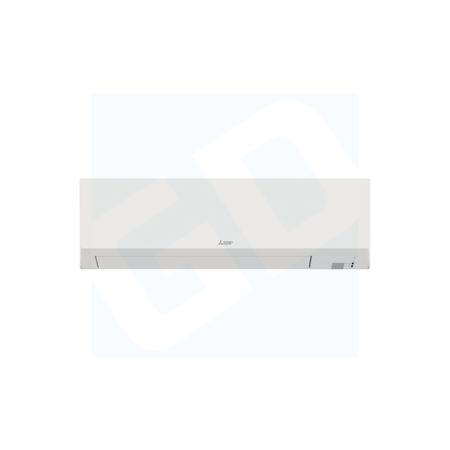

Indoor Unit PKFY-L15NLMU-A

Cooling Capacity up to 15,000 BTU
Heating Capacity up to 17,000 BTU
Room Cooling/Heating Capacity up to 600 sq ft

GENERAL FEATURES
• Back and right-side wiring take-out
• Compact, lightweight, flat-white, flat-panel, modern design
• Dual set point functionality
• Easily removed intake grille filter for cleaning
• Multiple fan speed settings
• Quiet operation: Outdoor units are as quiet as a typical conversation, and
most indoor units are whisper quiet.
• Wireless receiver on board

Airflow Cooling CFM, Dry: 222-261-304-353
Airflow Heating CFM, Dry: 222-261-304-353
Noise Level dB(A), Cooling: 29-34-37-40
Noise Level dB(A), Heating: 29-34-37-40
Size W x D x H: 35-23/64" x 9-11/32" x 11-25/32"
Weight: 28.4 lbs
