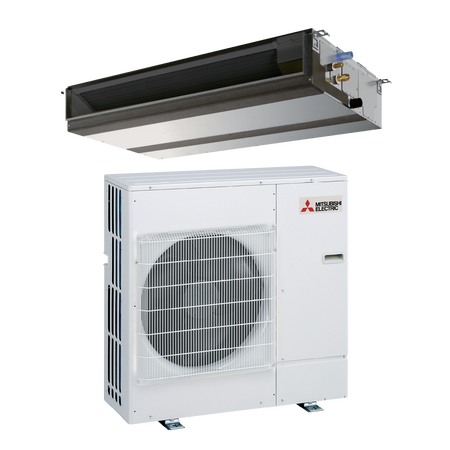

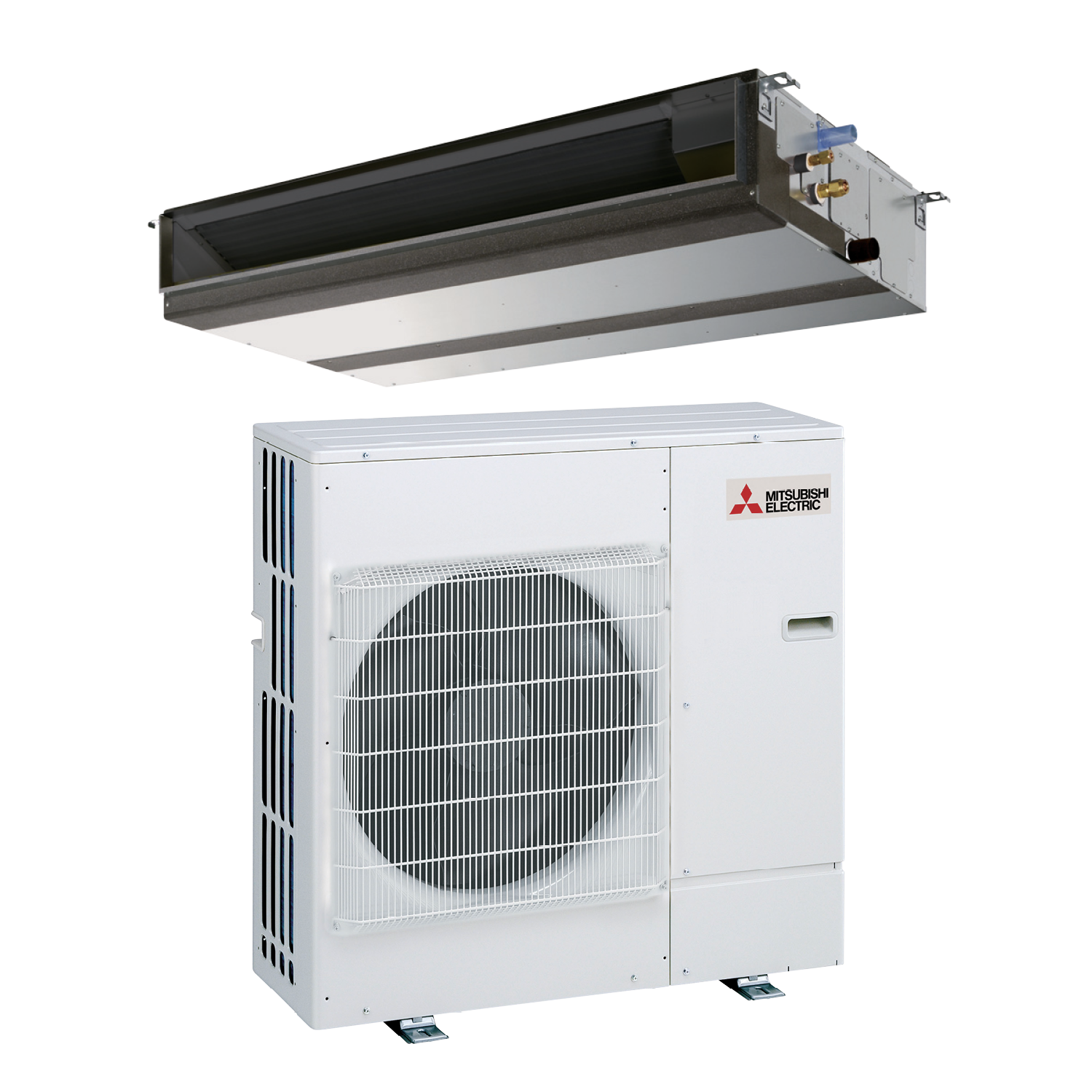

Mitsubishi PEAD-AA36NL & SUZ-AA36NL ducted heat pump system delivers 33,000 BTU cooling and 34,000 BTU heating with 19.4 SEER2 efficiency. Features a slim concealed design, INVERTER technology, quiet operation, low-ambient heating, and optional Wi-Fi controls.

Unit Type: Single Zone
Product Line: PEAD Series
Operating Mode: Heating & Cooling
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 36,000 BTU
Line Set Size: 1/4" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Indoor Unit PEAD-AA36NL
Outdoor Unit SUZ-AA36NL

Cooling Capacity up to 33,000 BTU
Heating Capacity up to 36,000 BTU
SEER2 19.4
EER2 10.7
HSPF2 9.3
Heating Minimum Temp -14 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 1,500 sq ft

INDOOR UNIT FEATURES
Wi-Fi Optional: A Wireless Interface Adapter can be ordered as an accessory for field installation.
Four Speed Fan: Adjust the fan between four speed settings to optimal comfort.
Auto Changeover: The unit will automatically switch between heating and cooling modes to maintain your desired temperature.
Condensate Lift Mechanism: Reduces the need for an additional pump to remove condensate. Units with a condensate lift mechanism also include an
overflow safety switch.
Light Commercial: Light commercial applications include small offices, restaurants, and retail.
OUTDOOR UNIT FEATURES
Inverter Driven Compressor: Inverter technology uses only the precise amount of energy needed to keep a space comfortable.
Blue Fin Coating: Anti-corrosion coating that protects the outdoor heat exchanger against salt, sulfur, and other airborne contaminants that impact the
efficiency and performance of the outdoor units.
Seacoast Protection: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion
caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.

Airflow Cooling CFM, Dry: 848-936-1,024-1,201
Airflow Heating CFM, Dry: 848-936-1,024-1,201
Noise Level dB(A), Cooling: 34-36-38-42
Noise Level dB(A), Heating: 34-36-38-42
Size W x D x H: 55-1/8" x 28-7/8" x 9-7/8"
Weight: 82 lbs
