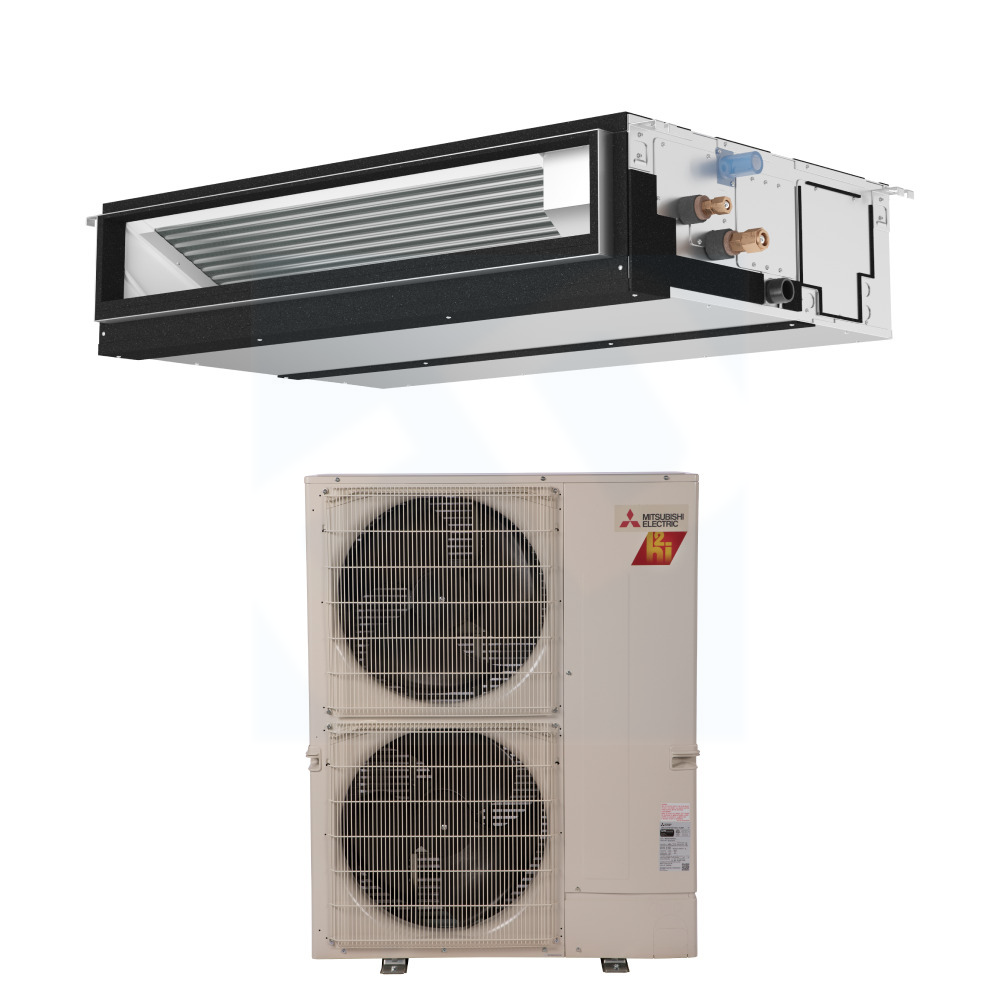

The Mitsubishi PEAD-AA24NL & SUZ-AA24NLHZ delivers 24,000 BTU ducted comfort with Hyper-Heating INVERTER® tech, ensuring 100% heating at 5 °F and operation down to –13 °F. Slim 9-7/8″ design, quiet 27 dB(A) indoor sound, Blue Fin protection, and ENERGY STAR® efficiency provide year-round reliability.

Unit Type: Single Zone
Product Line: PEAD Series
Operating Mode: Cooling & Heating
Low Ambient Heating: No
Number of Zones: 1
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Indoor Unit PEAD-AA24NL
Outdoor Unit SUZ-AA24NLHZ

Cooling Capacity up to 24,800 BTU
Heating Capacity up to 28,000 BTU
SEER2 17.3
EER2 12.3
HSPF2 8.5
Heating Minimum Temp -22.5 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 1,000 sq ft

INDOOR UNIT FEATURES
• Auto fan speed mode
• Built-in condensate lift mechanism (up to 27-9/16”)
• Multiple control options including: comfort app, third-party interfaces and both wired and wireless controllers
• Optional FB Series filter boxes for easy access and service
• Unobtrusive ceiling-concealed design for short-run ductwork
• Wide ranging external static pressure (0.14-0.60 in. WG)
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Built-in base pan heater
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• Hyper-Heating INVERTER® (H2i®): 100% heating capacity down to 5° F with guaranteed heating down to -13° F.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.

Airflow Cooling CFM, Dry: 512-565-636-742
Airflow Heating CFM, Dry: 512-565-636-742
Noise Level dB(A), Cooling: 27-29-31-35
Noise Level dB(A), Heating: 27-29-31-35
Size W x D x H: 43-5/16" x 28-7/8" x 9-7/8"
Weight: 67 lbs
