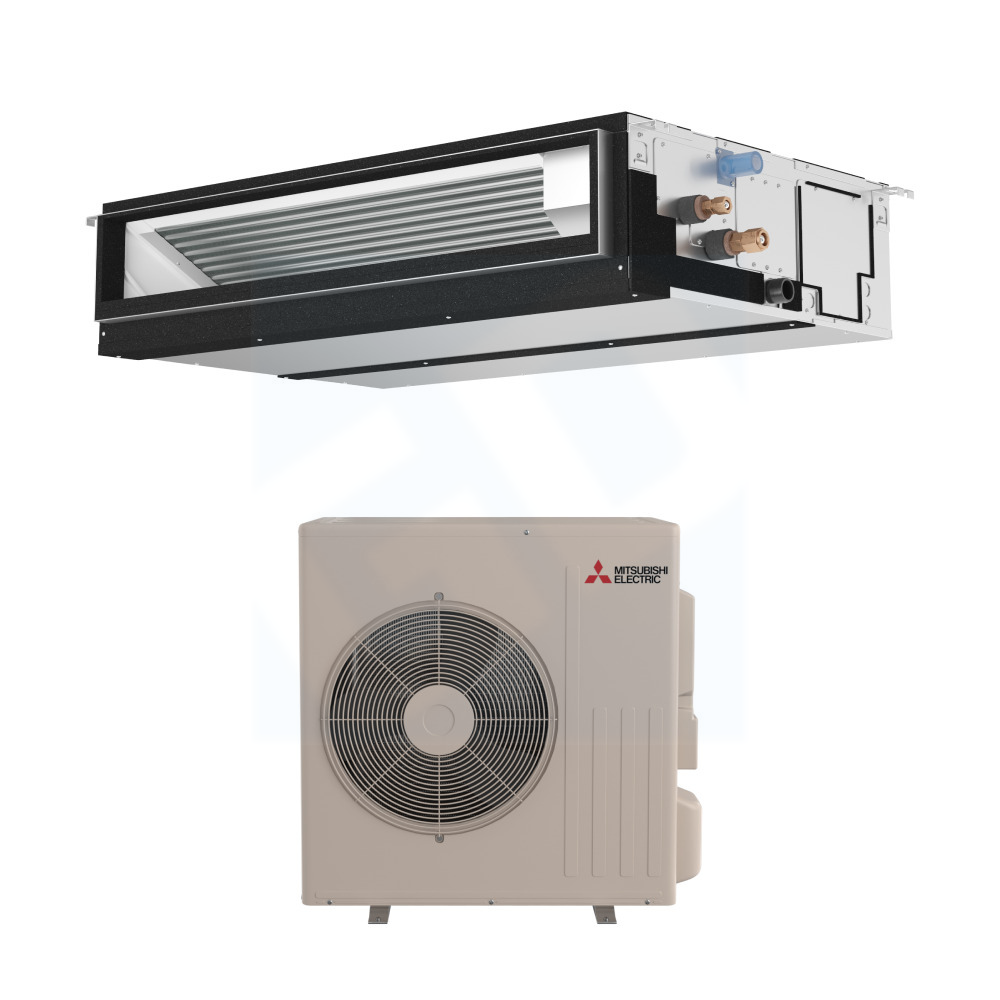

The Mitsubishi PEAD-AA24NL & SUZ-AA24NL delivers 24,000 BTU ducted comfort with INVERTER-driven efficiency and R-454B refrigerant. Slim 9-7/8″ design, quiet 27 dB(A) indoor operation, Blue Fin protection, and ENERGY STAR® certification ensure reliable year-round performance.

Unit Type: Single Zone
Product Line: PEAD Series
Operating Mode: Cooling & Heating
Low Ambient Heating: No
Number of Zones: 1
System Capacity: 24,000 BTU
Line Set Size: 1/4" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Indoor Unit PEAD-AA24NL
Outdoor Unit SUZ-AA24NL

Cooling Capacity up to 24,000 BTU
Heating Capacity up to 28,200 BTU
SEER2 21.2
EER2 12.2
HSPF2 10
Heating Minimum Temp -14 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 1,000 sq ft

Specifications are subject to change without notice. © 2025 Mitsubishi Electric Trane HVAC US LLC. All rights reserved.
PEAD-AA24NL & SUZ-AA24NL
24,000 BTU/H HORIZONTAL-DUCTED INDOOR UNIT
24,000 BTU/H HEAT PUMP OUTDOOR UNIT
Indoor Unit PEAD-AA24NL
Outdoor Unit SUZ-AA24NL
Job Name:
System Reference: Date:
INDOOR UNIT FEATURES
• Auto fan speed mode
• Built-in condensate lift mechanism (up to 27-9/16”)
• Multiple control options including: comfort app, third-party interfaces and both wired and wireless controllers
• Optional FB Series filter boxes for easy access and service
• Unobtrusive ceiling-concealed design for short-run ductwork
• Wide ranging external static pressure (0.14-0.60 in. WG)
OUTDOOR UNIT FEATURES
• Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• High-performance grooved piping : High-performance grooved piping for increased heat exchange efficiency
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.

Airflow Cooling CFM, Dry: 512-565-636-742
Airflow Heating CFM, Dry: 512-565-636-742
Noise Level dB(A), Cooling: 27-29-31-35
Noise Level dB(A), Heating: 27-29-31-35
Size W x D x H: 43-5/16" x 28-7/8" x 9-7/8"
Weight: 67 lbs
