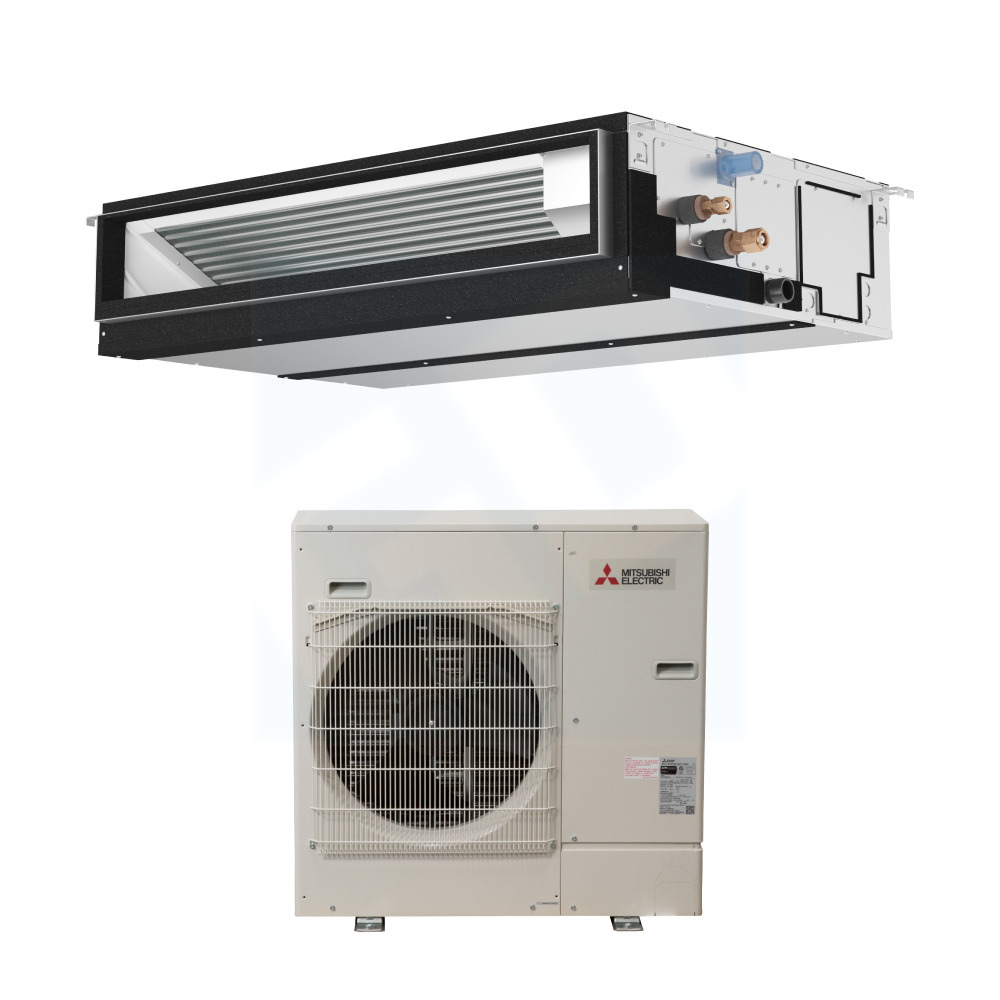

Mitsubishi PEAD-AA24NL & PUY-AH24NL delivers 21,200 BTU ducted cooling with INVERTER efficiency, low-ambient operation to -40°F, Blue Fin seacoast protection, quiet 27 dB(A) indoor sound, smart controls & ENERGY STAR® performance for spaces up to ~1,000 sq ft.

Unit Type: Single Zone
Product Line: PEAD Series
Operating Mode: Cooling Only
Low Ambient Heat: Cooling Only
Number of Zones: 1
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Indoor Unit PEAD-AA24NL

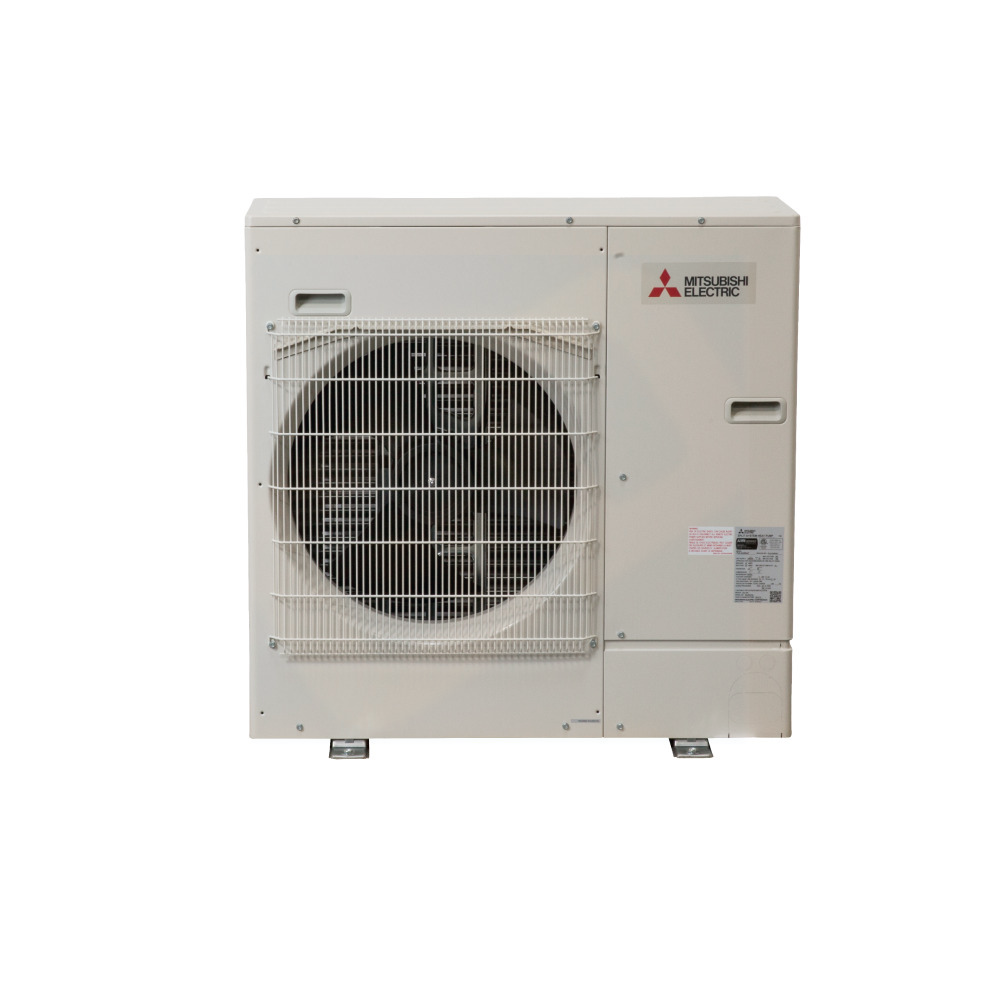

Outdoor Unit PUY-AH24NL

Cooling Capacity up to 24,000 BTU
SEER2 19.6
EER2 12
Room Cooling/Heating Capacity up to 1,000 sq ft

INDOOR UNIT FEATURES
• Auto fan speed mode
• Built-in condensate lift mechanism (up to 27-9/16”)
• Multiple control options including: comfort app, third-party interfaces and both wired and wireless controllers
• Optional FB Series filter boxes for easy access and service
• Unobtrusive ceiling-concealed design for short-run ductwork
• Wide ranging external static pressure (0.14-0.60 in. WG)
OUTDOOR UNIT FEATURES
• Continuous operation: 24-hour continuous operation (cooling mode)
• Fast restart
• High pressure protection
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Low ambient cooling: Low ambient cooling down to -40°F providing 100% capacity (with wind baffles)
• Pre-charged refrigerant: 12k -30k BTU/h come pre-charged for ease of installation. 24k – 30k BTU/h are pre-charged to maximum line length of 225
feet. 12k – 18k BTU/h are pre-charged for up to 165 feet of line length. For units with a capacity of 36,000 BTU/h and above, additional refrigerant
charges will be required.
• Seacoast protection: Seacoast Protection, made standard in the 2022 production, features a robust anti-corrosion system with phosphate and acrylic-
enamel coated external panels, epoxy resin-coated fan motor support and separator assembly valve beds, and Blue Fin treatment for the heat
exchanger coil. These components are rated for 2,000 hours of durability under ASTM B117 testing standards, ensuring longevity in corrosive coastal
environments.
• Superior energy and operational efficiency
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.

Airflow Cooling CFM, Dry: 512-565-636-742
Noise Level dB(A), Cooling: 27-29-31-35
Size W x D x H: 43-5/16" x 28-7/8" x 9-7/8"
Weight: 67 lbs
