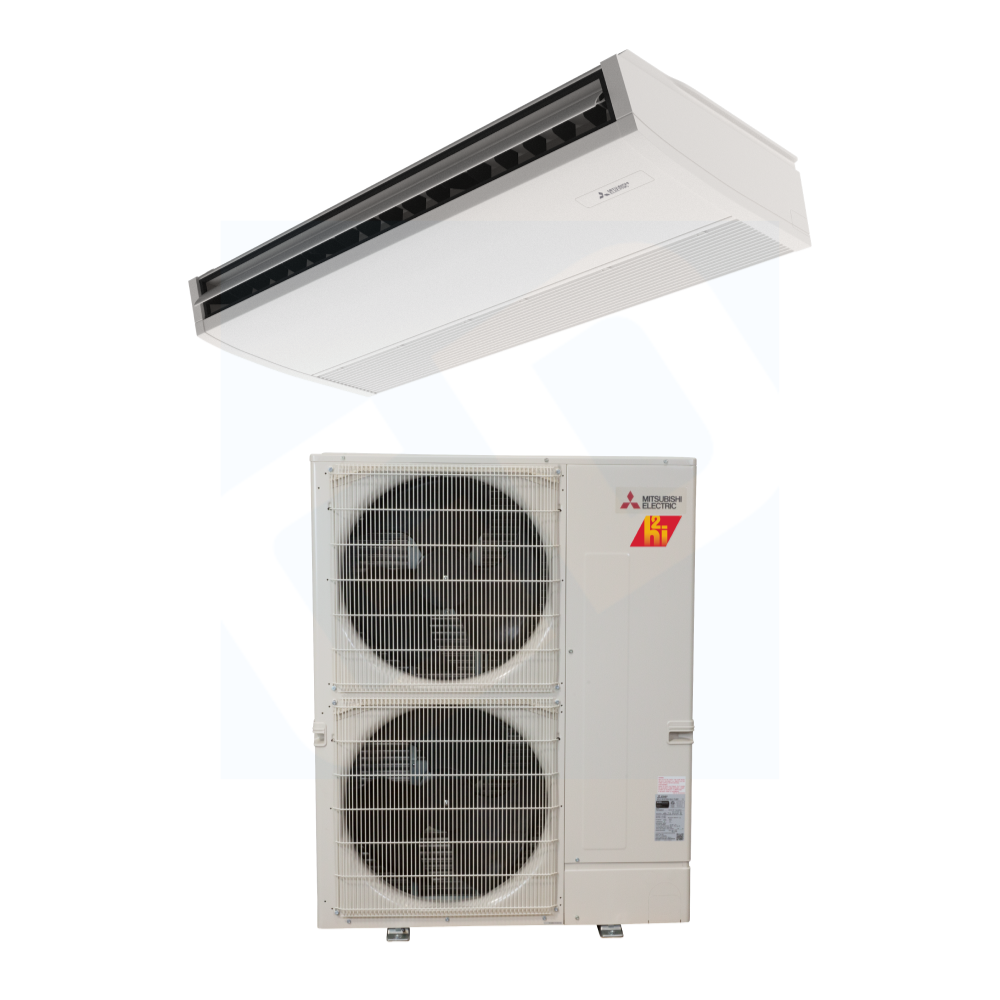

Mitsubishi PCA-AK36NL & PUZ-AH36NLHZ deliver 36,000 BTU cooling and reliable Hyper-Heating down to –13°F. Ideal for large spaces, this ceiling-suspended system offers quiet, efficient year-round comfort.

Unit Type: Single Zone
Product Line: P-Series AK
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 36,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

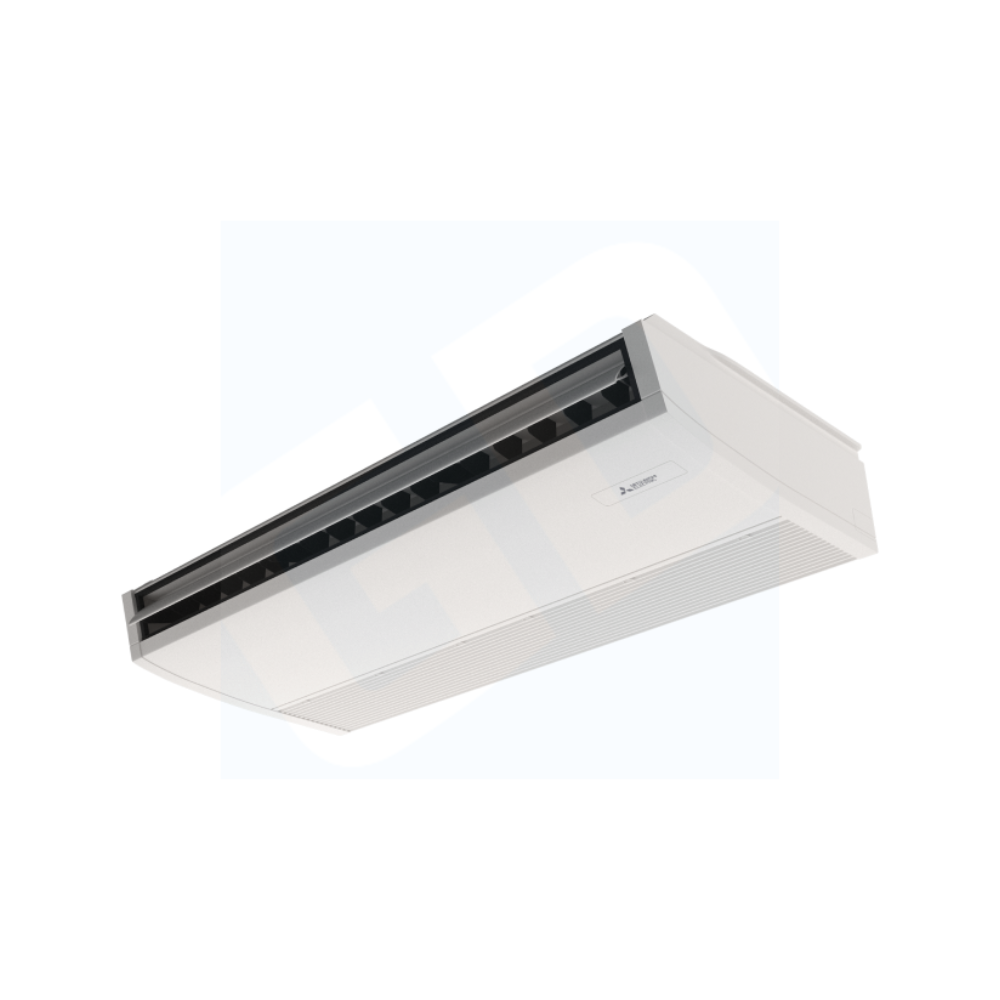

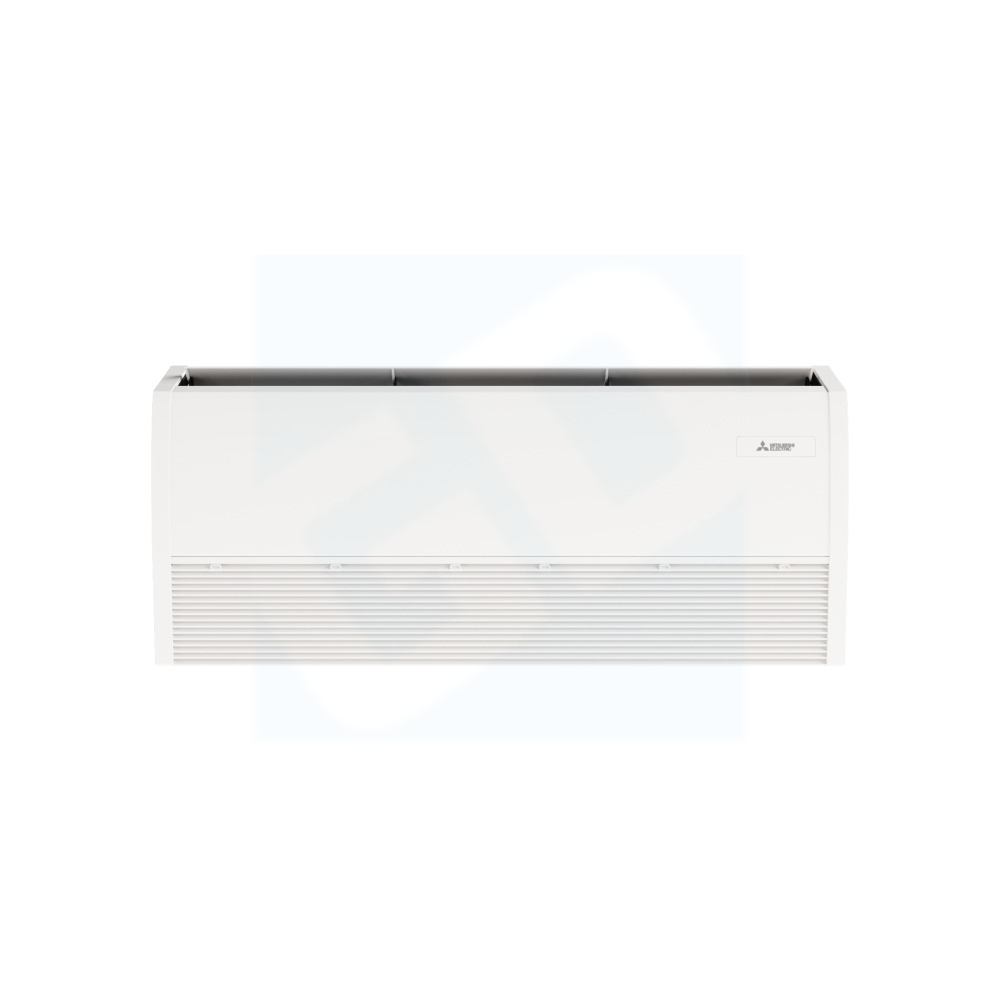

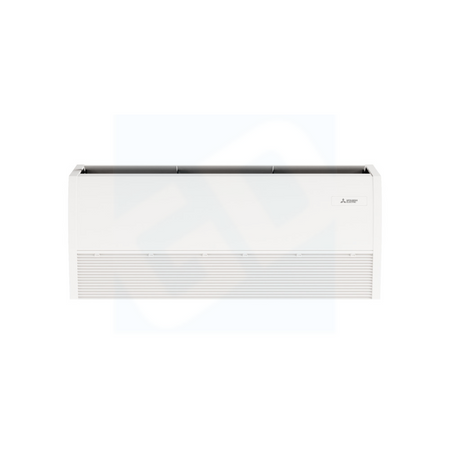

Indoor Unit PCA-AK36NL
Outdoor Unit PUZ-AK36NLHZ

Cooling Capacity up to 37,000 BTU
Heating Capacity up to 40,000 BTU
SEER2 22.2
EER2 12.2
HSPF2 9.5
Heating Minimum Temp -22 F
Cooling Minimum Temp N/A
Room Cooling/Heating Capacity up to 1,500 sq ft

INDOOR UNIT FEATURES
• Auto fan speed mode: Automatic adjustment of fan speed
• Easy-to-clean, washable filter
• Filter status indicator
• Ideal PCA Spaces: Ideal for larger retail stores, classrooms, and restaurants
• Knock-out for outside-air intake
• Light commercial: Units with this icon are suitable for light commercial applications such as small offices, restaurants, and retail.
• Multi-Airflow settings: Airflow settings for high and low ceiling applications
• Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
• Suspends from ceiling for quick and easy installation
• Up and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontal
vanes.
OUTDOOR UNIT FEATURES
• Built-in base pan heater
• High Speed Start-up: High speed heating at start up: Hyper-Heating INVERTER® reduces the time for heating at start up by about half compared to standard models
• Hyper-Heating INVERTER®: Variable speed INVERTER-driven compressor
• Pre-charged refrigerant: volume for piping length up to 100 ft
• Pressure/temp protection: High pressure/temperature protection
• Wide Heating Range: Wide heating range: heating performance down to -13°F (average of 80% heating capacity)

Airflow Cooling CFM, Dry: 705-775-850-920
Airflow Cooling CFM, Wet: 775-850-920-990
Airflow Heating CFM, Dry: 705-775-850-920
Noise Level dB(A), Cooling: 37-39-41-43
Noise Level dB(A), Heating: 37-39-41-43
Size W x D x H: 63" x 26-3/4" x 9-1/16"
Weight: 79 lbs
