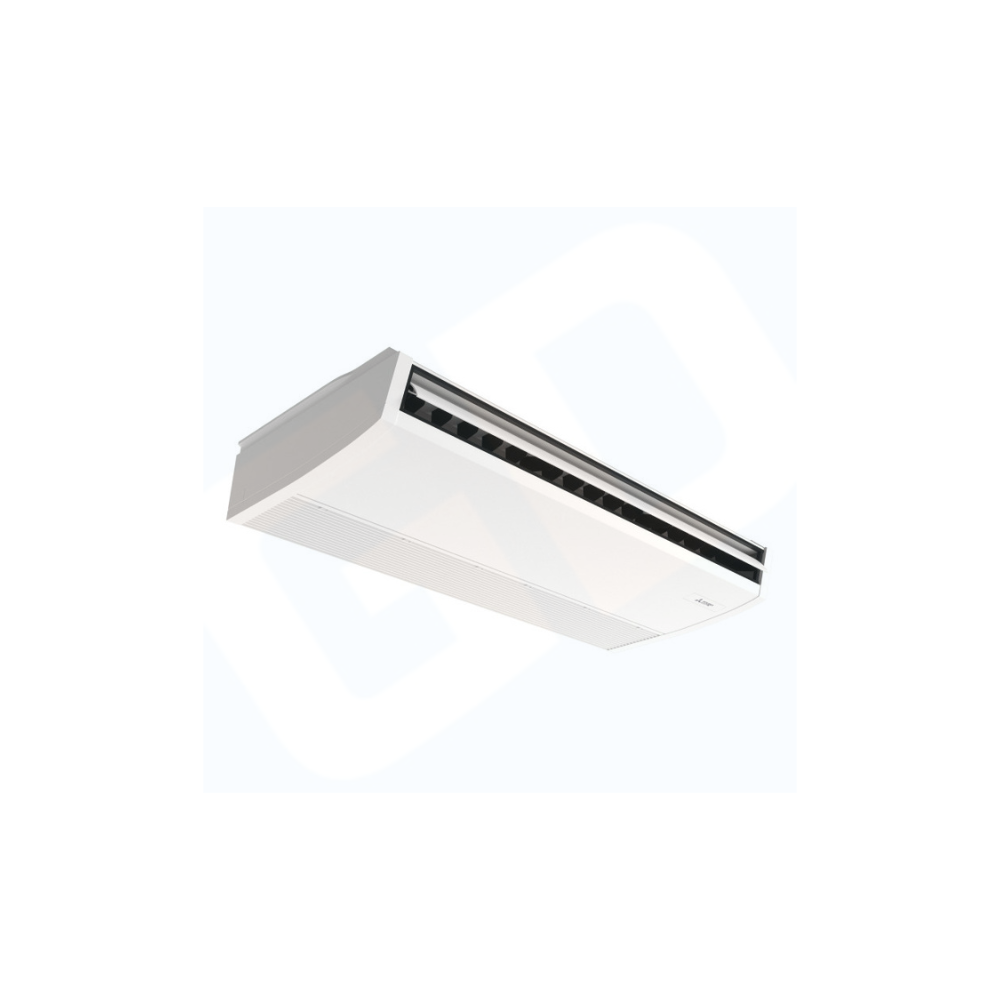

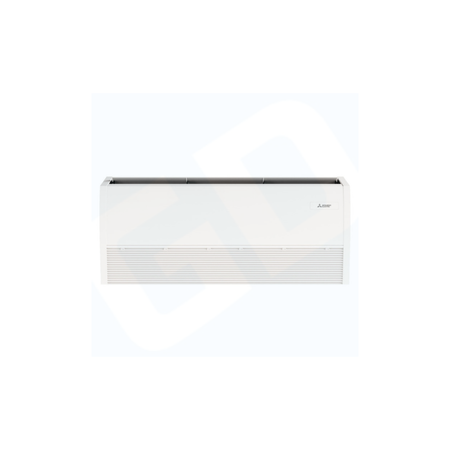

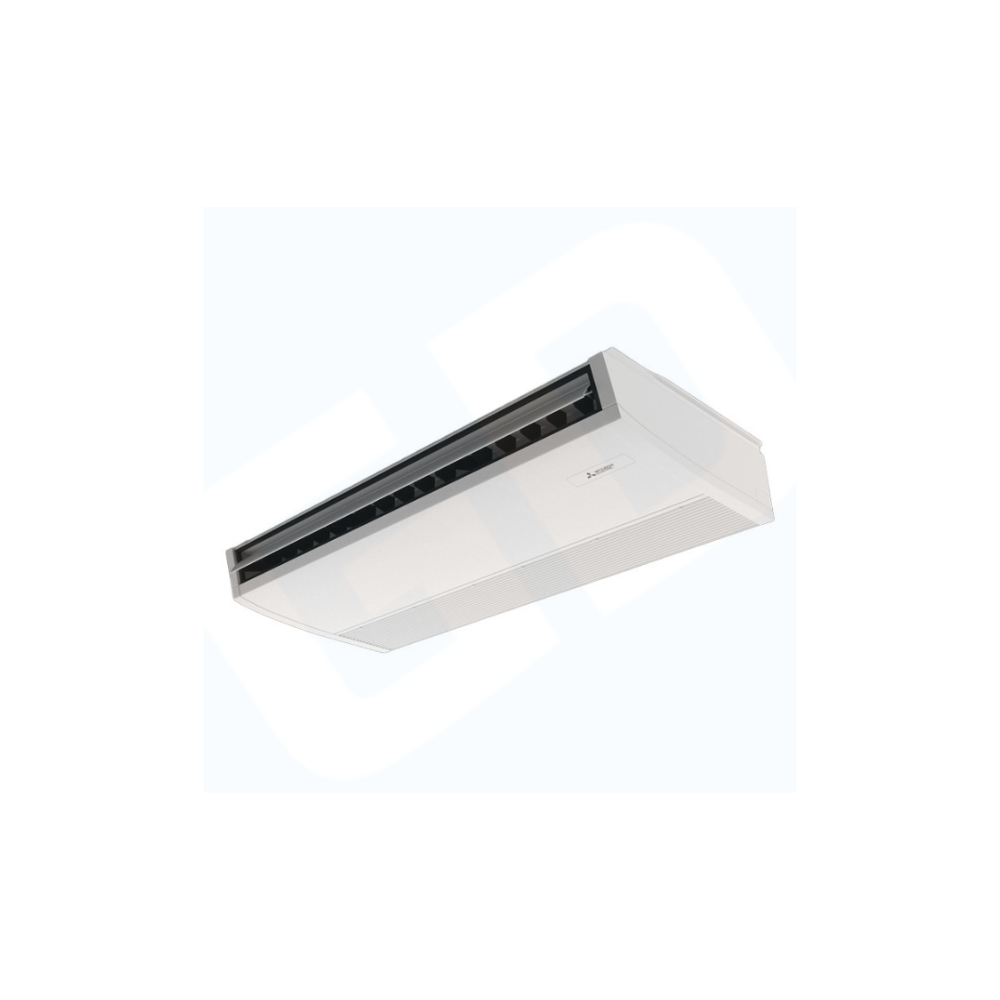

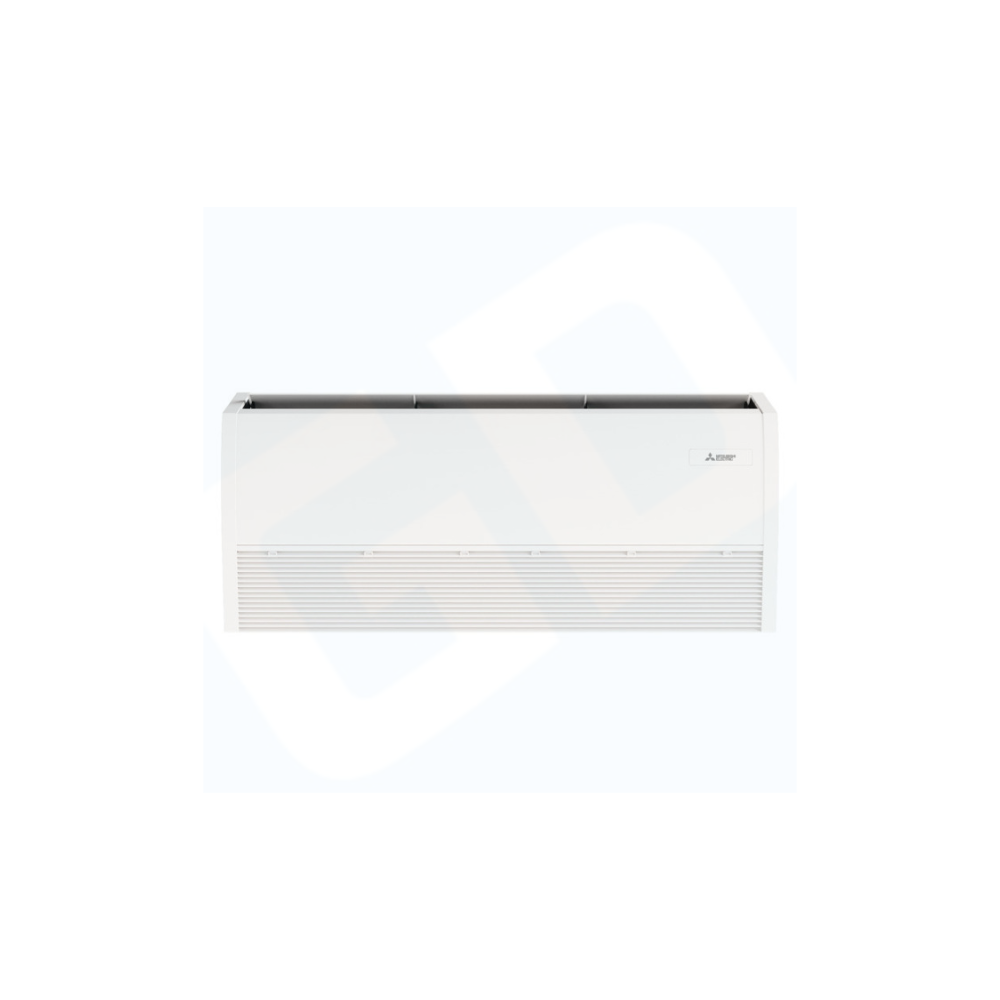

Mitsubishi PCA-AK24NL 24,000 BTU ceiling-suspended indoor unit with advanced vane control, quiet operation, smart controls, four-speed fan, and flexible installation for efficient commercial or residential cooling.

Unit Type: Ceiling Suspended
Product Line: PCA Series
Operating Mode: Cooling & Heating
Low Ambient Heat: N/A
System Capacity: 24,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: No

Indoor Unit PCA-AK24NL
Remote Controller NOT Included

Cooling Capacity up to 24,000 BTU
Heating Capacity up to 30,800 BTU
Room Cooling/Heating Capacity up to 1,000 sq ft

INDOOR UNIT FEATURES
Auto Vane Control: Auto Vane Control allows the indoor unit vanes to be moved left, right, up, and down to provide even temperatures throughout a
space.
Swing Mode: An indoor unit with this capability can move air throughout the room like an oscillating fan.
Horizontal Vane Control: Horizontal Vane Control allows the indoor unit vanes to be moved left right to provide even temperatures throughout a space.
Four Speed Fan: Adjust the fan between four speed settings to optimal comfort.
Ventilation Air Intake: A duct opening is provided, which allows outside air to be brought inside so it can be heated or cooled.
Dual Set Point: The controller can be used to program two different set points. The unit will automatically adjust between the set points for optimum
comfort.

Airflow Rate CFM Cooling, Dry: 495-530-565-635
Airflow Rate CFM Cooling, Wet: 530-565-600-670
Airflow Rate CFM Heating, Dry: 495-530-565-635
Sound Pressure Level dB(A), Cooling: 33-35-37-40
Sound Pressure Level dB(A), Heating: 33-35-37-40
Size W x D x H: 50-3/8" x 26-3/4" x 9-1/16"
Weight: 71 lbs
