Mitsubishi PAC-UKPRC001-CN-1 MELCOBEMS MINI Interface enables BACnet® and MODBUS RTU integration for CITY MULTI®, M-Series, and P-Series HVAC systems. It provides centralized BMS control, advanced monitoring, and reliable communication for commercial building automation applications.

Mitsubishi PAC-UKPRC001-CN-1 BACnet Modbus

SPECIFICATIONS
• Allows for a third party building management system to control
a Mitsubishi Electric CITY MULTI®, M-Series, or P-Series
indoor unit
• One MelcoBEMS MINI (A1M) per indoor unit
• Indoor Unit Connection: CN105 – IT Terminal
• 12VDC power from indoor unit CN105 Connector
• Compatible with MAC-333IF connector CN505 IT
*requires additional 12VDC power supply
• Communication protocols supported:
- BACnet® MSTP (RS-485) with addressing 1-127
- MODBUS RTU (RS-485) with addressing 1-247

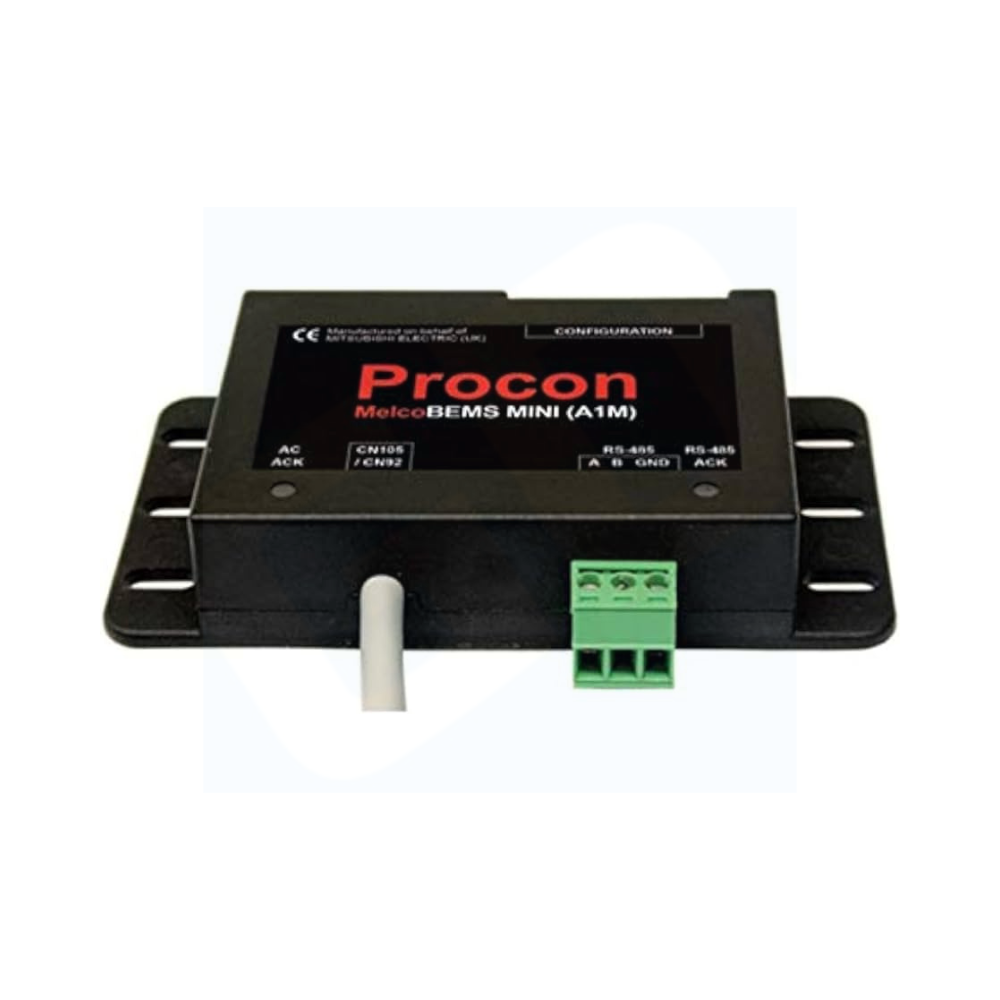

• LED light notification status of valid communication between:
- Procon and Indoor unit
- Procon and BACnet®/MODBUS networks

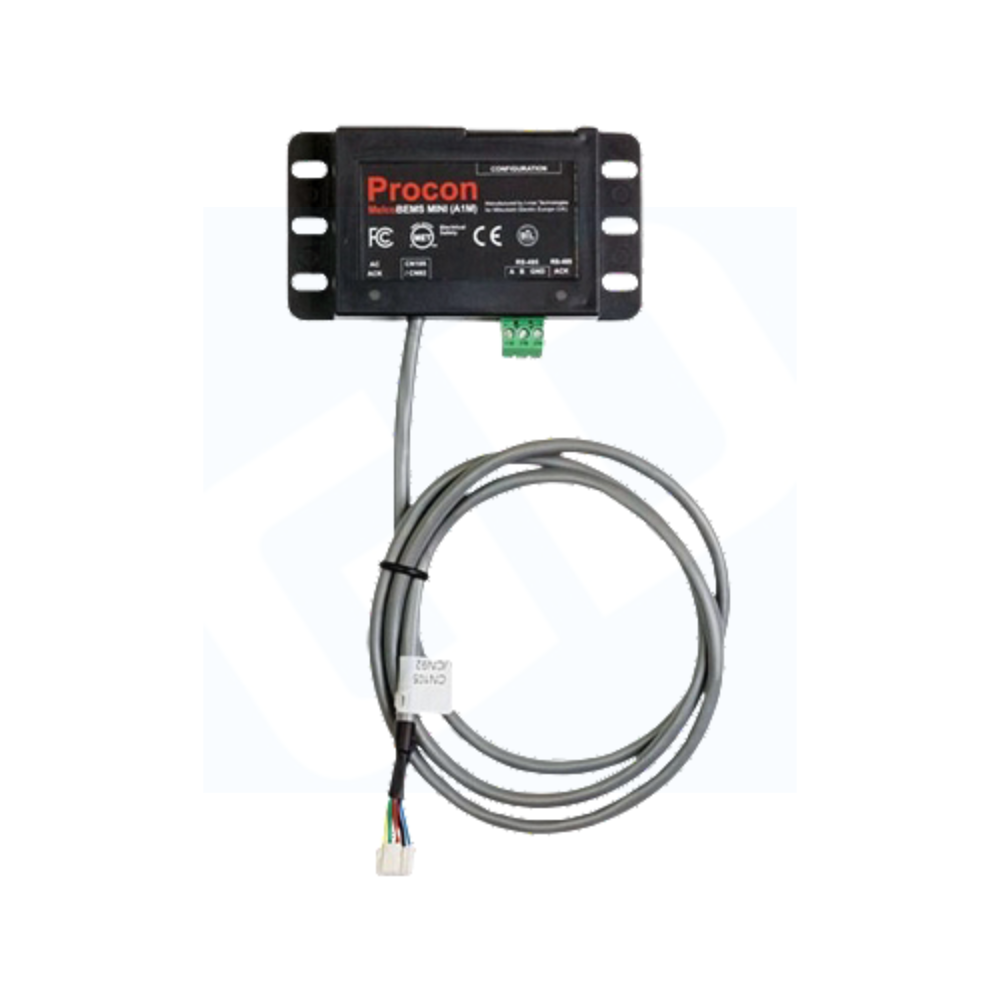

• Approximate cable length is 37 in. (940 mm)
• Dimensions: 3.74 x 2 x 0.75 in. (95 x 51 x 19 mm)
• Weight: 3.0 oz (85 g)
