Mitsubishi MXZ-SM96TL is a 92,000 BTU 3-phase smart multi outdoor unit supporting up to 30 indoor units. Delivers powerful heating to -13°F, high efficiency, and long piping flexibility for large residential or light commercial multi-zone systems.

Unit Type: Outdoor Unit
Product Line: MXZ Series
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: Multi
System Capacity: 96,000 BTU
Line Set Size: 3/8" x 7/8"
WiFi Enabled: Yes
WiFi Built In: No

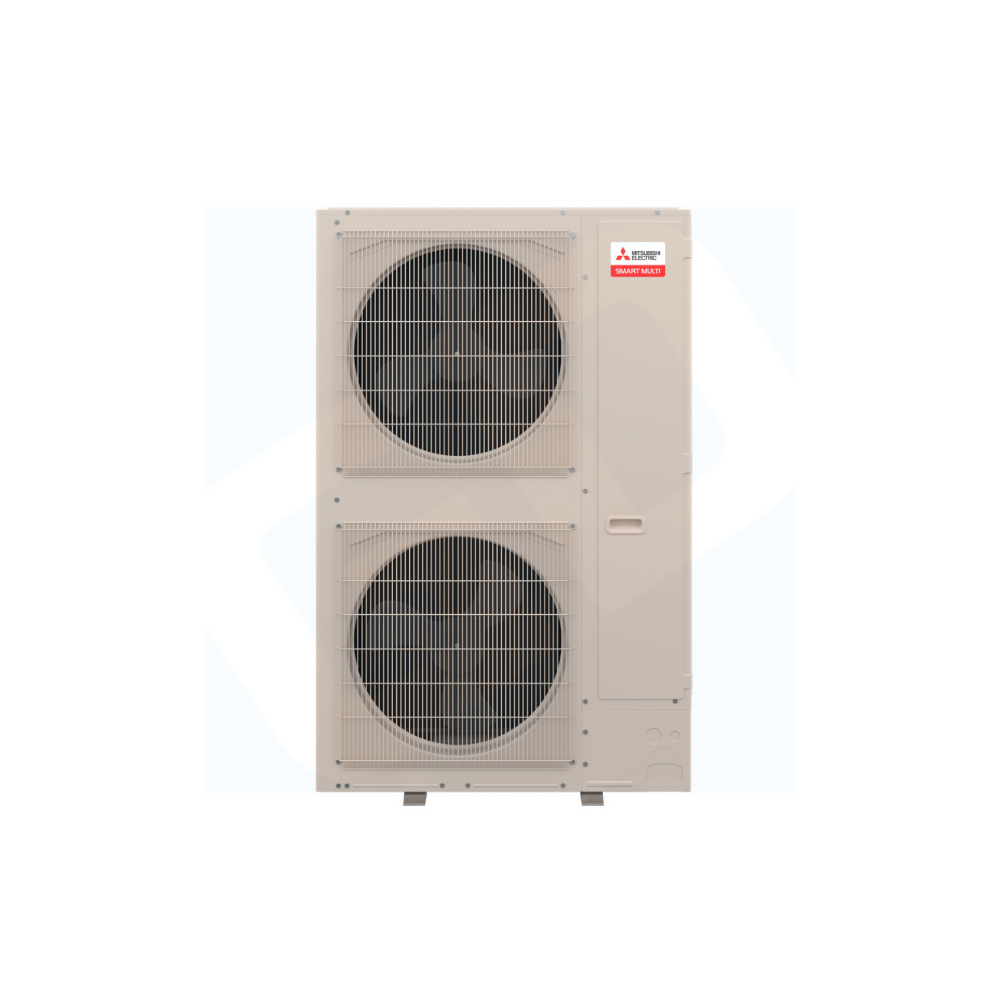

Outdoor Unit MXZ-SM96TL

Heating Capacity up to 108,000 BTU
Heating Minimum Temp -24 F
Room Cooling/Heating Capacity up to 3,500 sq ft

GENERAL FEATURES
• Multiple IDU Connection: Connect up to 30 indoor units depending on
MXZ-SM capacity
• Three Phase: Three-phase 208/230V operation for use in light commercial
applications
• Static Fan Adjustment: Outdoor unit fan can be adjusted to allow 0.12
in.w.g. static pressure by dip switch setting change
• Compatibility: Compatible with M- and P-Series and CITY MULTI® indoor
units (branch box required for connection with M- and P-Series)
• ASTM B117 : Outdoor unit has passed ASTM B117 testing for 2,000hrs
with additional coating on PCB and base panel
