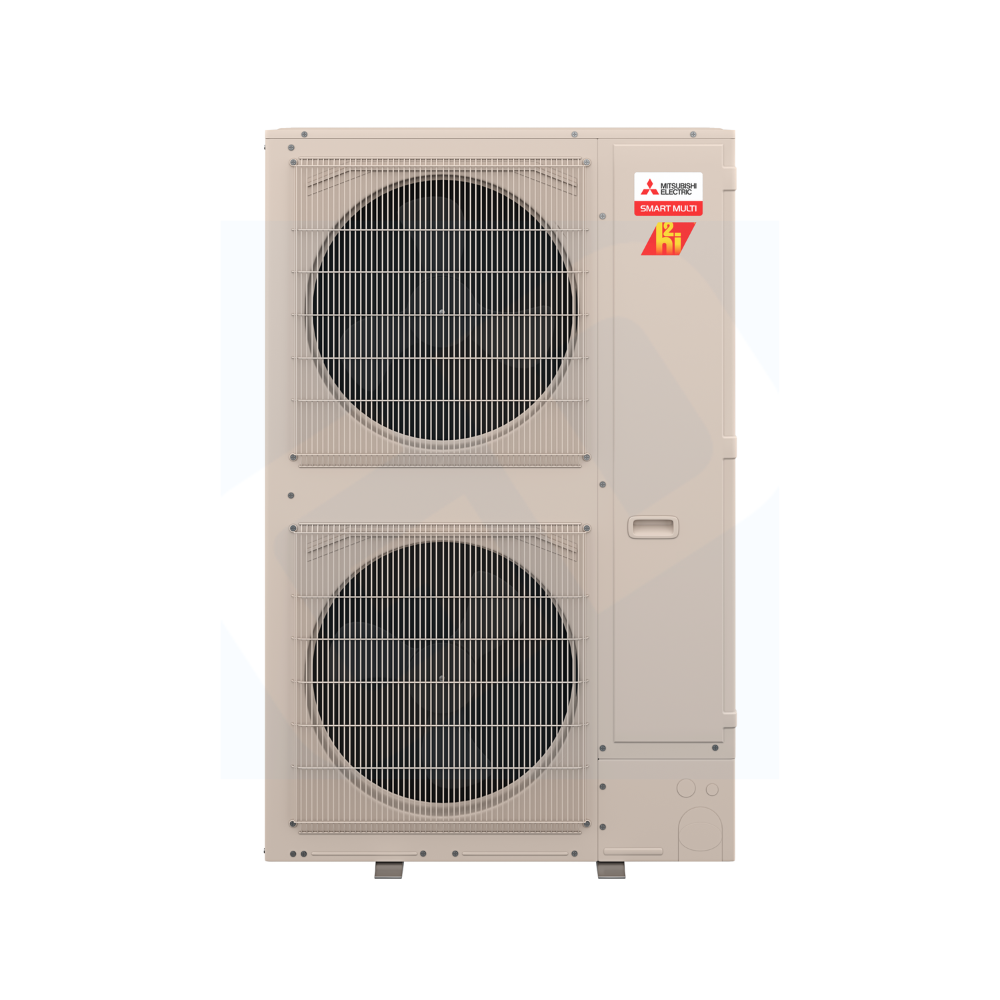

The Mitsubishi 60,000 BTU low temperature multi-zone outdoor heat pump (MXZ-SM60NLHZ) is an extremely efficient heating and cooling option that can handle four zones at significantly lower temperature levels.
This specific outdoor unit allows you to connect a wide variety of indoor units that can range up to 8 with the branch box or up to 12 without the branch box (City Multi). The MXZ-SM60NLHZ is part of Mitsubishi's Smart Multi Series, catering to residential or commercial applications. This outdoor unit is perfect for customers located in regions that experience consistent sub 0 temperatures.

This system provides 100% of heating capacity at -5˚F. This system uses the new R454B refrigerant. This is a new option as the R410A line did not have a 60,000 BTU hyper heat option.

Unit Type: 5.0 Ton Inverter Condenser
Product Line: Smart Multi Series
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes (Hyper-Heating)
Number of Zones: 8 (with branch box) or 12 (without branch box)
Unit Size: 60,000 BTU
Required Install Kit: Branch Box (M-P Series)
Refrigerant Type: 454B

Outdoor Unit MXZ-SM60NLHZ

(Non-Ducted // Mixed // Ducted)
Cooling at 95F
- Maximum Capacity Btu/h 60,000 // 60,000 // 60,000
- Rated Capacity Btu/h 60,000 // 60,000 // 60,000
- Minimum Capacity Btu/h 16,000 // 16,000 // 16,000
- Maximum Power Input W 5,000 // 5,692 // 6,385
- Rated Power Input W 5,000 // 5,692 // 6,385
- Power Factor (208V) % 98.1 // 98.1 // 98.1
- Power Factor (230V) % 98.1 // 98.1 // 98.1
Heating at 47F
- Maximum Capacity Btu/h 66,000 // 66,000 // 66,000
- Rated Capacity Btu/h 64,500 // 64,500 // 64,500
- Minimum Capacity Btu/h 13,500 // 13,500 // 13,500
- Maximum Power Input W 4,720 // 5,230 // 5,865
- Rated Power Input W 4,610 // 5,120 // 5,730
- Power Factor (208V) % 98.1 // 98.1 // 98.1
- Power Factor (230V) % 98.1 // 98.1 // 98.1
Heating at 17F
- Maximum Capacity Btu/h 72,500 // 72,500 // 72,500
- Rated Capacity Btu/h 44,500 // 44,500 // 44,500
- Maximum Power Input W 9,045 // 9,582 // 10,120
- Rated Power Input W 4,500 // 4,860 // 5,220
Heating at 5F
- Maximum Capacity Btu/h 62,000 // 61,000 // 60,000
- Maximum Power Input W 9,085 // 9,410 // 9,770
Heating at -13F
- Maximum Capacity Btu/h 52,500 // 52,500 // 52,500
- Maximum Power Input W 8,550 // 8,937 // 9,325
SEER2: 23 // 20.50 // 18
EER2: 13.10 // 11.55 // 10
HSPF2: 11.50 // 10.75 // 10
Heating Minimum Temp -13 F
Cooling Minimum Temp 14 F
Room Cooling/Heating Capacity up to 2000 sq ft

• Advanced Frost Detection: Advanced Frost Detection provides longer continuous heating during frigid temperatures, maintaining comfort by reducing the number of defrost cycles.
• Blue Fin Coating: Anti-corrosion coating that protects the outdoor heat exchanger against salt, sulfur, and other airborne contaminants that impact the efficiency and performance of the outdoor units.
• Flash Injection: Flash Injection enables optimum compressor performance when it is running at higher speeds to maintain indoor comfort during cold temperatures.
• H2i® Hyper-Heating: 100% heating performance down to 5° F with guaranteed heating down to -13° F.
• Hot Start: The system will warm up before blowing air, preventing blasts of cold air at start-up.
• Multi Zone: A multi-zone unit provides personalized comfort control to multiple spaces.
• Seacoast Protection: Designed to protect against the corrosive effects of environments that are in close proximity to the sea
