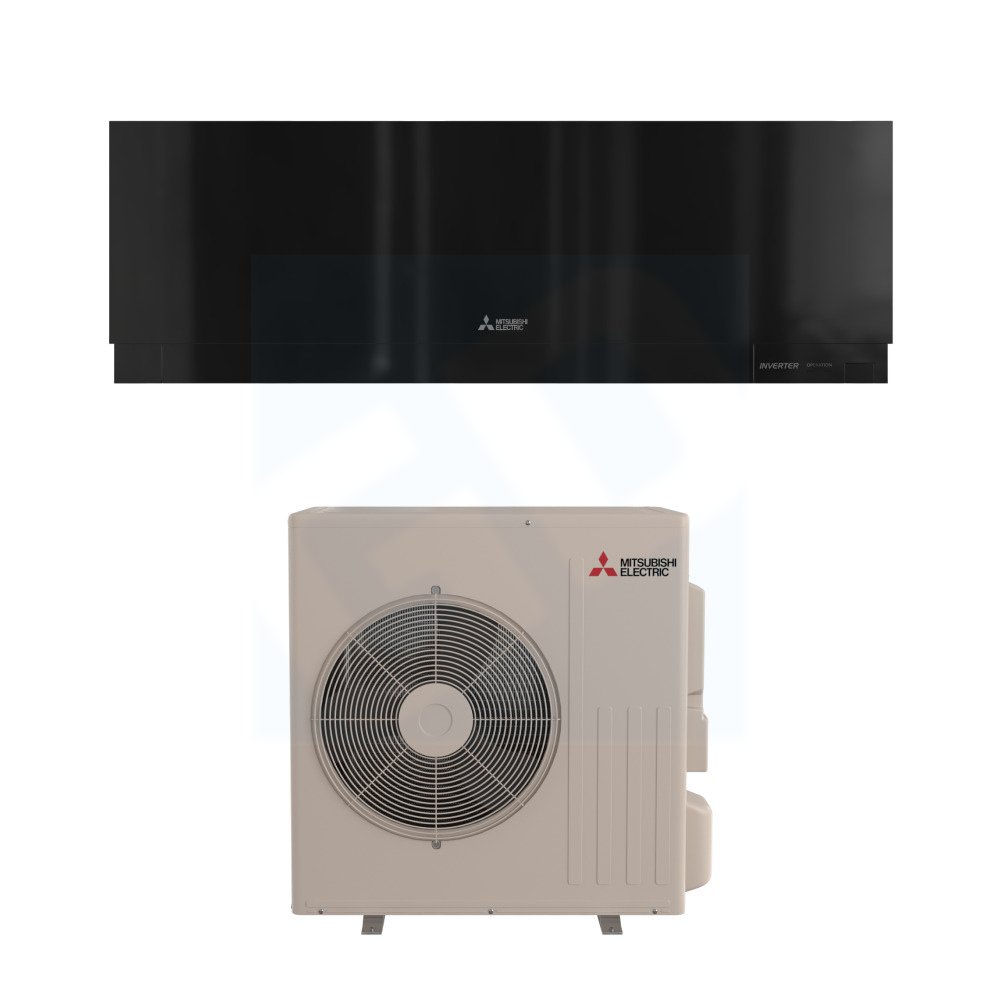

Mitsubishi MSZ-EX18NLB & SUZ-AA18NL 18,000 BTU 17.5 SEER2 Wall Mounted Heat Pump System - R454B

In stock
SKU: MSZEX18NLB/SUZAA18NL
Call for Best Price This Week
Free Shipping for Orders Above $399
10 Year Warranty When Registered
Regular price $3,413.14

The MSZ‑EX18NLB & SUZ‑AA18NL system delivers 18,000 BTU cooling and up to 21,700 BTU heating for rooms up to 750 sq ft. With inverter tech, quiet operation, and advanced filtration, it’s a reliable, energy-efficient single- or multi-zone ductless solution.

Out of the Box: 5 Years Parts/ 7 Years Compressor

With Online Registration: 10 Years Parts/Compressor

Unit Type: Single & Multi Zone
Product Line: EX Series
Operating Mode: Cooling & Heating
Low Ambient Heat: No
Number of Zones: 1 & Multi
System Capacity: 18,000 BTU
Line Set Size: 1/4" x 1/2"
WiFi Enabled: Yes with Comfort App
WiFi Built In: Yes

Indoor Unit MSZ-EX18NLB
Outdoor Unit SUZ-AA18NL
Remote Controller Included

Cooling Capacity up to 16,400 BTU
Heating Capacity up to 21,700 BTU
SEER2 17.5
EER2 11.7
HSPF2 10.6
Heating Minimum Temp -14 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 750 sq ft

INDOOR UNIT FEATURES
• Dual Barrier Coating: The patented Dual Barrier Coating reduces the collection of contaminants like dust, fibers, smoke, and oil on the inner surface of
the heat pump, resulting in optimal airflow and easier maintenance.
• Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased
slightly, which saves energy, while maintaining comfort.
• Modern, sleek design
• Multiple control options including: Back-lit screen hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired
and wireless controllers
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• High-performance grooved piping : High-performance grooved piping for increased heat exchange efficiency
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.

Airflow Cooling CFM, Dry: 208-248-288-343-408
Airflow Cooling CFM, Wet: 188-223-259-309-367
Airflow Heating CFM, Dry: 232-264-313-347-497
Noise Level dB(A), Cooling: 30-33-36-40-43
Noise Level dB(A), Heating: 30-33-37-43-49
Size W x D x H: 34-13/16" x 7-11/16" x 11-3/4"
Weight: 26 lbs
