Mitsubishi MLZ-KX12NL & SUZ-AA12NL: 12,000 BTU ceiling cassette heat pump system with INVERTER tech, quiet operation, and Energy Star certification. Ideal for up to 500 sq ft, with smart controls, horizontal airflow, and a sleek, space-saving ceiling-mounted design.

Unit Type: Single Zone
Product Line: KX Series
Operating Mode: Cooling & Heating
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: Yes

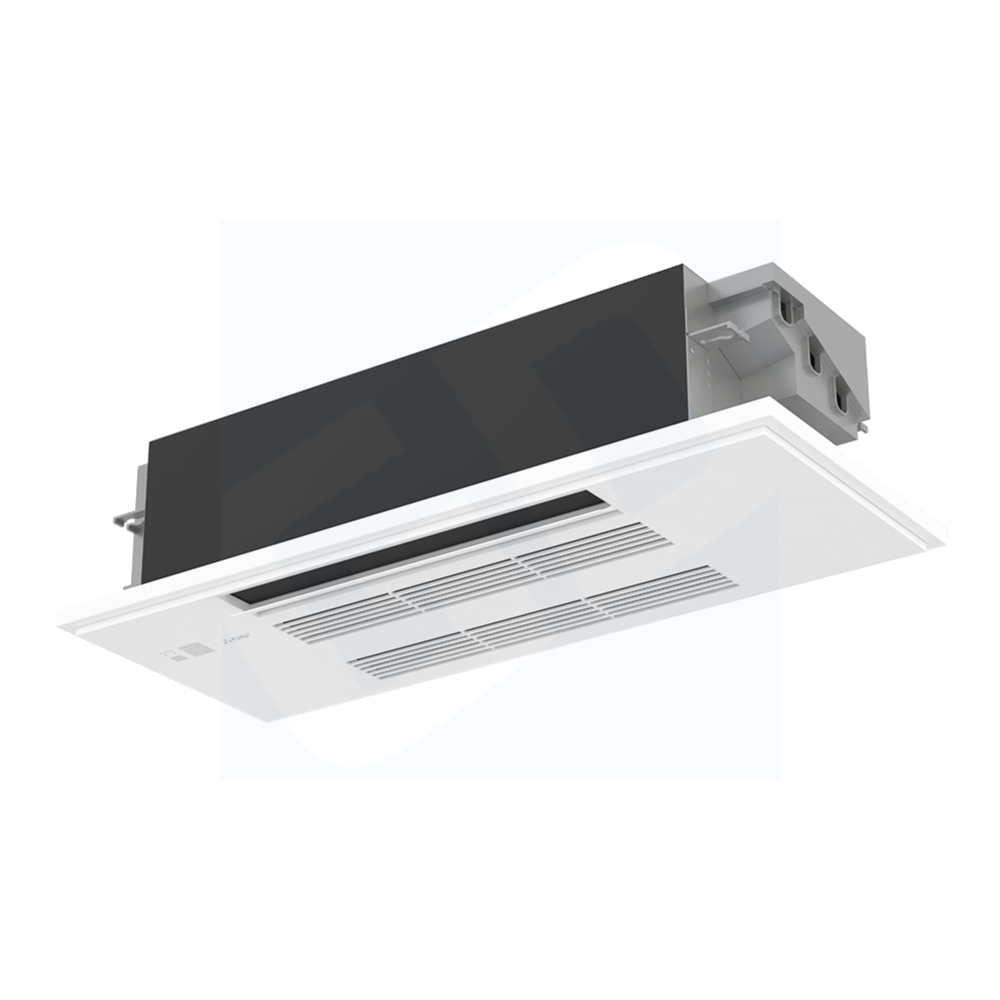

Indoor Unit MLZ-KX12NL

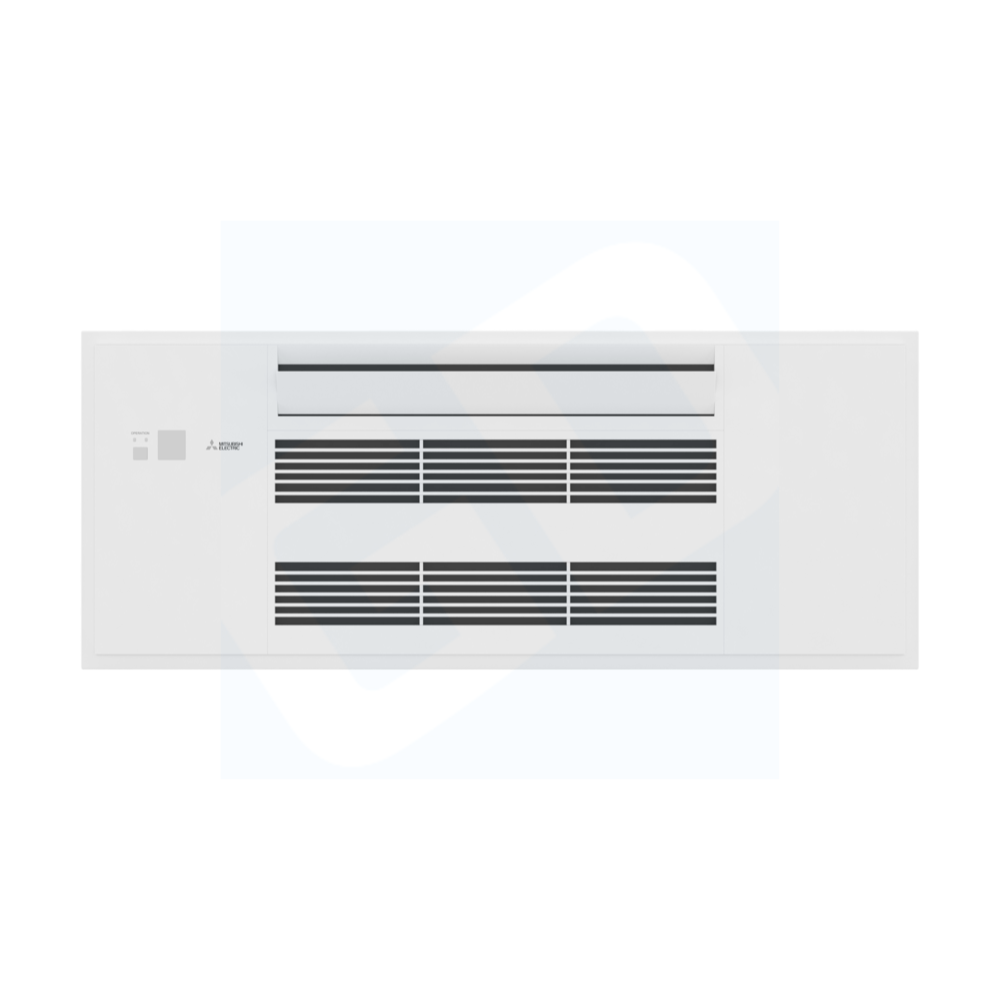

Grille MLP-449WU

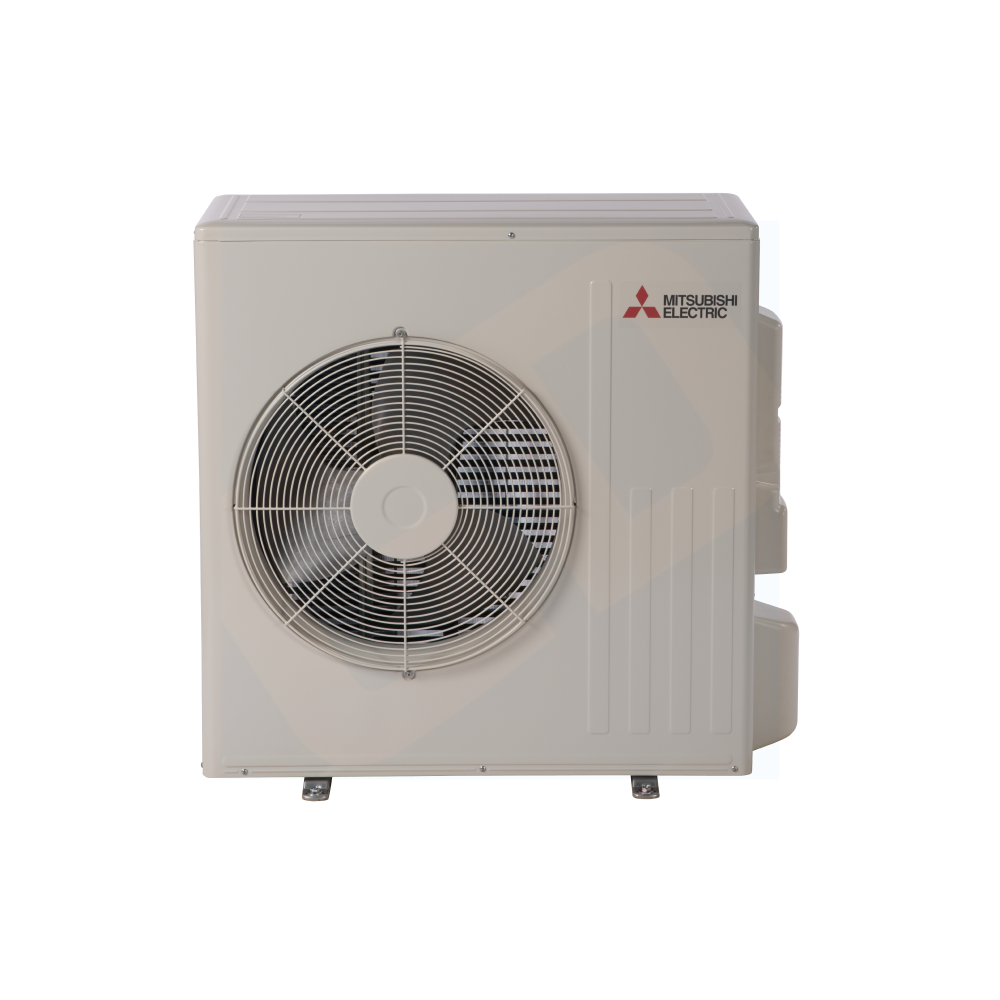

Outdoor Unit SUZ-AA12NL
Remote Controller INCLUDED

Cooling Capacity up to 11,300 BTU
Heating Capacity up to 14,600 BTU
SEER2 20.7
EER2 11.8
HSPF2 10
Heating Minimum Temp -14 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 500 sq ft

INDOOR UNIT FEATURES
• Adjustable fan speeds and vane directions
• Auto Vane Control: Outlet vanes can be moved left and right, and up and down using the remote controller. This improved air flow control feature solves
the problem of drafts
• Built-in condensate lift mechanism (19.6”): Reduces the need for an additional pump to remove condensate water
• Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased
slightly, which saves energy, while maintaining comfort.
• Fits between 16” joists spacing
• Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless
controllers
• Serviceable from the bottom (electrical and flare connections)
• Stylish, square design panel
• Washable antibacterial and deodorizing filter
• Weekly Timer Function: Easily set desired temperatures and operation ON/OFF times to match lifestyle patterns. Reduce wasted energy consumption
by using the timer to prevent forgetting to turn off the unit and eliminate temperature setting adjustments.
• Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more.
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• High-performance grooved piping : High-performance grooved piping for increased heat exchange efficiency
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.

Airflow Cooling CFM, Dry: 212-258-297-332
Airflow Heating CFM, Dry: 212-272-311-350
Noise Level dB(A), Cooling: 27-32-36-40
Noise Level dB(A), Heating: 26-32-36-40
Unit Size W x D x H: 43-3/8" x 14-3/16" x 7-5/16"
Weight: 34 lbs
