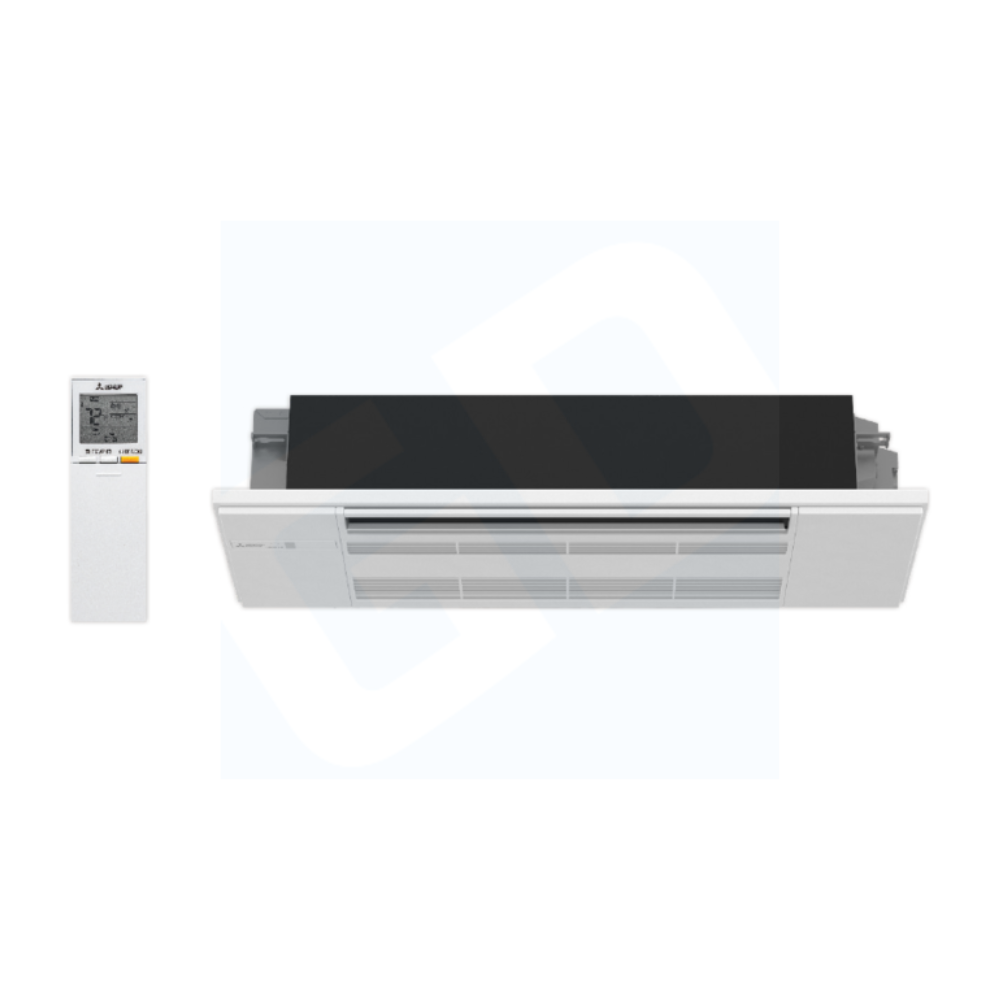

Mitsubishi EZ FIT MLZ-KX09NL 9,000 BTU M-Series 1-Way Ceiling Cassette multi-zone only air handler. This is an extremely efficient heating and cooling option for a smaller-sized room up to 350 sq ft, that can fit between 16" o.c. ceiling joists. This indoor unit must be connected to a 454B multi-zone or single zone outdoor unit. This product option does not come with the mandatory grille. See recommended accessories

Unit Type: Ceiling Cassette 1-Way
Product Line: M-Series EZ FIT
Operating Mode: Cooling & Heating
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: Yes

Indoor Unit MLZ-KX12NL
Limited Mounting and Insulating Hardware (Indoor unit)
Remote Controller (Included with indoor unit)
Grille sold separately

Cooling Capacity up to 12,000 BTU
Heating Capacity up to 15,400 BTU
Room Cooling/Heating Capacity up to 500 sq ft

GENERAL FEATURES
• Adjustable fan speeds and vane directions
• Auto Vane Control: Outlet vanes can be moved left and right, and up and down using the remote controller. This improved air flow control feature solves the problem of drafts
• Built-in condensate lift mechanism (19.6”): Reduces the need for an additional pump to remove condensate water
• Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort.
• Fits between 16” joists spacing
• Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
• Serviceable from the bottom (electrical and flare connections)
• Stylish, square design panel (sold separately)
• Washable antibacterial and deodorizing filter
• Weekly Timer Function: Easily set desired temperatures and operation ON/ OFF times to match lifestyle patterns. Reduce wasted energy consumption
by using the timer to prevent forgetting to turn off the unit and eliminate temperature setting adjustments.
• Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more.

Airflow Cooling CFM, Dry: 212, 258, 297, 332
Airflow Heating CFM, Dry: 212, 272, 311, 350
Noise Level dB(A), Cooling: 27, 32, 36, 40
Noise Level dB(A), Heating: 26, 32, 36, 40
Unit Size W x D x H: 43-3/8" x 14-3/16" x 7-5/16"
Weight: 34 lbs
