Mitsubishi MFZ-KX12NL & SUZ-AA12NL: 12,000 BTU floor-mounted heat pump for ~500 sq ft. INVERTER compressor, Blue Fin coating, Nano Platinum filter, Wi-Fi control. Quiet, efficient, EER2 12.6, HSPF2 8.7. Ideal for small spaces with flexible mounting and advanced controls.

Unit Type: Single Zone
Product Line: KX Series
Operating Mode: Cooling & Heating
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes with Comfort App
WiFi Built In: Yes

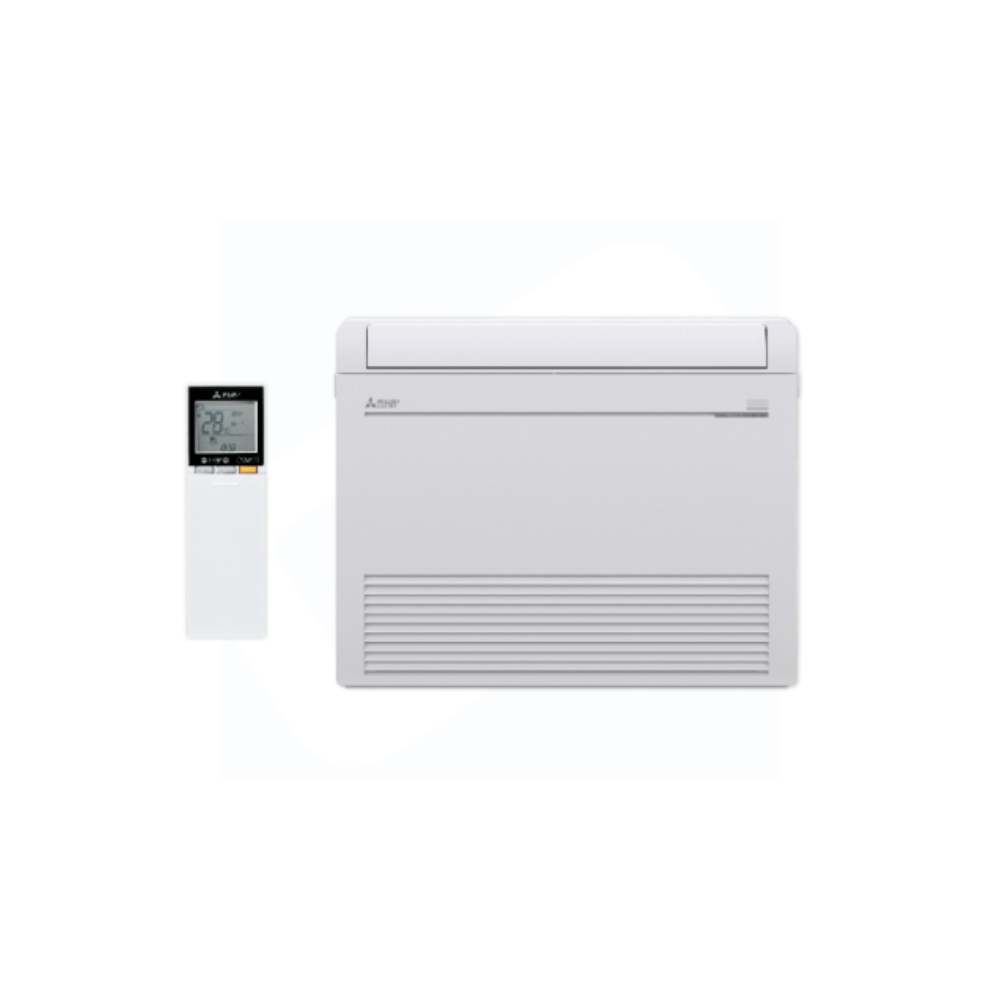

Indoor Unit MFZ-KX12NL
Outdoor Unit SUZ-AA12NL
Remote Controller INCLUDED

Cooling Capacity up to 12,000 BTU
Heating Capacity up to 15,000 BTU
SEER2 19.6
EER2 12.6
HSPF2 8.7
Heating Minimum Temp -14 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 500 sq ft

INDOOR UNIT FEATURES
• Econo Cool: Temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which
saves energy, while maintaining comfort.
• Floor front panel access to the filter for ease of cleaning
• Mounts on floor or 5” above floor
• Multi-flow Vane for faster heating
• Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless
controllers
• Multiple fan speed options: Low, Medium, High, Powerful, Auto
• Nano Platinum Filter: This filter has a large capture area and incorporates nanometer-sized platinum-ceramic particles and is designed to reduce the
presence of certain nonliving particles, while deodorizing the circulating air.
• Perfect for difficult areas that may be smaller or don’t have usable space on the walls
• Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature.
• Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Unit can be recessed mounted into wall
• Up and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontal
vanes.
• Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more.
OUTDOOR UNIT FEATURES
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused
by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• High-performance grooved piping : High-performance grooved piping for increased heat exchange efficiency
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when
power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize
compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.

Airflow CFM Cooling, Dry 138-198-272-360-417
Airflow CFM Cooling, Wet 117-168-231-306-417
Airflow CFM Heating, Dry 138-198-272-360-417
Noise Level dB(A), Cooling: 21-27-34-41-46
Noise Level dB(A), Heating: 21-27-34-41-46
Size W x D x H: 29-1/2"x 8-7/16"x 23-5/8"
Weight: 33 lbs
