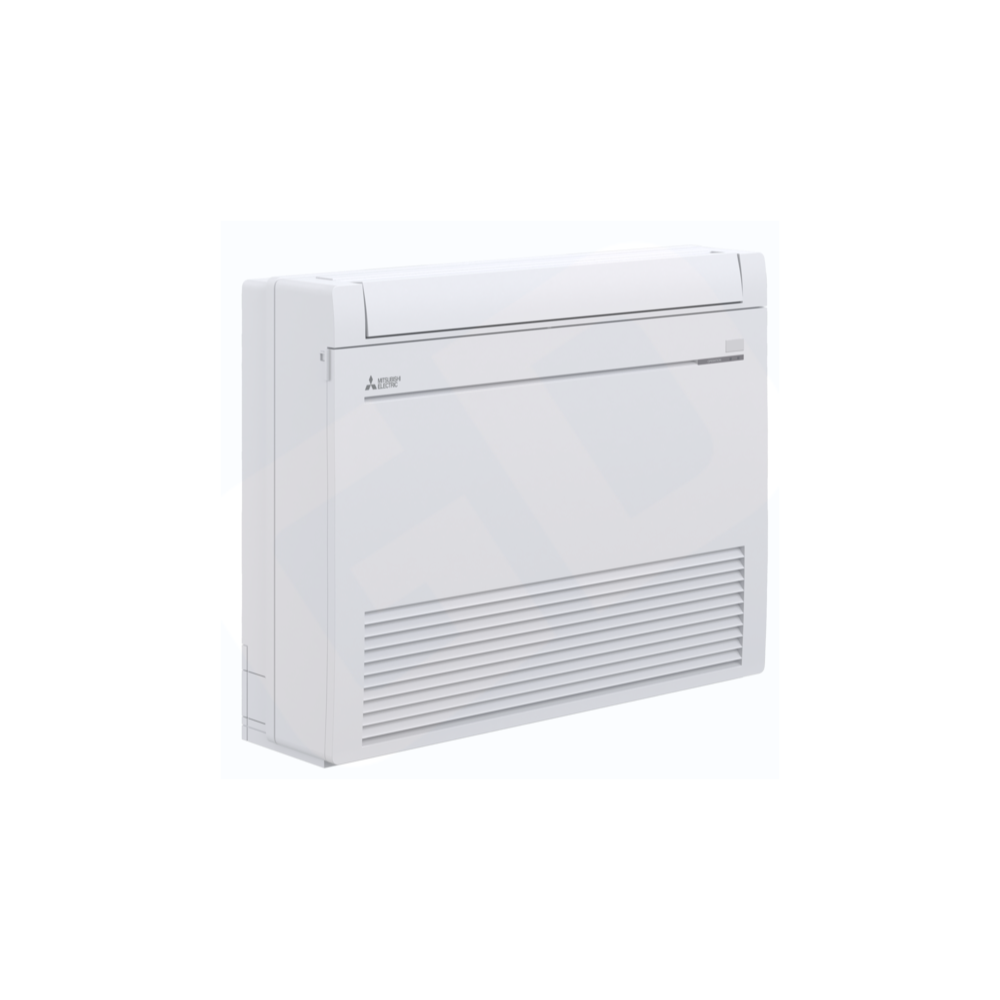

The Mitsubishi MFZ-KX09NL is a 9,000 BTU floor-mounted indoor unit offering quiet, energy-efficient heating and cooling. With a sleek design, advanced airflow, and INVERTER technology, it’s ideal for small spaces and pairs with SUZ-AA09NL for reliable, year-round comfort.

Unit Type Floor Mounted
Product Line M-Series (KX)
Operating Mode Cooling & Heating
Number of Zones 1
System Capacity 9,000 BTU
Line Set Size 1/4" x 3/8"
WiFi Enabled Yes with Comfort App
WiFi Built In Yes

Indoor Unit MFZ-KX09NL
Remote Controller INCLUDED

Cooling Capacity up to 9,000 BTU
Heating Capacity up to 13,000 - 15,000 BTU
SEER2 17 - 21.6
EER2 15.5 - 12.6
HSPF2 10 - 12.3
Heating Minimum Temp -22.5 F/-14 F
Cooling Minimum Temp -1 F
Room Cooling/Heating Capacity up to 350 sq ft

GENERAL FEATURES
• Econo Cool: Temporarily and automatically adjusts the airflow based on
heat exchanger temperature. The set temperature is increased slightly,
which saves energy, while maintaining comfort.
• Floor front panel access to the filter for ease of cleaning
• Mounts on floor or 5” above floor
• Multi-flow Vane for faster heating
• Multiple control options including: Hand-held Remote Controller (provided
with unit), comfort app, third-party interfaces and both wired and wireless
controllers
• Multiple fan speed options: Low, Medium, High, Powerful, Auto
• Nano Platinum Filter: This filter has a large capture area and incorporates
nanometer-sized platinum-ceramic particles and is designed to reduce the
presence of certain nonliving particles, while deodorizing the circulating air.
• Perfect for difficult areas that may be smaller or don’t have usable space
on the walls
• Powerful Mode: Temporarily drops or raises the set point and fan speed in
order to quickly bring the room to the desired temperature.
• Quiet operation: Outdoor units are as quiet as a typical conversation, and
most indoor units are whisper quiet.
• Unit can be recessed mounted into wall
• Up and down swing-mode: An indoor unit with this capability can move
air up and down throughout the room like an oscillating fan using the
horizontal vanes.
• Wi-Fi enabled units pair with the Comfort app for complete control over
temperature, fan speeds, modes, schedules, and more.

Airflow CFM Cooling, Dry 138-198-272-360-417
Airflow CFM Cooling, Wet 117-168-231-306-354
Airflow CFM Heating, Dry 138-191-254-328-417
Noise Level dB(A), Cooling: 21-27-34-41-46
Noise Level dB(A), Heating: 21-27-34-40-46
Size W x D x H: 29-1/2"x 8-7/16"x 23-5/8"
Weight: 33 lbs
