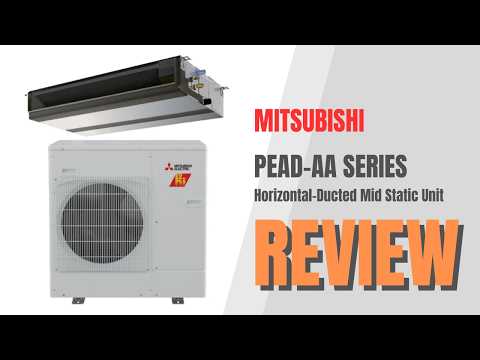

The Mitsubishi 36,000 BTU horizontal ducted single zone hyper-heat heat pump (PEAD-AA36NL & SUZ-AK30NLHZ) is an extremely efficient heating and cooling option that can fit in a limited space while still providing amazing comfort. This quiet beast of a single zone is built for residential homes, retail shopping centers, larger classrooms, office complexes, conference rooms, ballrooms, fitness centers, and more.

This particular single zone system has a M-series outdoor that does not provide cooling down to 0 F, and provides heating down to -13 F. Although this single zone can be used in commercial applications, it is mainly for residential purposes due to its cooling limitations.

This single zone unit runs on a variable speed INVERTER-driven M-series compressor to save you money while it runs. It is energy star certified and is built to be an efficient system for your home or business. This single zone unit is perfect for customers that have limited space but want a great system.

Unit Type Horizontal Ducted
Product Line: P-Series PEAD
Operating Mode: Cooling & Heating
Number of Zones: 1
Unit Size: 36,000 BTU
Line Set Size: 3/8" & 5/8"
Required Install Kit- 3/8" & 5/8"
WiFi Enabled: Yes with Kumo Cloud
WiFi Built In: No

Indoor Unit: PEAD-AA36NL
Outdoor Unit: SUZ-AK30NLHZ
Remote Controller NOT INCLUDED

Cooling Capacity 36,000 BTU
Heating Capacity 42,000 BTU
Connectable Capacity: 30,000 BTU
SEER2: 17.8
EER2: 12.5
HSPF2: 8.6
Heating Lockout Temperature: -22 F
Cooling Minimum Temp 23 F
Room Cooling/Heating Capacity: up to 1250 sq ft

INDOOR UNIT FEATURES
• Unobtrusive ceiling-concealed design for short-run ductwork
• Wide ranging external static pressure (0.14-0.60 in. WG)
• Built-in condensate lift mechanism (up to 27-9/16”)
• Auto fan speed mode
• Optional FB Series filter boxes for easy access and service
• Ideal for residential homes, retail shopping centers, larger classrooms, office complexes, conference rooms, ballrooms, fitness centers, and more

OUTDOOR UNIT FEATURES
• The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
• INVERTER-driven compressor and LEV provide high efficiency and comfort while using only the energy needed to maintain maximum performance
• Hyper-heating performance offers 100% heating capacity at 5° F
• Hot-Start Technology: no cold air rush at equipment startup or when restarting after Defrost Cycle
• Quiet operation
• Built-in base pan heater
• Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Pulse Amplitude Modulation technology
• Flash injection technology for rapid and efficient heating at low ambient temperatures

Noise Level: Cooling: 30-39 decibals
Noise Level: Heating: 30-39 decibals
Size W: 43-5/16"
Size: H: 9-7/8"
Size: D: 28-7/8"
Weight: 69 lbs
