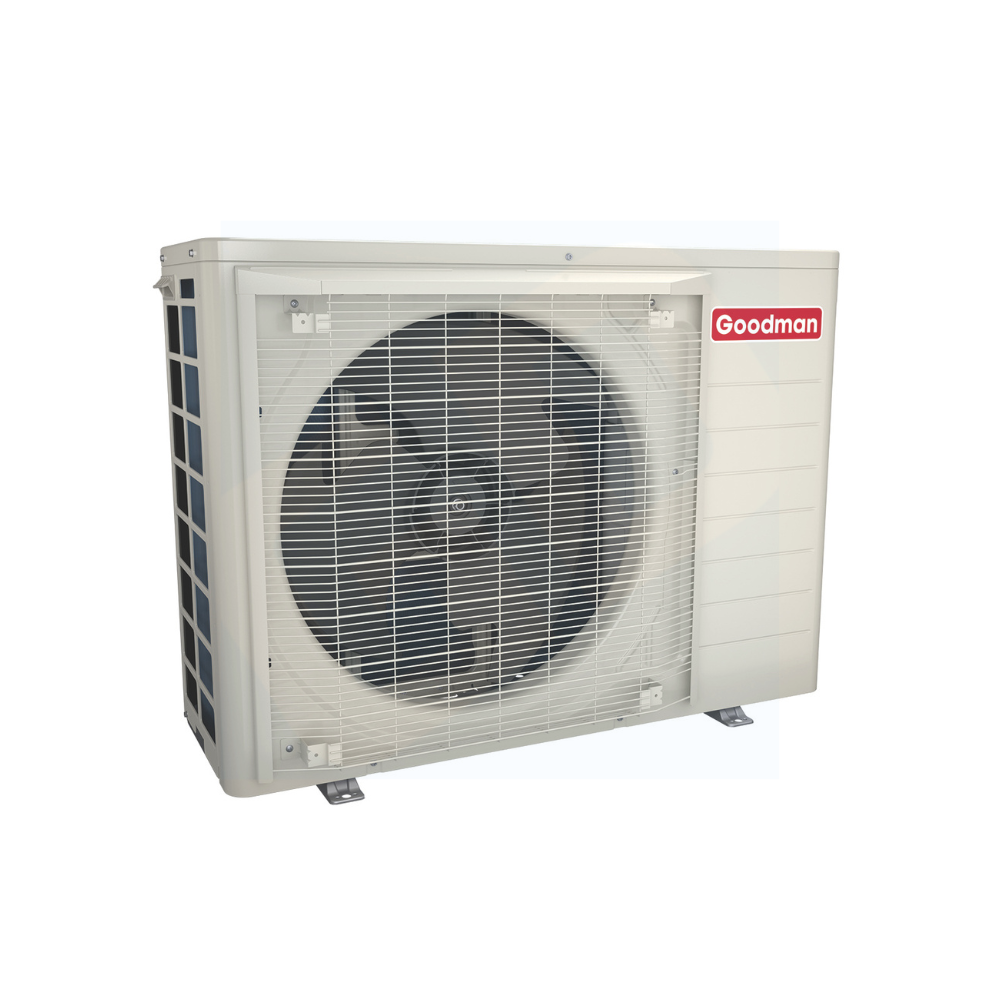

The Goodman GZV6SA1810 1.5 Ton All-Climate Heat Pump R32 is a genuine Goodman all climate heat pump in a 1.5 ton size with 16.9 SEER2 performance and R32. Model GZV6SA1810.

Unit Type: Outdoor Unit Product Line: GZV6S Operating Mode: Heating & Cooling System Capacity: 18,000 BTU, 1.5 Ton Region: All Regions

1 x Goodman GZV6SA1810 1.5 Ton All-Climate Heat Pump R32

Nominal Capacity: 18,000 BTU Performance Class: 16.0-16.9 SEER2 class

• Variable-speed swing compressors
• Quiet digitally commutated fan motor
• High-density compressor sound blanket
• Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
• Proprietary control algorithmic logic
• In communicating mode, only two low voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment
LED display, and fault code storage
• Propietary Inside intelligence for diagnostics
• Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction pressure transducer
• Sweat connection service valves with easy access to gauge ports
• AHRI Certified; ETL Listed
• Heavy-gauge galvanized steel cabinet with grille-style sound control side design
• Custom Ivory white powder-paint finish
• High corrosion (ZAM®), unpainted steel bottom frame and legs
• 500-hour salt-spray tested
• Wire fan discharge grille
• Top and side maintenance access

Capacity
• Cooling (95°F): 17,100 BTU
• Heating (47°F): 17,400 BTU
• Heating (5°F): 13,000 BTU
Compressor: Swing (Inverter-driven)
• Fan Motor: 0.09 HP
Line Set
• ¾" suction / ⅜" liquid
• Refrigerant
• Charge: 74 oz
• Metering: EEV
• Subcool: 10±1°F
Electrical
• 208–230V / 1 phase
• MCA: 12.8
• Max Fuse: 15
Weight
• 122 / 137 lbs

Family: GZV6S Source: official product spec Spec URL: https://www.goodmanmfg.com/docs/librariesprovider6/default-document-library/ss-gzv6s-r32.pdf
