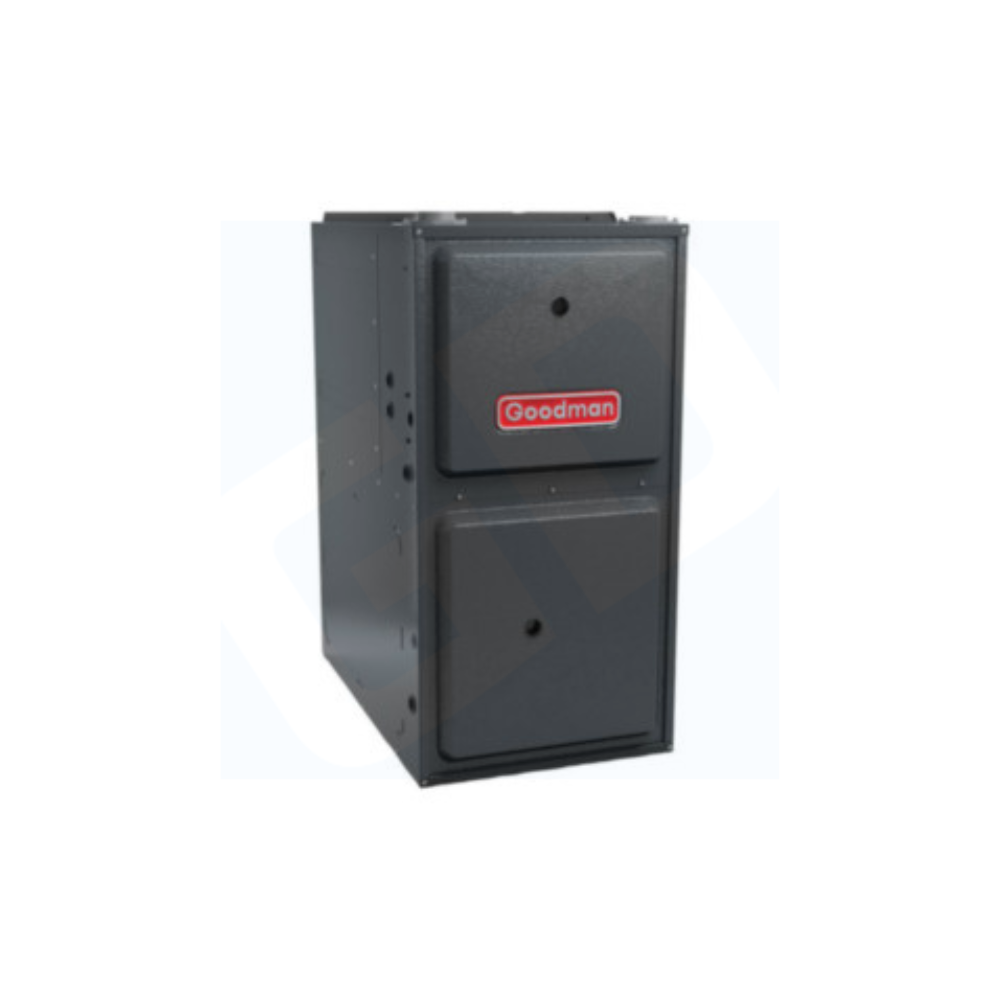

The Goodman GR9T960603AN 60,000 BTU 96% AFUE Gas Furnace Upflow/Horizontal is a genuine Goodman gas furnace rated at 60,000 BTU with 96% AFUE performance. Model GR9T960603AN.

Unit Type: Indoor Unit Product Line: GR9T96 Operating Mode: Heating Input Capacity: 60,000 BTU Configuration: Upflow/Horizontal

1 x Goodman GR9T960603AN 60,000 BTU 96% AFUE Gas Furnace Upflow/Horizontal

Heating Efficiency: 96% AFUE Input Capacity: 60,000 BTU Maximum Airflow Class: 1200 CFM

• Energy-efficient, multi-speed ECM blower motor
• Heavy-duty, aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet, economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Self-diagnostic control board with constant
memory fault code history output to a LED
• Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
• Low continuous fan speed options offer quiet air circulation
• All models comply with California 40 ng/J
Low NOx emissions standard
• Can not be installed in California’s South Coast
AirQuality Management District (SCAQMD)
and San Joaquin Valley Air Pollution Control
District (SJVAPCD).
• AHRI Certified; ETL Listed
• Designed for multi-position installation —
GR9T96: upflow, horizontal left or right
GD9T96: downflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side
venting GR9T96/upflow models only
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Cabinet Width: 14 in Gas Valve: Two-stage gas valve Blower: Multi-speed ECM blower NOx Category: Natural Gas

Family: GR9T96 Source: official product spec Spec URL: https://apps.goodmanmfg.com/brochures/files/68ed1e2342eb4SS-GR9T96_GD9T96-R32.pdf
