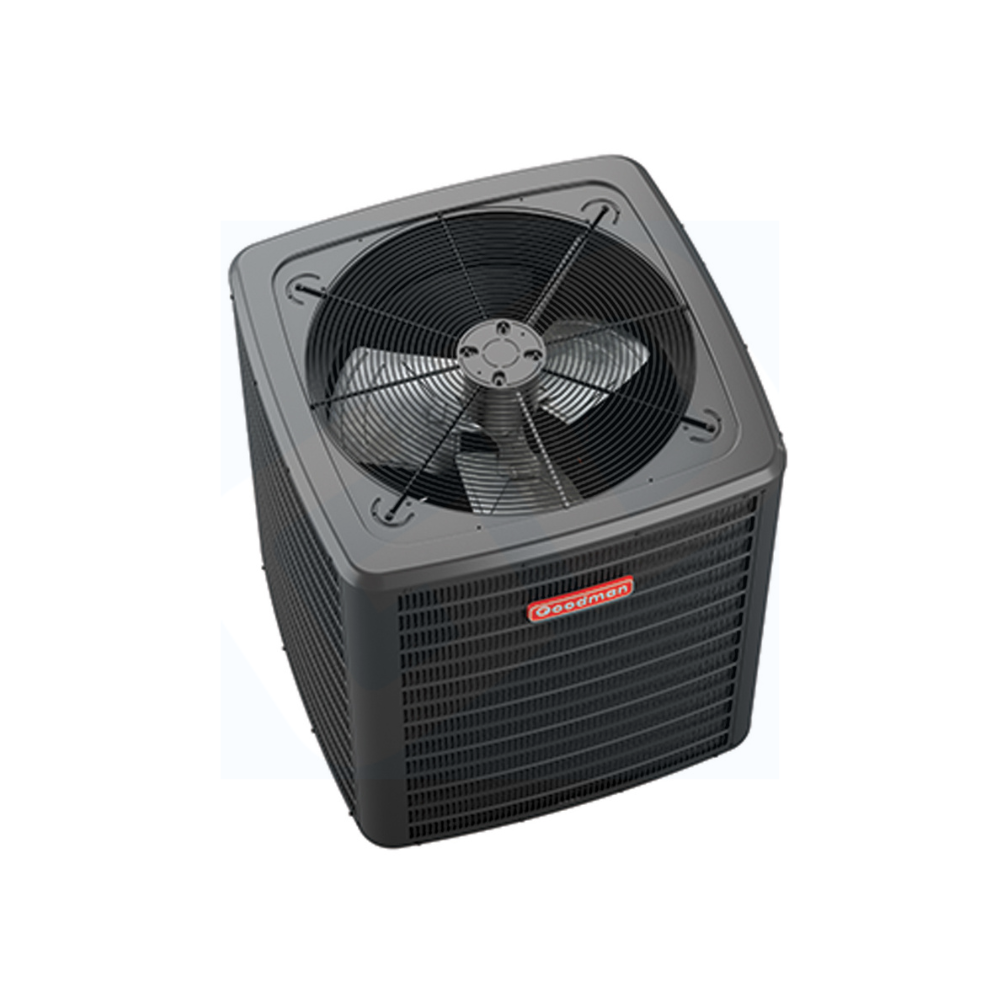

The Goodman GLZS5BA1810 1.5 Ton Heat Pump Condenser R32 is a genuine Goodman heat pump condenser in a 1.5 ton size with 15.9 SEER2 performance and R32. Model GLZS5BA1810.

Unit Type: Outdoor Unit Product Line: GLZS5B Operating Mode: Heating & Cooling System Capacity: 18,000 BTU, 1.5 Ton Region: All Regions

1 x Goodman GLZS5BA1810 1.5 Ton Heat Pump Condenser R32

Nominal Capacity: 18,000 BTU Performance Class: 14.6-15.9 SEER2 class

• High-efficiency scroll compressor
• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5 ton
• Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton • Single-speed PSC condenser fan motor
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Ground lug connection
• Fully enclosed contacter
• Capacitor with extended life
• AHRI Certified; ETL
• Removable grille style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Single panel access to controls with space provided for field-installed accessories

Capacity:
• Cooling: 18,000 BTU/h
• Heating: 18,000 BTU/h
• SEER2: 15.2
• Sound: 70.0 dB
Compressor:
• RLA: 8.3
• LRA: 44.3
• Type: Single Scroll
• Fan Motor: 1/6 HP, FLA 0.95
Refrigeration:
• Lines: 3/8" / 3/4"
• Connection: Sweat
• Charge: 88 oz
Electrical:
• Voltage: 208/230
• MCA: 11.4
• Max Fuse: 15
Weight:
• 171 lbs (ship: 186)

Family: GLZS5B Source: official product spec Spec URL: https://www.goodmanmfg.com/docs/librariesprovider6/default-document-library/ss-glzs5b-r32.pdf
