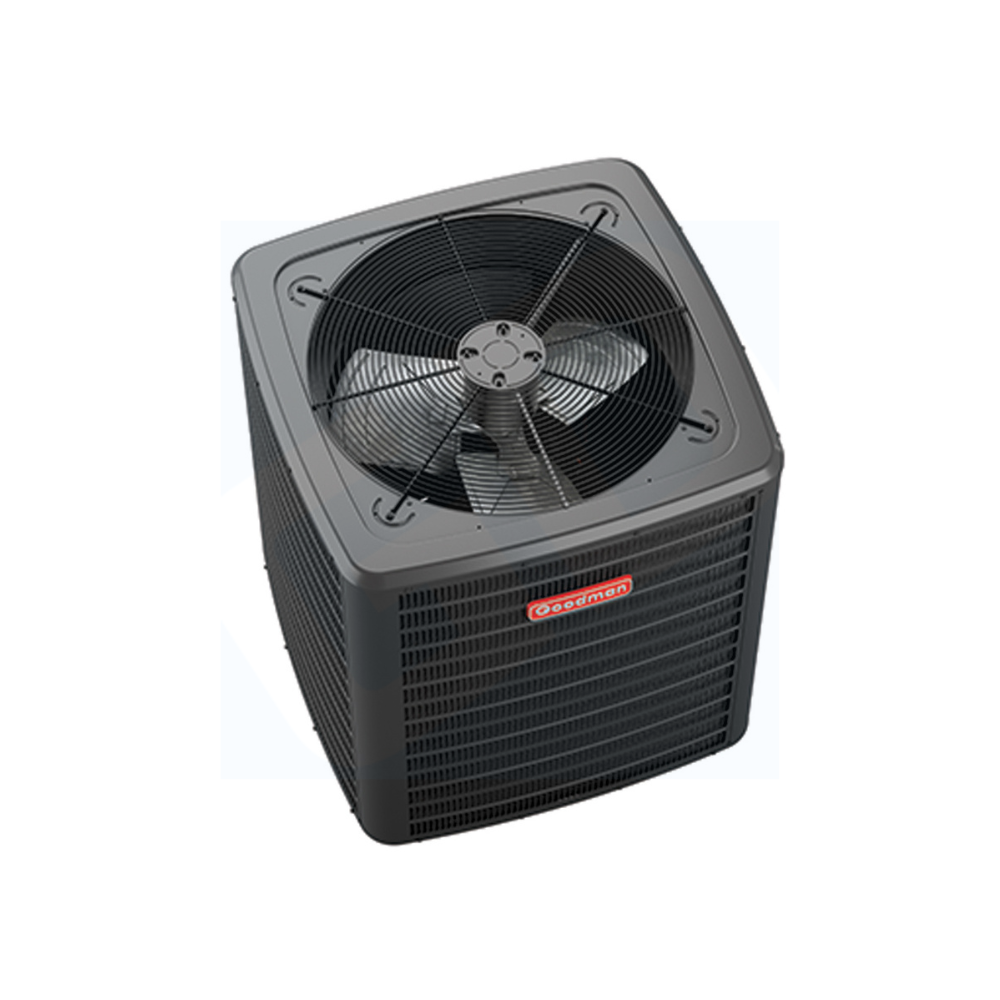

The Goodman GLZS4BA1810 1.5 Ton Heat Pump Condenser R32 is a genuine Goodman heat pump condenser in a 1.5 ton size with 14.5 SEER2 performance and R32. Model GLZS4BA1810.

Unit Type: Outdoor Unit Product Line: GLZS4B Operating Mode: Heating & Cooling System Capacity: 18,000 BTU, 1.5 Ton Region: All Regions

1 x Goodman GLZS4BA1810 1.5 Ton Heat Pump Condenser R32

Nominal Capacity: 18,000 BTU Performance Class: 13.8-14.5 SEER2 class

• High-efficiency compressor
• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
•Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
• Single-speed PSC condenser fan motor
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections
and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Fully enclosed contactor with lug connection
• Ground lug connection
• Capacitors with extended life
• AHRI Certified; ETL Listed
• Removable grille-style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint
finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023
• Florida Building Code unit integrity requirements for hurricane-type winds

Capacity
• Cooling: 18,000 BTU
• Heating: 18,000 BTU
• Sound: 74 dB
Compressor
• Type: Rotary
• Stage: Single
• RLA: 8.2 / LRA: 41.2
• Fan Motor
• PSC, 1/6 HP, 0.95 FLA
Line Set
• ¾" suction / ⅜" liquid
• Refrigerant Charge: 70 oz
Electrical
• 208/230V
• MCA: 11.2
• Max Fuse: 15
Weight
• 150 / 165 lbs

Family: GLZS4B Source: official product spec Spec URL: https://www.goodmanmfg.com/docs/librariesprovider6/default-document-library/ss-glzs4b-r32.pdf
