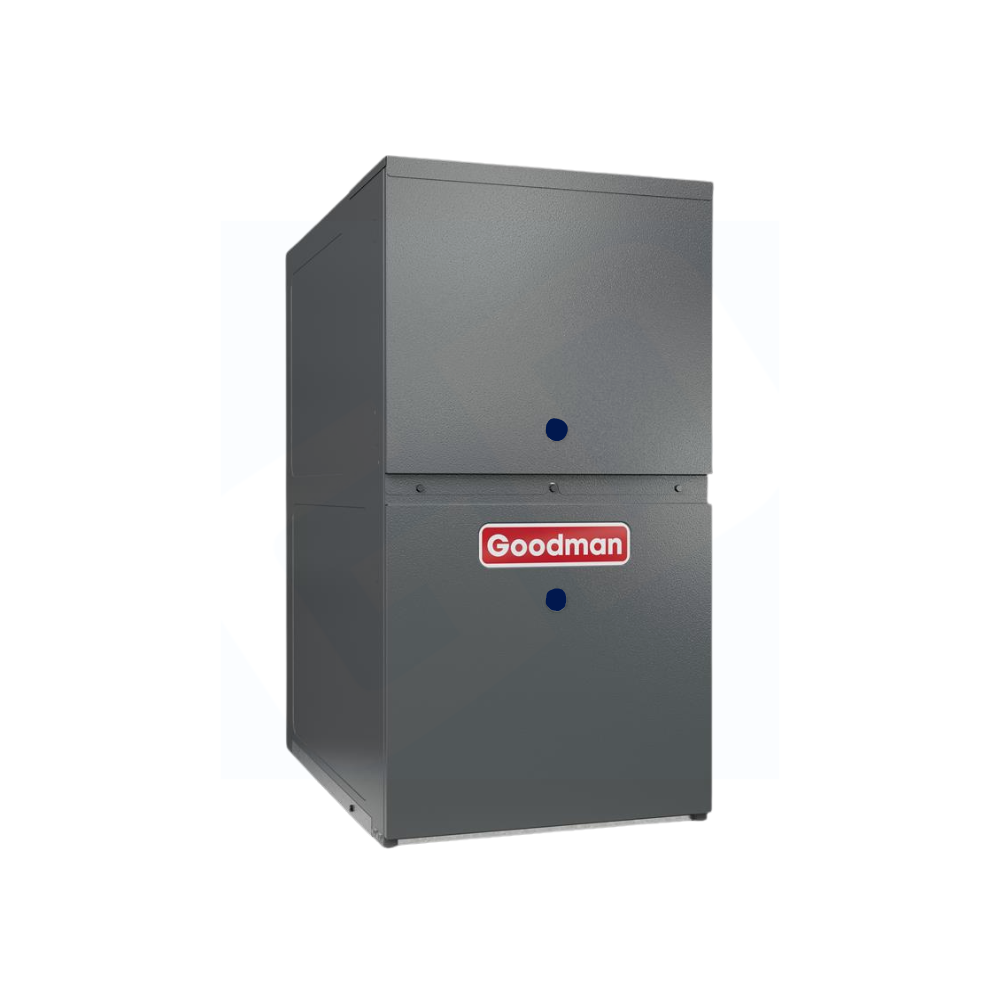

The Goodman GD9S800804BX 80,000 BTU 80% AFUE Gas Furnace Downflow/Horizontal is a genuine Goodman gas furnace rated at 80,000 BTU with 80% AFUE performance. Model GD9S800804BX.

Unit Type: Indoor Unit Product Line: GD9S80 Operating Mode: Heating Input Capacity: 80,000 BTU Configuration: Downflow/Horizontal

1 x Goodman GD9S800804BX 80,000 BTU 80% AFUE Gas Furnace Downflow/Horizontal

Heating Efficiency: 80% AFUE Input Capacity: 80,000 BTU Maximum Airflow Class: 1600 CFM

• Heavy-duty aluminized-steel dual-diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, single-speed draft induced
• Self-diagnostic control board
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor
• California Low NOx emissions models available
• Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified; ETL Listed
• Installation: –GR9S80 -upflow, horizontal left or right–GD9S80- downflow, horizontal left or right
• Convenient left or right connection for gas and electrical service
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Foil faced

Cabinet Width: 17.5 in
Gas Valve: Single-stage gas valve
Blower: Multi-speed ECM blower NOx Category: Low NOx

Family: GD9S80 Source: official product spec Spec URL: https://apps.goodmanmfg.com/brochures/files/68ed1f1dc3ab0SS-GR9S80_GD9S80-R32.pdf
