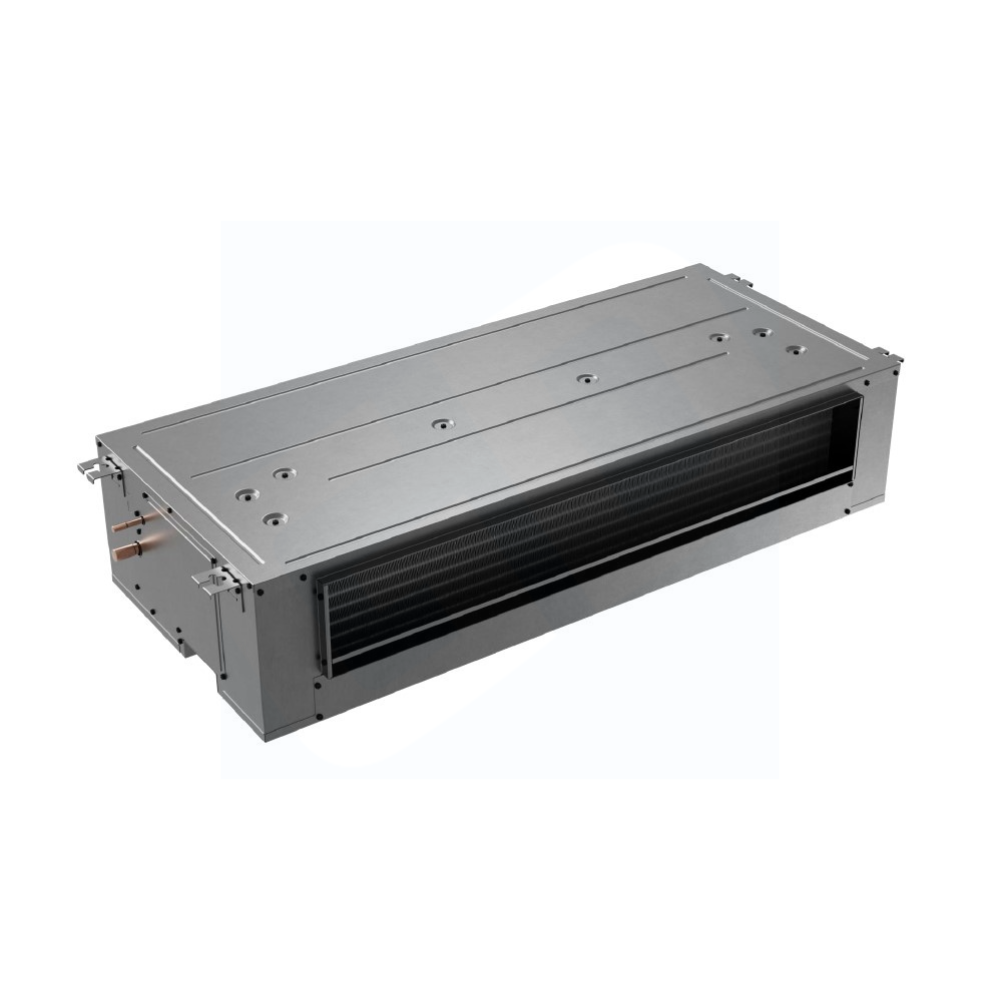

The Goodman ACST18MU1305 1.5 Ton Air Handler R32 is a genuine Goodman air handler in a 1.5 ton size and R32. Model ACST18MU1305.

Unit Type: Indoor Unit Product Line: ACST Operating Mode: Cooling & Heating System Capacity: 18,000 BTU, 1.5 Ton Cabinet Finish: Unpainted

1 x Goodman ACST18MU1305 1.5 Ton Air Handler R32

Nominal Capacity: 18,000 BTU Air Handler Family: Ceiling-mounted air handler Electric Heat Code: 5 kW

• All-Aluminum tube/aluminum fin coil
• Direct-drive, resilient-mount, multi-speed motor
• Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
• High-efficiency evaporator coil
• Quiet operation
• ACST Models: Equipped with a factory installed and fully adjustable TXV for improved performance
• Factory installed casing along with mounting brackets for all tonnages • Configurable front and bottom return for all tonnages
• Factory installed R-32 sensor designed for the lifespan of the coil
• AHRI Certified; ETL Listed
• Primary/secondary drain connection in a high-temperature plastic drain pan
• Suitable for free-return installation (non-ducted return air)
• Galvanized-steel construction
• Factory-installed pull-type disconnect
• Easy service access
• Optimized for the use with R-32 refrigerant
• Cabinet air leakage less than 2% at 1 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 1 inch H2O when tested in accordance with ASHRAE standard 193

Electrical: 208/230V, 1 phase, 60 Hz Refrigerant Platform: R32 Electric Heat Code: 5 kW

Family: ACST Source: official product spec Spec URL: https://www.goodmanmfg.com/docs/librariesprovider6/default-document-library/ss-gacst-r32.pdf
