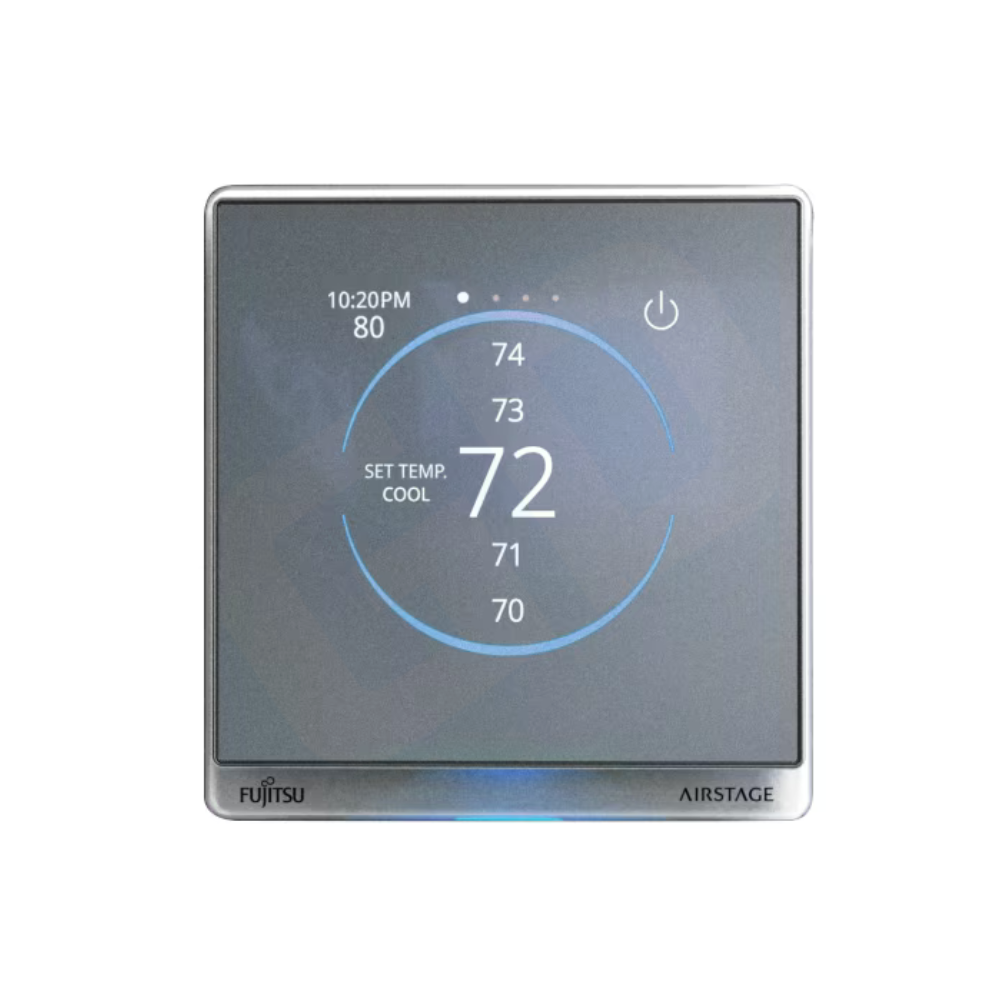

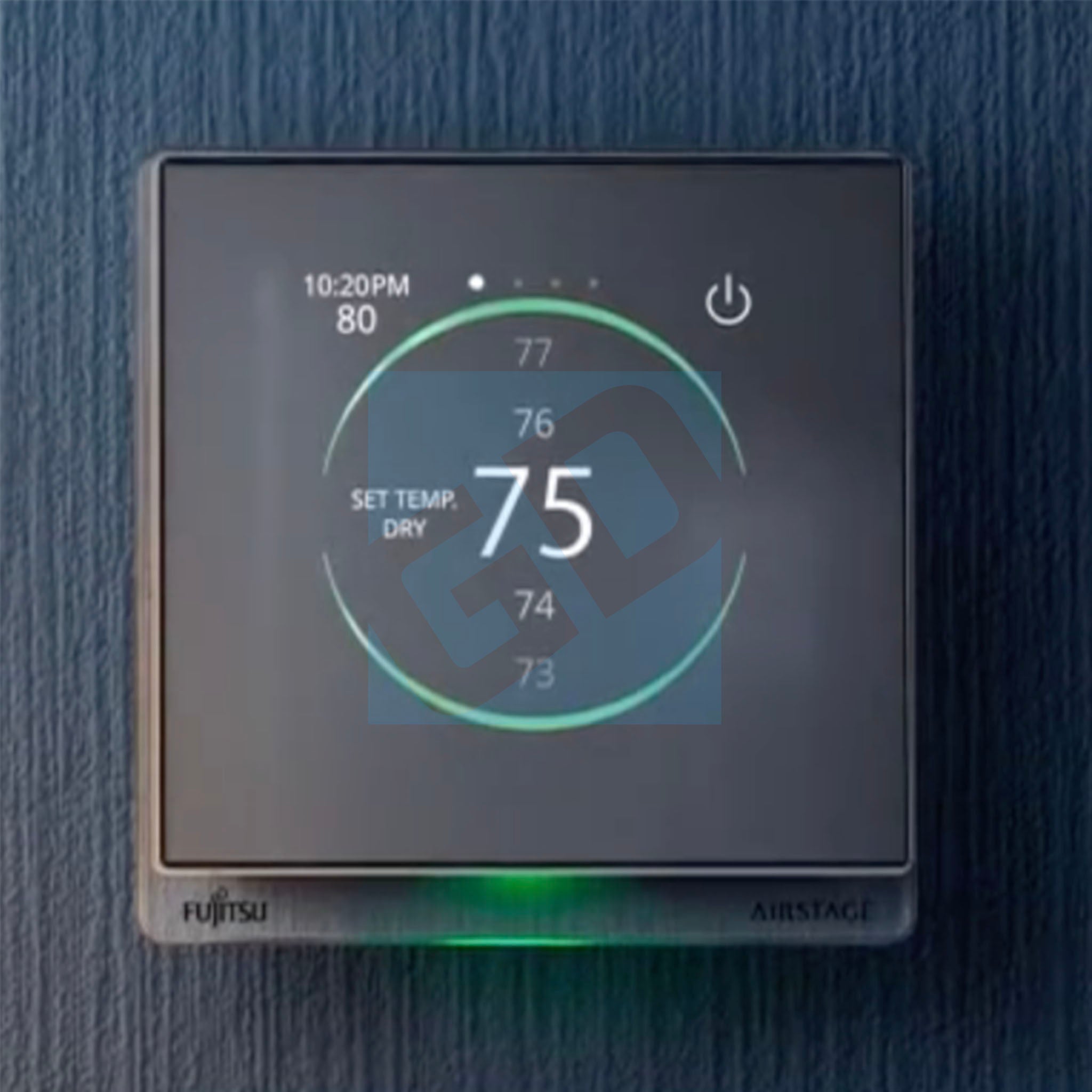

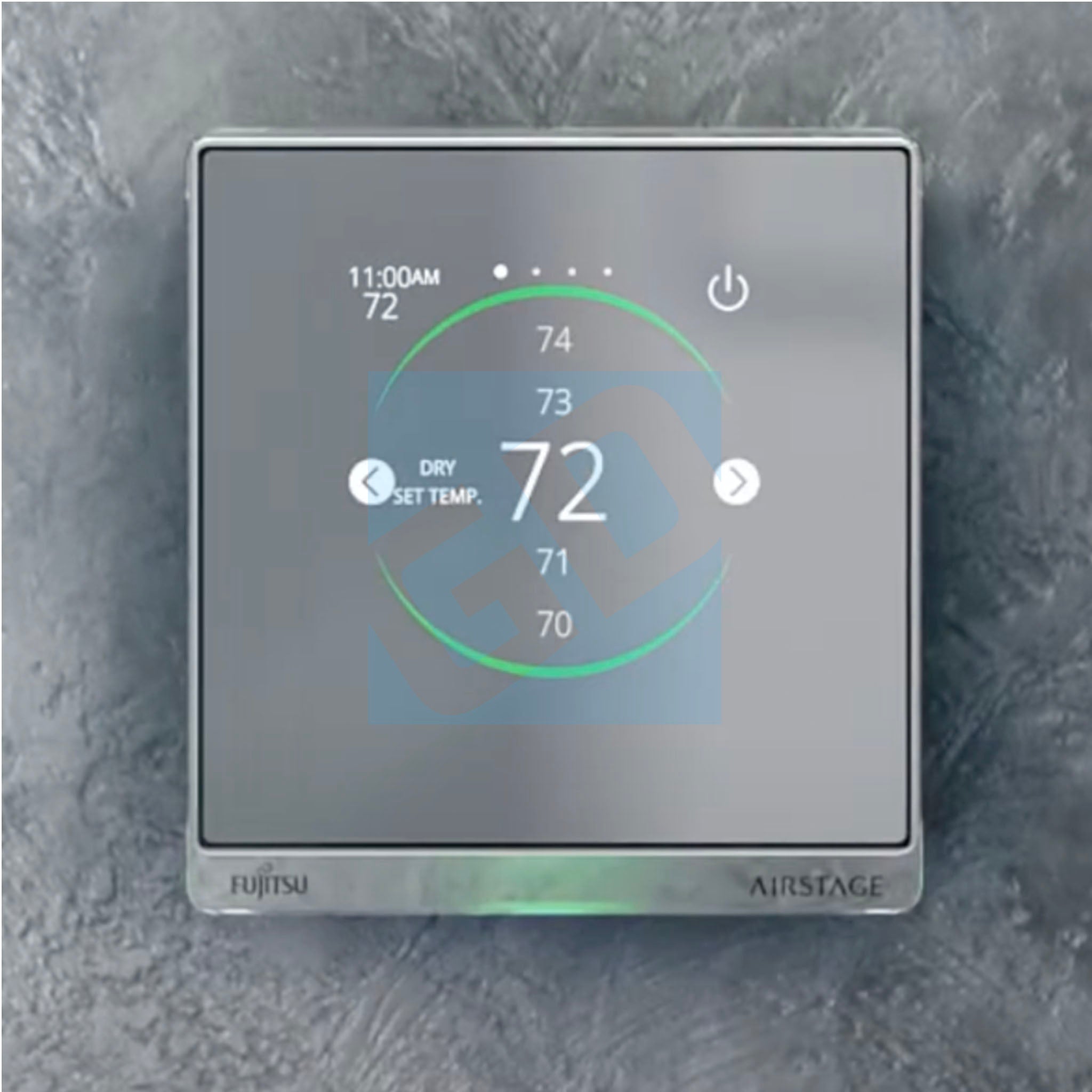

The new Fujitsu UTY-RVRU Kagami Controller is a touch enabled,
intuitive and stylish-looking controller, compatible with
2-Wire H, J, and V-Series indoor units.

Controller Type: 2 Wire Thermostat
Touch Screen: Yes
Compatible with: ACUH, ADUH, AMUG, ARUH, ASUH, AUUH Series
Set up Method: Set up your new Kagami controller via Bluetooth from your smartphone (or directly at the controller).
Maximum number of indoor units 16
Features:
• Initial configuration
• Function setting
• Custom logo import
• Copy settings between controllers

UTY-RVRU Wired Touch Screen Controller

Power supply, consumption: 12Vdc, 83mA
Power source Indoor unit through 2-wire RC
interface
Display 4 inch TFT LCD (480 × 480 pixels)
Operating temperature range: 32-104 °F (0-40 °C)
Storage temperature range: 14-140 °F (-10-60 °C)
Operating / storage humidity range: 20-90%RH (no condensation)
RoHS conformity Compliant with RoHS directive: (2011/65/EU)
Net weight oz: 7.94
H × W × D inches (mm) 4-13/16 × 4-9/16 × 1 (121.5 × 116 × 26)
Maximum number of indoor units: 16

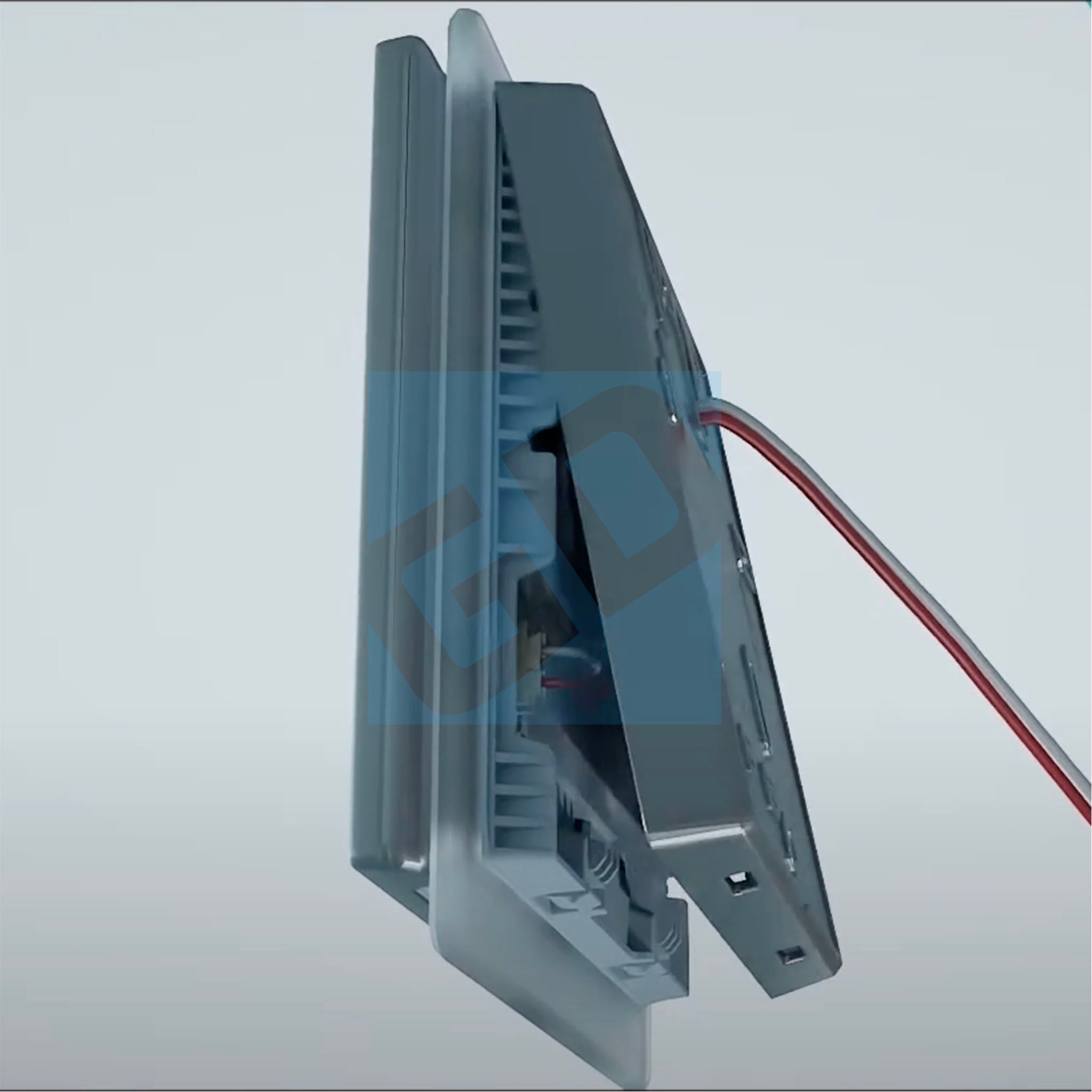

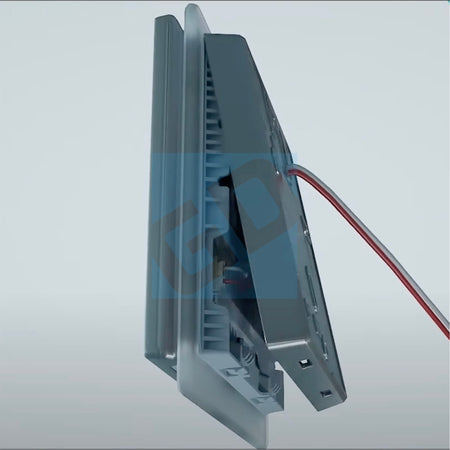

Device connection to IDU 2-cond cable, #16-22AWG, stranded, unshielded

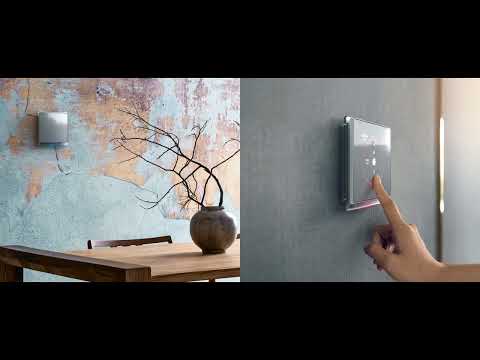

• Sleek, minimalist design that harmonizes with the space 2-wire touch panel controller for Airstage H-Series systems
• Large, easy to read, anti-fingerprint touch screen with auto dimming
• Simple, intuitive interface

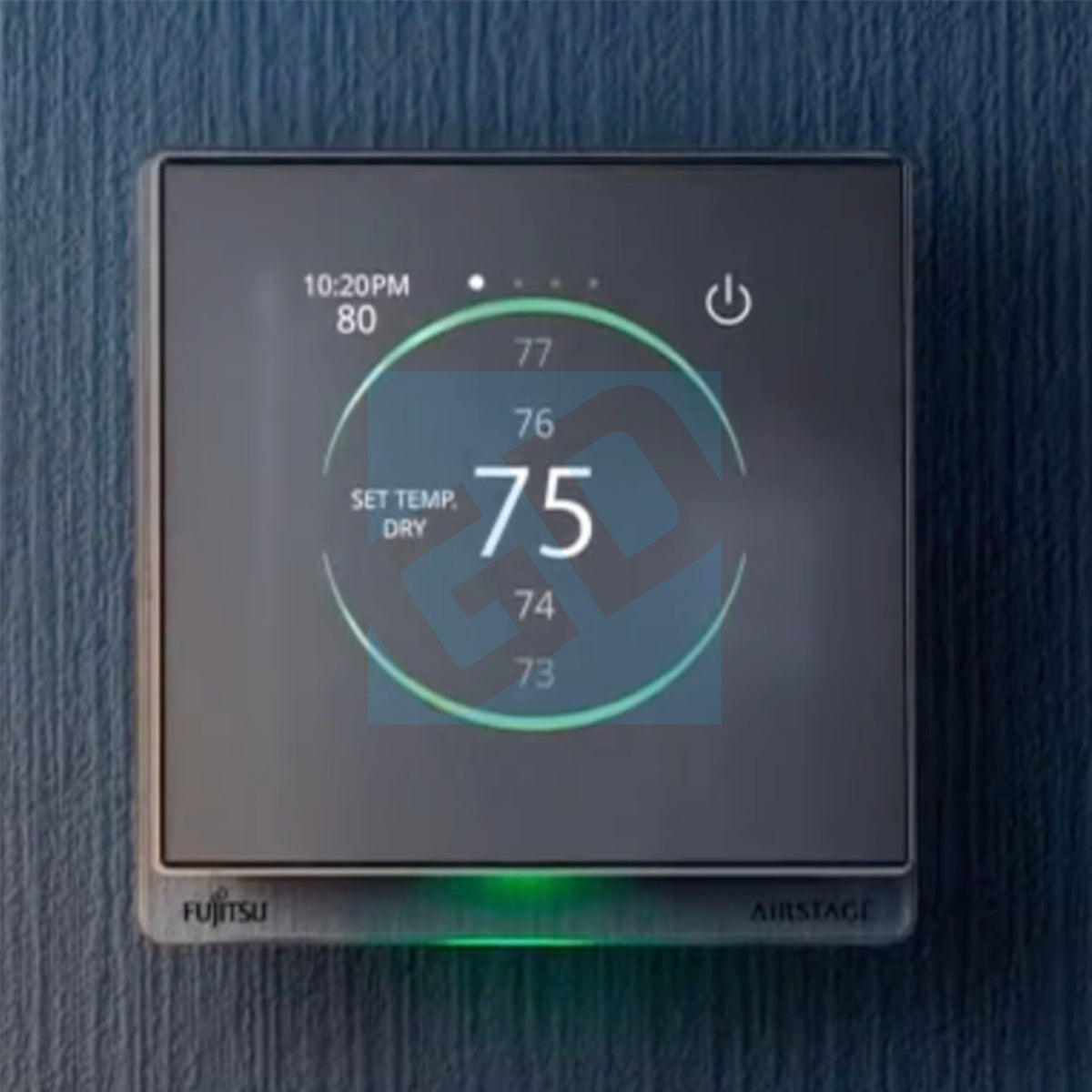

• Colored indirect LED display of operation status when controller is idle
• Initial configuration and function setting via Bluetooth connection to
Remo Set app on a smart device, or manually on the controller
• Upload settings from one controller to a template that can be downloaded
to other controllers - decreases installation time

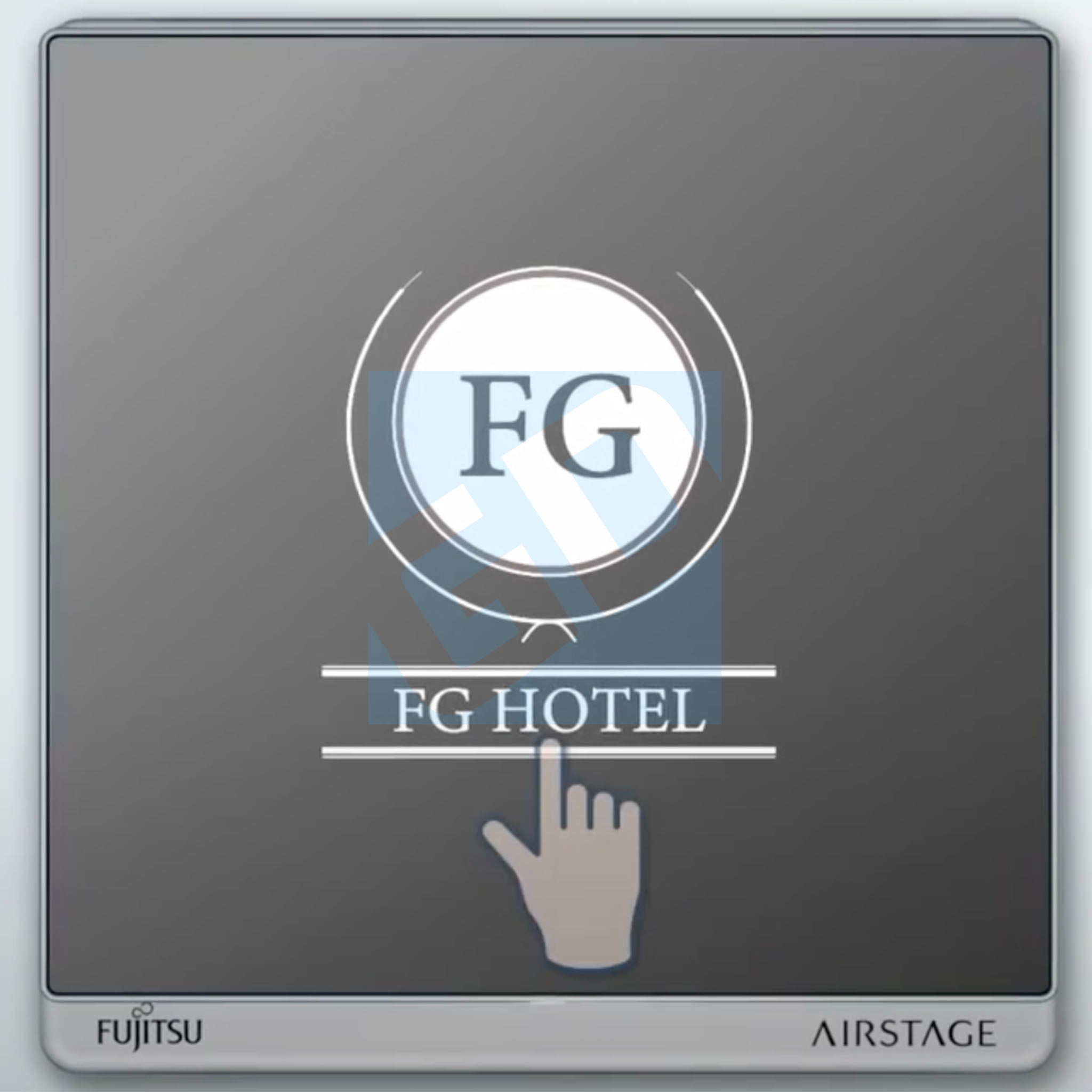

• For hospitality applications — custom logo and setting display options
• Control and monitoring of general functions, including:
• On/Off, Operation Mode, Fan Speed, and Air Flow Direction
• Room temperature display with temperature correction
• Current time display, adjusts for Daylight Savings
• Auto-Off, and Weekly Timers
• Custom Auto (dual setpoint) function
• Away / Eco Away setting
• Economy / Energy Saving Fan / Optimum Start operation
• Emergency Heat control
• Filter Status and Reset

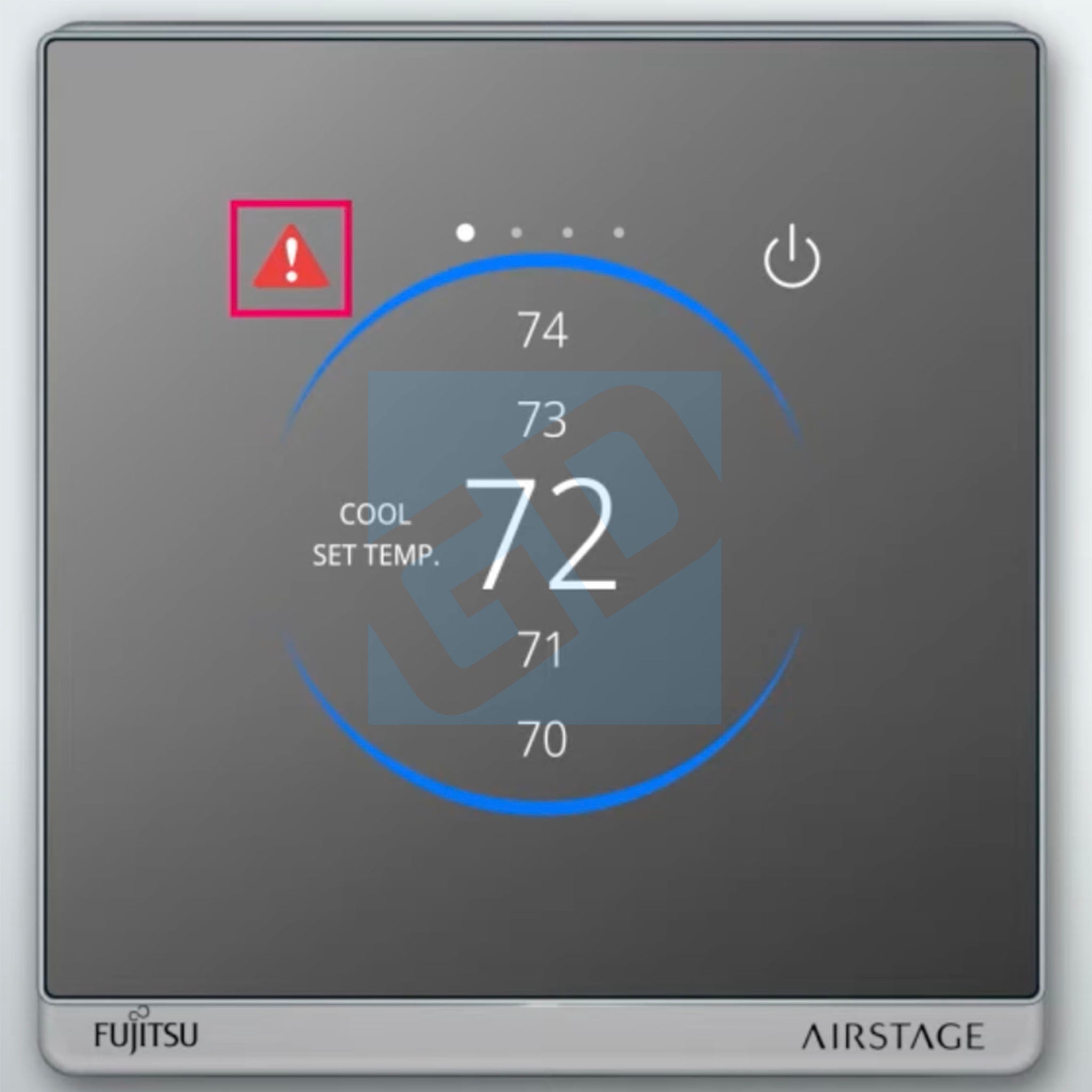

• Error display and history
• Service Menu of sensor values (available on certain
equipment models) - improves ease of serviceability
• Test Run function
• Password and child lock protection
• Multi-language DIMENSIONS
• Energy Star Compliant
• Meets California Title 24 requirements
• Retains and displays HVAC contractor contact info for support
• 90-day warranty

H × W × D (inches) 4-13/16 × 4-9/16 × 1
