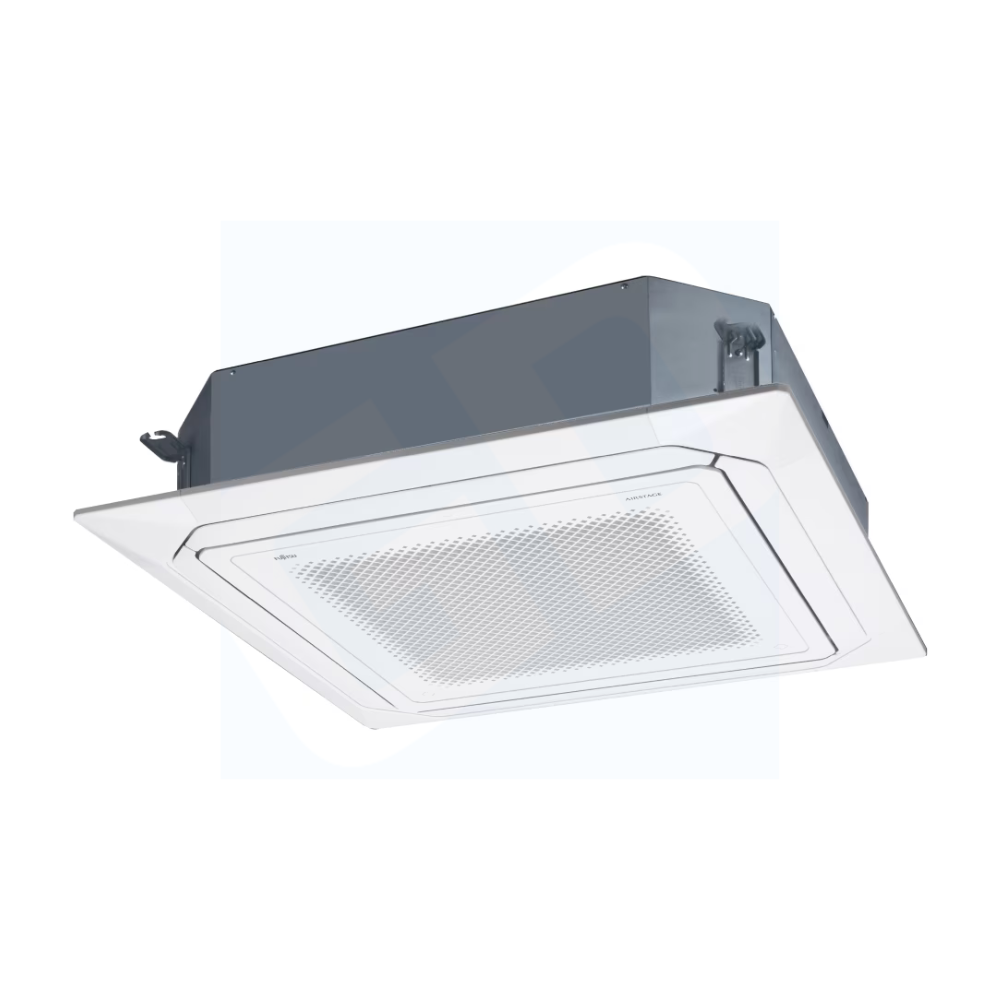

Fujitsu AUUH24KUAS is a versatile 24,000 BTU R‑32 large circular flow ceiling cassette for single zone ductless systems. Compact and flexible for ceiling or soffit installs, it offers quiet, efficient performance with corrosion-resistant coils, built-in drain pump, advanced controls, and reliable operation.

Unit Type: Indoor Unit
Product Line: Centauri Airstage
Operating Mode: Cooling & Heating
Number of Zones: Single
System Capacity: 24,000 BTU
Line Set Size: 1/4" x 1/2"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit AUUH24KUAS
UTG-LCGVCW GRILLE SOLD SEPARATELY

Nominal Capacity 24,000 BTU
Heating Operating Range 64 - 90 F
Cooling Operating Range 60 - 86 F
Room Cooling/Heating Capacity up to 1,000 sq ft

INDOOR UNIT:
• Circular-Flow cassette indoor unit delivering superior comfort and energy-efficient
performance
• Indoor unit with ProCoreTM (High Corrosion Resistant Copper) coils for long-lasting protection
against corrosion
• Whisper-quiet operation with sound levels as low as 30dB
• Multiple fan speed options; Auto, High, Med, Low, and Quiet
• Special Operation modes available:
- Economy Mode/ Energy Saving Mode / Powerful Mode / Minimum Heat Mode /
Automatic defrosting operation / Auto-restart function
• Enhanced controls platform for seamless, intuitive operation:
- Seamless control using the optional IR Receiver and Wireless Remote Controller kit
- Optional Wi-Fi connectivity enables remote monitoring through the Airstage Mobile App
- Extended connectivity with support for third-party interface options
- Compatible with BACnet and Modbus protocols for seamless integration with Building
Management and Home Automation Systems
• Advanced scheduling and timer options offer greater control over unit operation:
- Weekly Timer / 24-hr Timer / Sleep Function
• Built-in drain pump for efficient water removal making installation and maintenance easier
• Optional fresh air kit, designed to boost indoor air quality and comfort
• Additional premium features include, but are not limited to:
- Built-in external input and output for interlocking systems with 3rd party devices (Ex:
Fire Alarm, Door Switch, Humidifier, Aux. Heat & more)
- Multiple Auxiliary Heat logic for optimized heating performance
- Service monitoring functionality via compatible accessories (UTY-RVRU & UTY-RNRUZ-
series)
- Optional human sensor detects room occupancy to enhance energy savings.
- Offers group control, allowing seamless management of multiple units simultaneously.
- Cassette Grille option available in sleek white and bold black colors to perfectly
complement any space

Airflow Cooling CFM: 512-577-618-677
Airflow Heating CFM: 512-577-618-677
Noise Level dB(A), Cooling: 30-33-34-36
Noise Level dB(A), Heating: 30-33-34-36
Size (H × W × D): 9-11/16" × 33-1/16" × 33-1/16"
Weight: 53 lbs
