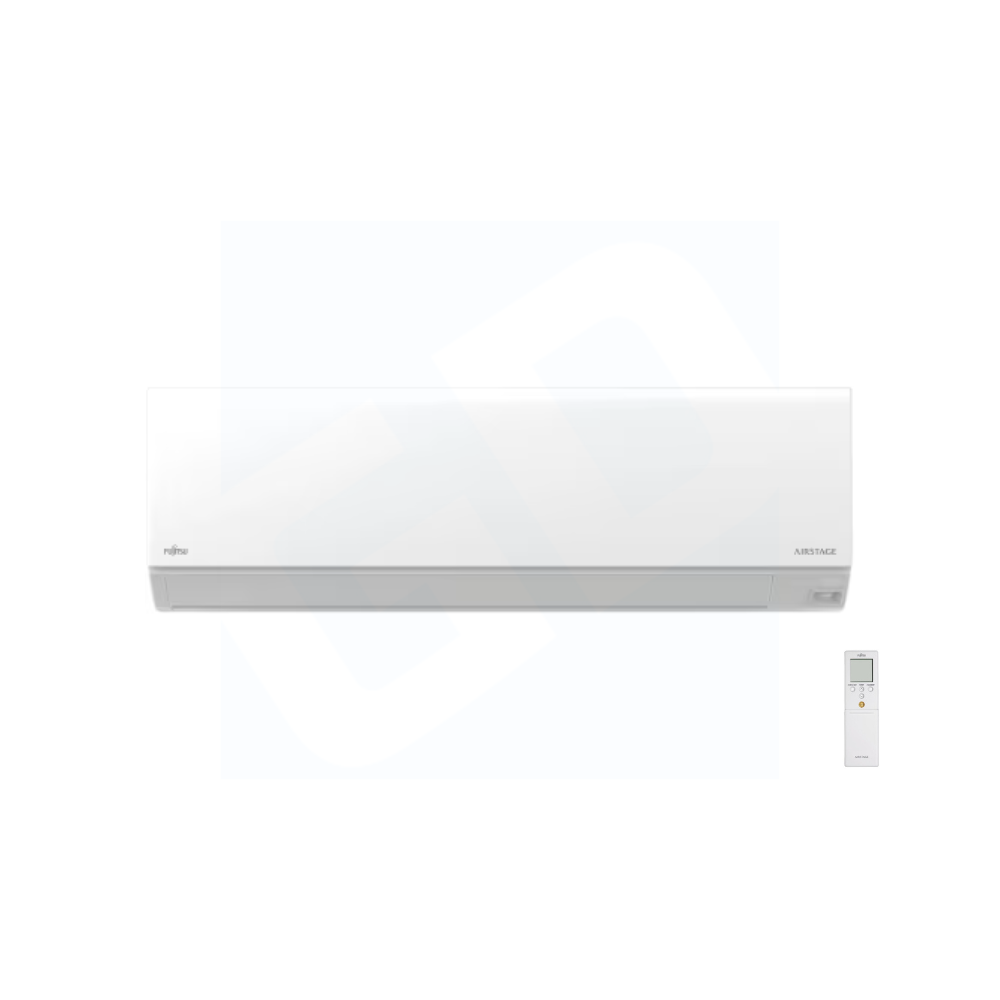

Fujitsu 12,000 BTU 24 SEER2 H-Series (Altair 500) Wall Mounted Single Zone Standard System. This is an extremely efficient heating and cooling option for a room up to 480 sf.

Unit Type: Wall Mounted
Product Line: Altair 500
Operating Mode: Heating and Cooling
Low Ambient Heat: Standard
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit ASUH12KPAS
Outdoor Unit AOUH12KPAS1
Remote Controller Included

Cooling Capacity up to 13,600 BTU
Heating Capacity up to 17,000 BTU
SEER2 24
EER2 11.7
HSPF2 10.5
Heating Minimum Temp 5 F
Cooling Minimum Temp 14 F
Room Cooling/Heating Capacity up to 480 sq ft

FEATURES
INDOOR UNIT:
• Compact wall-mounted indoor unit delivering superior comfort and energy-efficient
performance
• Indoor unit with ProCoreTM (High Corrosion Resistant Copper) coils for long-lasting
protection against corrosion
• Whisper-quiet operation with sound levels as low as 19dB
• Multiple fan speed options; Auto, High, Med-High, Med, Med-Low, Low, and Quiet.
• Special Operation modes available:
- Economy Mode / Energy Saving Mode / Powerful Mode / Minimum Heat Mode /
Automatic defrosting operation / Auto-restart function
• Enhanced controls platform for seamless, intuitive operation:
- Backlit wireless remote controller with luminous buttons for easy visibility, included
with the indoor unit
- Wi-Fi connectivity with Airstage Mobile App monitoring via compatible USB WLAN
adapter
- Extended connectivity with support for third-party interface options
- Compatible with BACnet and Modbus protocols for seamless integration with building
management and Home Automation Systems
• Advanced scheduling and timer options offer greater control over unit operation:
- Weekly Timer / 24-hr Timer / Sleep Function
• Dual-action Filtration: Apple-Catechin Filter & Ion Deodorizing Filter
• Additional premium features include, but are not limited to:
- Built-in external input and output for interlocking systems with 3rd party devices (Ex:
Fire Alarm, Door Switch, Humidifier, Aux. Heat & more)
- Multiple Auxiliary Heat logic for optimized heating performance
- Service monitoring functionality via compatible accessories (UTY-RVRU & UTY-RNRUZseries)
OUTDOOR UNIT FEATURES
• Low GWP R-32 systems for reduced environmental impact
• INVERTER-driven compressor that offers superior performance, comfort, and energy savings
• Compact outdoor unit with extended line set lengths up to 66ft (20m)
• Up to 16% higher rated heating capacity than nominal capacity
• Low-noise outdoor unit operation mode
• Hydro Fin-coated heat exchanger for improved corrosion resistance and coil durability

Airflow Cooling CFM, Dry: 153-247-283-318-365-430
Airflow Heating CFM, Dry: 188-300-330-365-394-436
Noise Level dB(A), Cooling: 19-29-32-34-38-42
Noise Level dB(A), Heating: 21-33-35-38-39-42
Size W x D x H: 10-5/8" × 32-13/16" × 8-3/4"
Weight: 21 lbs
Electrical: 208/230, 15 A

Noise Level Cooling: 48 dB(A)
Noise Level Heating: 48 dB(A)
Size W x D x H: 21-5/16" × 26-1/8" × 11-7/16"
Weight: 57 lbs
Electrical: 208/230, 15 A
Max Line Set Length: 66
Max Height Difference: 49
