Fujitsu AOLH09KNAS1 & ASLH09KNAS 9,000 BTU 17 SEER2 H-Series (KN) Wall Mounted Single Zone Standard System. This is an extremely efficient heating and cooling option for a room up to 360 sf. It is 115v for those simple installations.

Unit Type: Wall Mounted
Product Line: H-Series (Altair 300)
Operating Mode: Heating and Cooling
Low Ambient Heat: Standard
Number of Zones: 1
System Capacity: 9,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit ASLH09KNAS

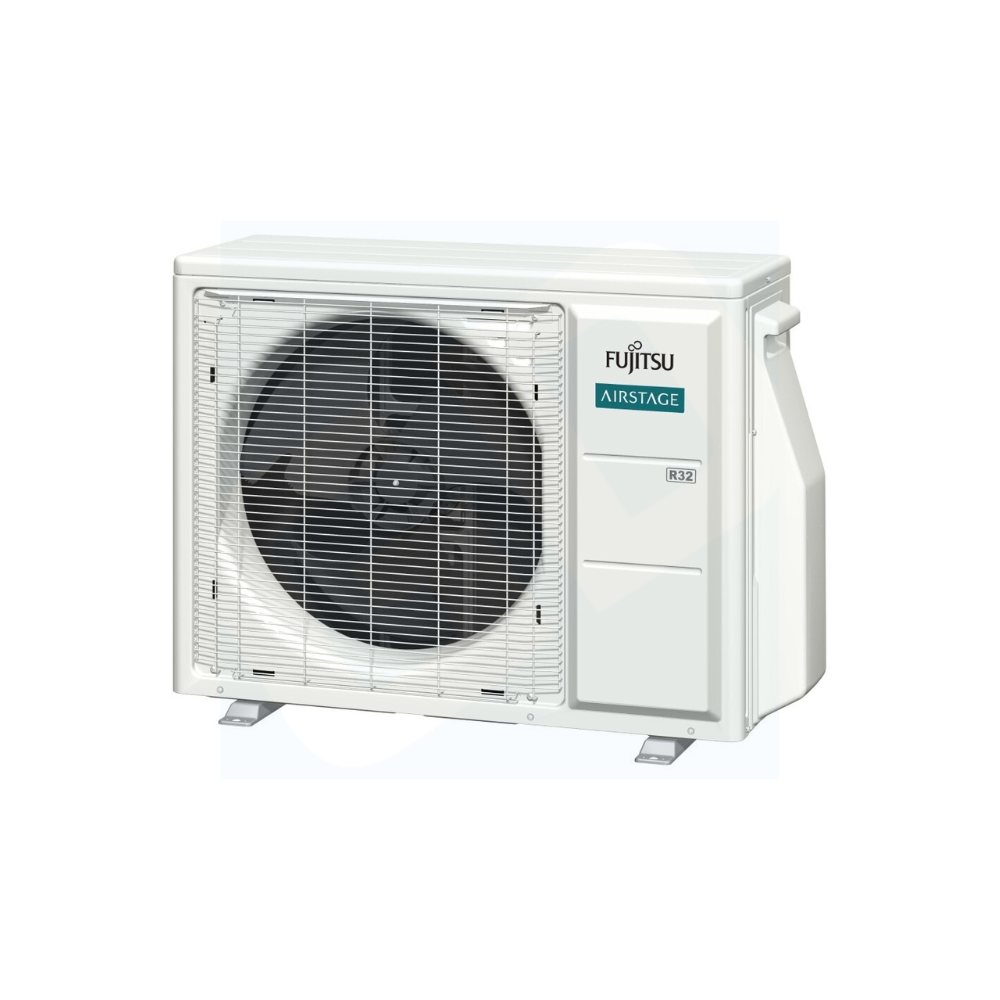

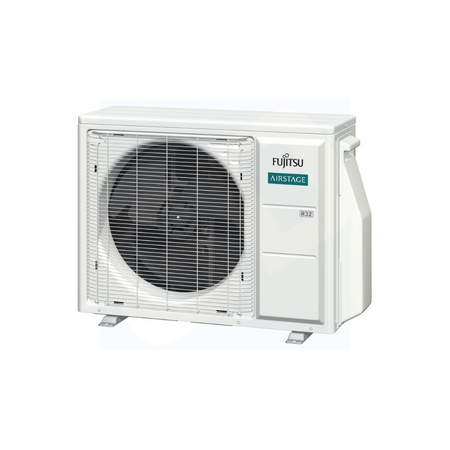

Outdoor Unit AOLH09KNAS1
Remote Controller Included

Cooling Capacity up to 10,500 BTU
Heating Capacity up to 12,400 BTU
SEER2 17
EER2 10.55
HSPF2 9
Heating Minimum Temp 5 F
Cooling Minimum Temp 50 F
Room Cooling/Heating Capacity up to 360 sq ft

INDOOR UNIT:
• 115V System for applications with limited electrical service
• Compact wall-mounted indoor unit providing superior comfort and a premium aesthetic
• Indoor unit with ProCoreTM (High Corrosion Resistant Copper) coils for long-lasting
protection against corrosion
• Whisper-quiet operation with sound levels as low as 20dB
• Multiple fan speed options; Auto, High, Med, Low, and Quiet.
• Special Operation modes available:
- Economy Mode
- Energy Saving Mode
- Powerful Mode
- Minimum Heat Mode (accessible via WLAN only)
- Auto-restart function
- Auto Changeover
• Enhanced controls platform for seamless, intuitive operation:
- Wireless remote controller included with the indoor unit
- Wi-Fi connectivity with Airstage Mobile App monitoring and control via compatible
USB WLAN adapter
- Extended connectivity with support for third-party interface options

Airflow Cooling CFM, Dry: 1413-212-288-365
Airflow Heating CFM, Dry: 153-241-300-365
Noise Level dB(A), Cooling: 20-27-35-41
Noise Level dB(A), Heating: 22-30-35-41
Size W x D x H: 9-13/16" × 30-5/16" × 8-9/16"
Weight: 15 lbs
Electrical: 115, 20 A

Noise Level Cooling: 45 dB(A)
Noise Level Heating: 46 dB(A)
Size W x D x H: 21-5/16" × 26-1/8" × 11-7/16"
Weight: 51 lbs
Electrical: 115, 20 A
Max Line Set Length: 66
Max Height Difference: 49
