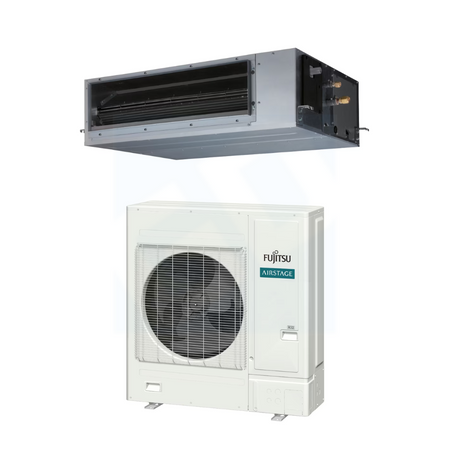

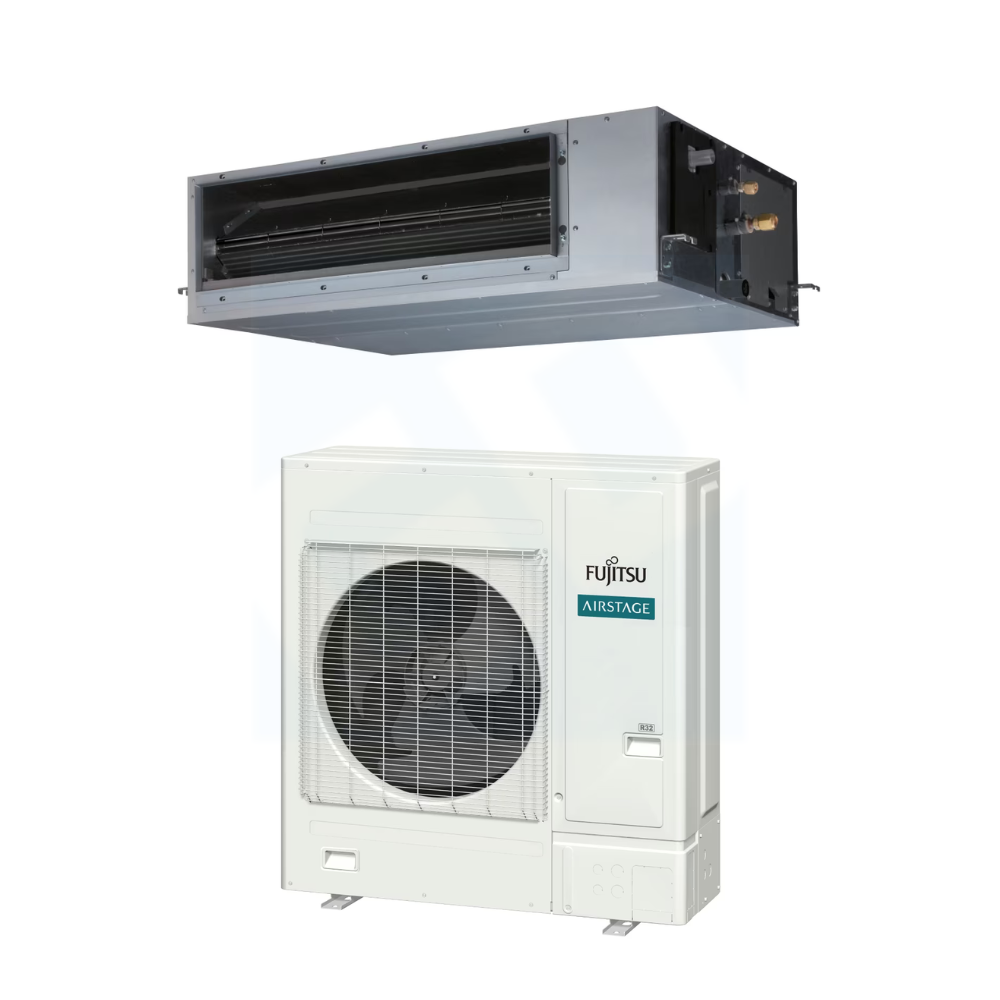

Fujitsu ARUH30KUAS & AOUH30KUAS1 is a 30,000 BTU R‑32 mid-static ducted mini-split system offering whisper-quiet comfort, built-in drain pump, advanced controls, and flexible installation. Ideal for spaces up to \~1,250 sq ft with year-round heating and cooling.

Unit Type: Single Zone
Product Line: KUAS Series
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 30,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit ARUH30KUAS
Outdoor Unit AOUH30KUAS1

Cooling Capacity up to 35,000 BTU
Heating Capacity up to 38,000 BTU
SEER2 18.5
EER2 11
HSPF2 10
Room Cooling/Heating Capacity up to 1,250 sq ft

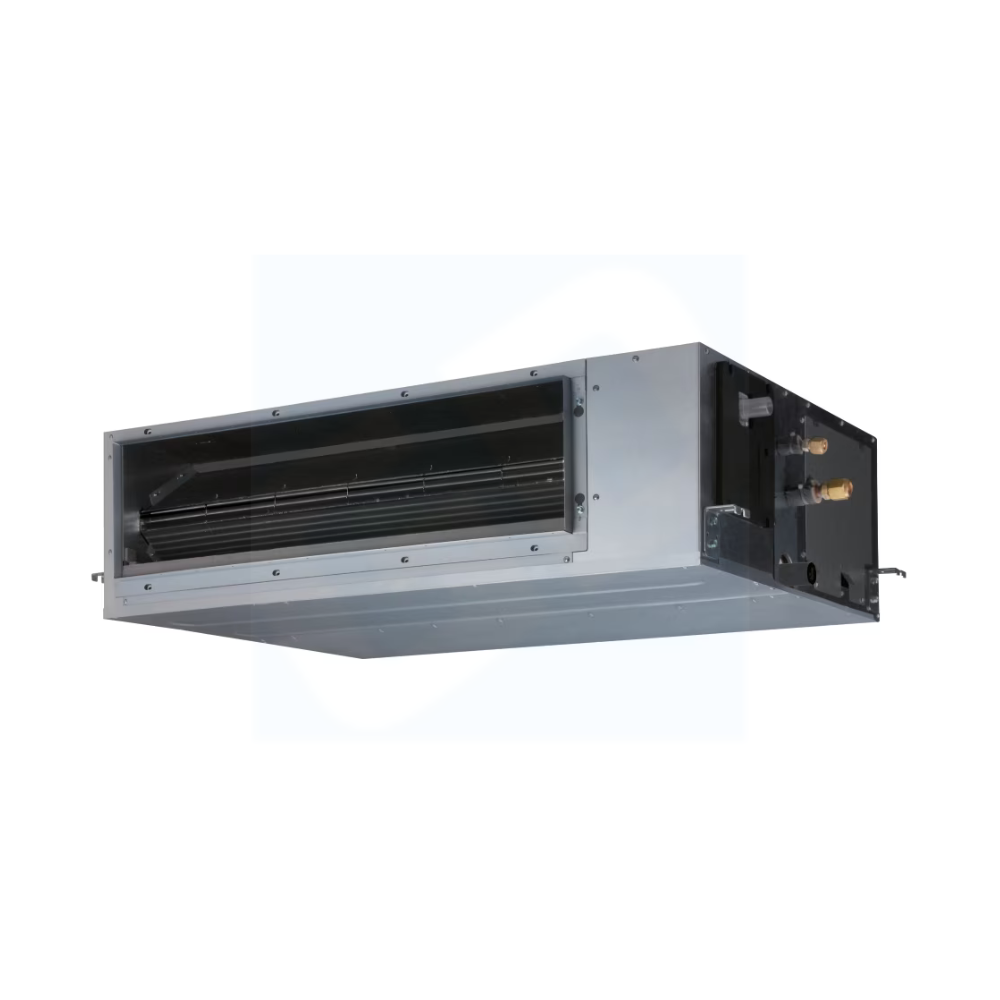

INDOOR UNIT:
• Mid Static Duct indoor unit delivering superior comfort and energy-efficient performance
• Indoor unit with ProCoreTM (High Corrosion Resistant Copper) coils for long-lasting protection
against corrosion
• Whisper-quiet operation with sound levels as low as 30dB
• Multiple fan speed options; Auto, High, Med, Low, and Quiet
• Special Operation modes available:
- Economy Mode/ Energy Saving Mode / Powerful Mode / Minimum Heat Mode /
Automatic defrosting operation / Auto-restart function
• Enhanced controls platform for seamless, intuitive operation:
- Seamless control using the optional IR Receiver and Wireless Remote Controller kit (UTYLBTUM)
- Optional Wi-Fi connectivity enables remote monitoring through the Airstage Mobile App
- Extended connectivity with support for third-party interface options
- Compatible with BACnet and Modbus protocols for seamless integration with Building
Management and Home Automation Systems
• Advanced scheduling and timer options offer greater control over unit operation:
- Weekly Timer / 24-hr Timer / Sleep Function
• Built-in drain pump for efficient water removal making installation and maintenance easier
• Features automatic static pressure detection for optimal airflow and system efficiency
• Wide external static pressure range of up to 0.8 inWG for adaptable performance
• Offers group control, allowing seamless management of multiple units simultaneously
• Equipped with a built-in refrigerant leak detection sensor for enhanced safety and reliability.
• Additional premium features include, but are not limited to:
- Built-in external input and output for interlocking systems with 3rd party devices (Ex:
Fire Alarm, Door Switch, Humidifier, Aux. Heat & more)
- Supports compatibility with the Airzone third-party communicating zoning system for
optimized zoning control
- Multiple Auxiliary Heat logic options for optimized heating performance
- Service monitoring functionality via compatible accessories (UTY-RVRU & UTY-RNRUZseries)
- Flexible intake configuration with side or bottom options to meet installation
requirements.
OUTDOOR UNIT:
• Low GWP R-32 systems for reduced environmental impact
• INVERTER-driven compressor that offers superior performance, comfort, and energy savings
• Compact outdoor unit with extended line set lengths up to 164ft (50m)
• Provides low ambient cooling and heating down to -5°F for dependable performance in
extreme conditions.
• Blue Fin-coated heat exchanger for improved corrosion resistance and coil durability

Airflow Cooling CFM: 630-700-800-1,001
Airflow Heating CFM: 630-700-800-1,001
Noise Level dB(A), Cooling: 30-33-36-39
Noise Level dB(A), Heating: 30-33-36-39
Size W x D x H: 11-13/16" x 39-3/8" x 27-9/16"
Weight: 93 lbs

Noise Level Cooling: 55 dB(A)
Noise Level Heating: 57 dB(A)
Size W x D x H: 39-5/16" x 37" x 12-5/8"
Weight: 137 lbs
Electrical: 208/230V
Max Line Set Length: 164 ft
Max Height Difference: 98 ft
