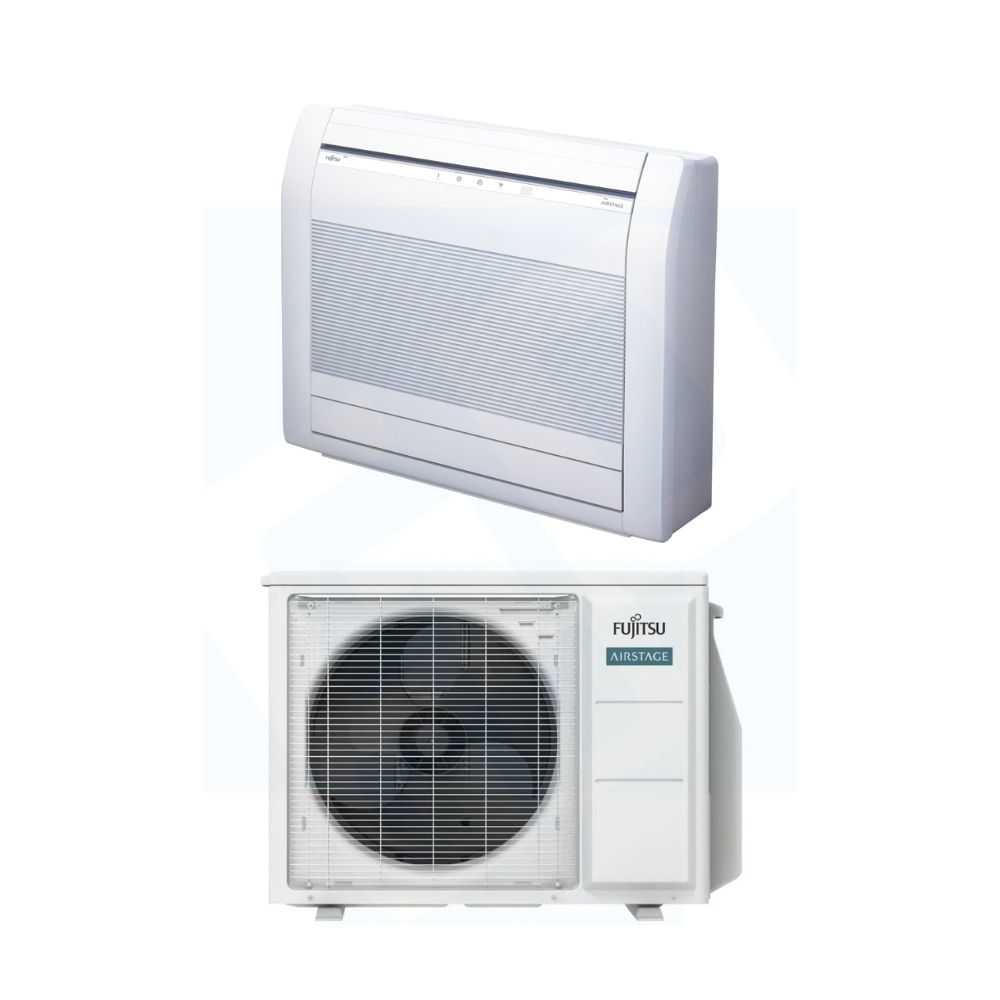

The Fujitsu AGUH15KUAS & AOUH12KUBS is a 15,000 BTU floor-mounted heat pump system featuring inverter technology, built-in Wi-Fi, whisper-quiet operation as low as 22 dB(A), and efficient year-round heating and cooling. Its compact low-wall design, powerful airflow, and smart controls make it ideal for bedrooms, offices, additions, and other spaces where wall-mounted units aren't practical.

Unit Type: Single Zone
Product Line: Airstage Aquila
Operating Mode: Cooling & Heating
Number of Zones: 1
System Capacity: 15,000 BTU
Line Set Size: 1/4" x 3/8"

Indoor Unit AGUH15KUAS
Outdoor Unit AOUH12KUBS

Cooling Capacity Rated 15,000 BTU
Heating Capacity Rated 15,000 BTU
Heating Operation Rate: -5~75 F
SEER2: 25
HSPF2 (IV / V): 11.2 / 8.8
EER2: 13.5
COP2: 3.4
Room Cooling/Heating Capacity up to 650 sq ft

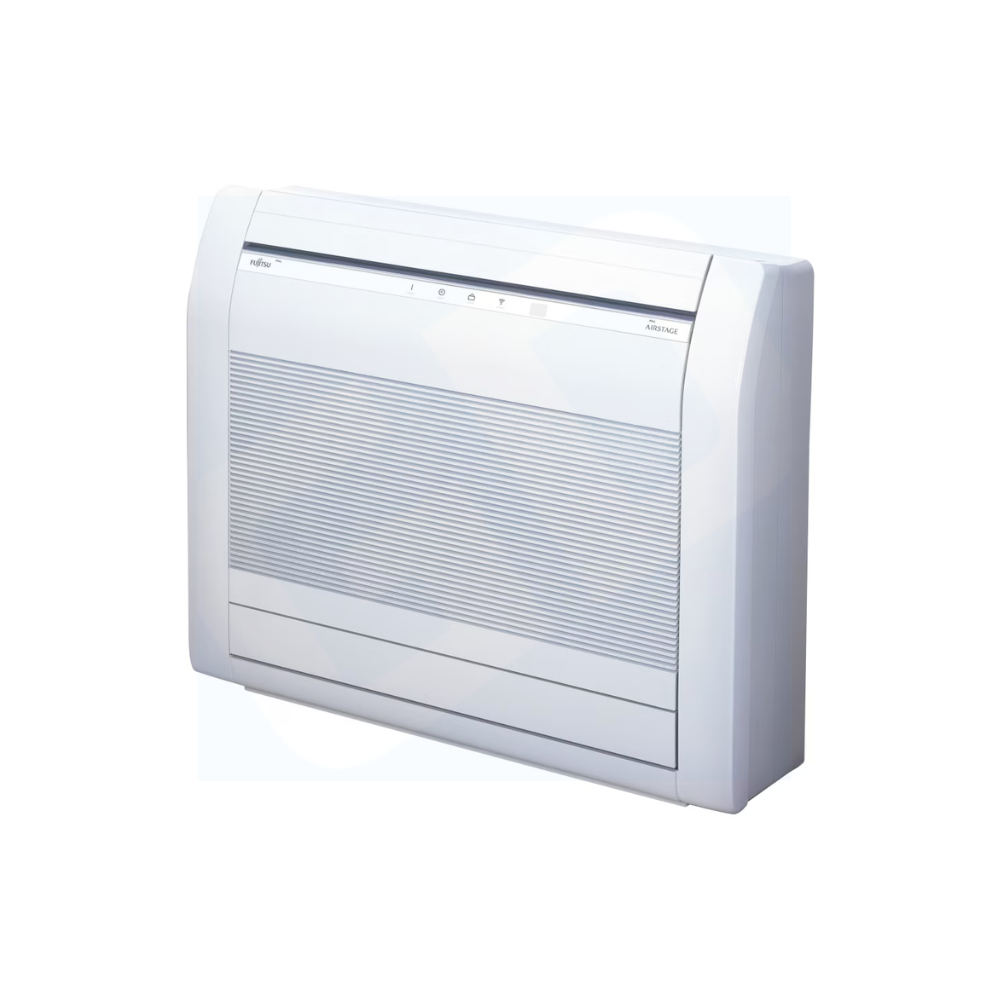

INDOOR UNIT:
• Floor-Mounted Units are designed for comfort where wall space is limited, delivering powerful, quiet
performance with flexible installation.
• Whisper-quiet operation with sound levels as low as 22dB
• Multiple fan speed options; Auto, High, Med, Low, and Quiet
• Special Operation modes available:
- Economy Mode/ Energy Saving/ Powerful Mode / Minimum Heat Mode / Automatic defrosting
operation / Auto-restart function
• Enhanced controls platform for seamless, intuitive operation:
- Seamless control using the Optional Wireless Remote Controller (UTY-LNXUZ1)
- Built-in Wi-Fi connectivity for remote monitoring & control via the Airstage Mobile App
- Extended connectivity with support for third-party interface options
• Advanced scheduling and timer options offer greater control over unit operation:
- Weekly Timer / 24-hr Timer / Sleep Function
• Offers group control, allowing seamless management of multiple units simultaneously
• Equipped with a built-in refrigerant leak detection sensor for enhanced safety and reliability
• Additional premium features include, but are not limited to:
- Built-in external input and output for interlocking systems with 3rd party devices (Ex: Fire Alarm,
Door Switch, Humidifier, Aux. Heat & more)
- Multiple Auxiliary Heat logic options for optimized heating performance
- Service monitoring functionality via compatible accessories (UTY-RVRU & UTY-RNRUZ-series)

OUTDOOR UNIT:
• Low GWP R-32 systems for reduced environmental impact
• INVERTER-driven compressor that offers superior
performance, comfort, and energy savings
• Compact outdoor unit with extended line set lengths up to
98ft (30m)
• Outdoor Unit Low-noise operation mode
• Low ambient cooling and heating down to -5°F for
dependable performance in extreme conditions

Airflow Cooling CFM: 159-235-306-383
Airflow Heating CFM: 159-253-318-383
Noise Level dB(A), Cooling: 22-31-38-44
Noise Level dB(A), Heating: 22-33-39-44
Size W x D x H: 23-5/8" x 29-1/8" x 7-7/8"
Weight: 31 lbs

Noise Level Cooling: 45 dB(A)
Noise Level Heating: 48 dB(A)
Size W x D x H: 21-5/16" x 31-7/16" x 11-7/16"
Weight: 71 lbs
Electrical: 15 Amps, 208/230v
Min. Line-Set Length: 16 ft
Max. Line-Set Length: 65 ft
Pre-Charged Length: 50 ft
