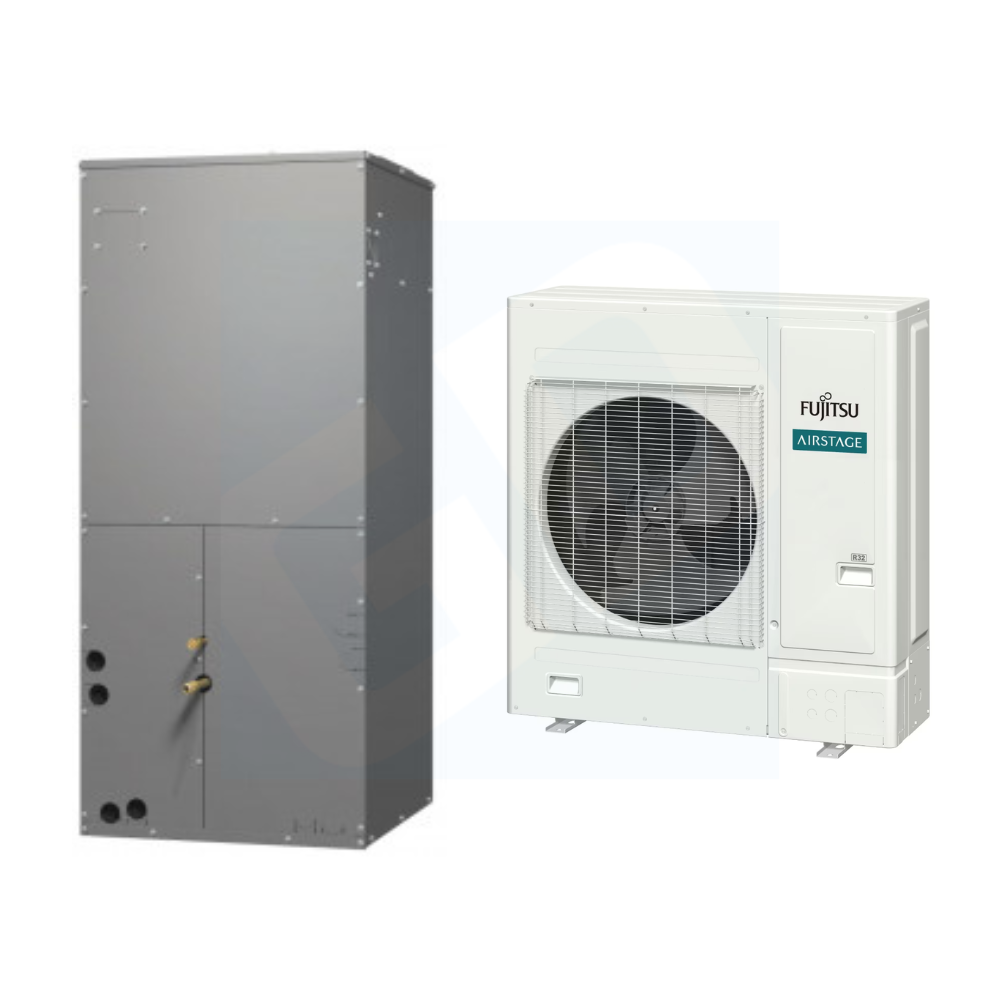

The Fujitsu AMUH30KUAS/AOUH30KUAH1 30,000 BTU AIRSTAGE Centauri XLTH multi-position ducted heat pump offers 18.8 SEER2 efficiency, heating down to -15°F, quiet operation, R-32 refrigerant, INVERTER technology, and optional Wi-Fi for reliable year-round comfort.

Unit Type: Multi-Position Air Handler
Product Line: Centauri XLTH Series
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: Single
System Capacity: 30,000 BTU
Line Set Size: 3/8" x 5/8"
Wifi Enabled: Yes
Wifi Built In: No

Indoor Unit AMUH30KUAS
Outdoor Unit AOUH30KUAH1

Cooling Capacity up to 35,000 BTU
Heating Capacity up to 39,000 BTU
SEER2 18.8
EER2 12.2
HSPF2 10
Heating Minimum Temp -5 F
Cooling Minimum Temp -5 F
Room Cooling/Heating Capacity up to 1,250 sq ft

FEATURES
INDOOR UNIT:
• Ducted Multi-Position Air Handling Unit ideal for whole home cooling and heating
• Multi-position configuration: Up flow, Left, Right, or Downflow (Optional Downflow kit required)
• Low-noise design with sound levels as low as 32 dB
• Built-in refrigerant leak detection sensor
• Multiple fan speed options; Auto, High, Med, Low, and Quiet
• Wide external static pressure (ESP) range: up to 0.8 inWG
• Special Operation modes available:
- Economy Mode/ Automatic defrosting operation / Auto-restart function
• Enhanced control platform:
- Wireless control available via optional IR receiver and wireless remote (UTY-LBTUM)
- Optional Wi-Fi module enables remote access through the Airstage Mobile App
- Supports third-party interface connectivity for expanded integration
- BACnet and Modbus protocol compatibility for Building Management and Home Automation
systems
• Advanced scheduling and timer options with Weekly Timer / 24-hr Timer / Sleep Function
• Built-in I/O terminals support integration with third-party devices (e.g. fire alarms, door switches,
humidifiers, auxiliary heat, and ERV/HRV systems)
• Optional electric heater kits for additional heat capacity
• Emergency heat supported via external output terminal and configurable through function settings
• Integrated backup heat control provides reliable operation in extreme conditions
• Service monitoring functionality via compatible accessories (UTY-RVRU & UTY-RNRUZ-series)
• Supports 24Vac thermostat connections for third-party control integration
• Ideal for installation in zero-clearance applications (e.g. mobile homes, manufactured homes)
• Low air leakage rate of less than 2%, tested per ASHRAE Standard 193.
• Compatible with Airzone third-party communicating zoning system.
OUTDOOR UNIT:
• Low GWP R-32 systems for reduced environmental impact
• Common Outdoor Unit compatible with all non-wall-mounted indoor unit types
• INVERTER-driven compressor that offers superior performance, comfort, and energy savings
• Built-in base pan heater for low ambient conditions
• Factory pre-charged for up to 98 ft (30 m) of refrigerant piping
• Compact outdoor unit with extended line set length up to 246ft (75m)
• Low ambient operation with heating down to −15°F and cooling down to −5°F
• Exceeds 100% heating capacity at 0°F and 80% at −15°F (Dry bulb)
• Blue Fin-coated heat exchanger for improved corrosion resistance and coil durability

Airflow Cooling CFM: 630-700-800-1,000
Airflow Heating CFM: 630-700-800-1,000
Noise Level dB(A), Cooling: 32-35-37-42
Noise Level dB(A), Heating: 33-36-38-43
Size W x D x H: 48" x 21" x 21"
Weight: 137 lbs

Noise Level Cooling: 53 dB(A)
Noise Level Heating: 53 dB(A)
Size W x D x H: 39-5/16" x 37" x 12-5/8"
Weight: 159 lbs
Electrical: 208/230V, 20A
Max Line Set Length: 246 ft
Max Height Difference: 98 ft
