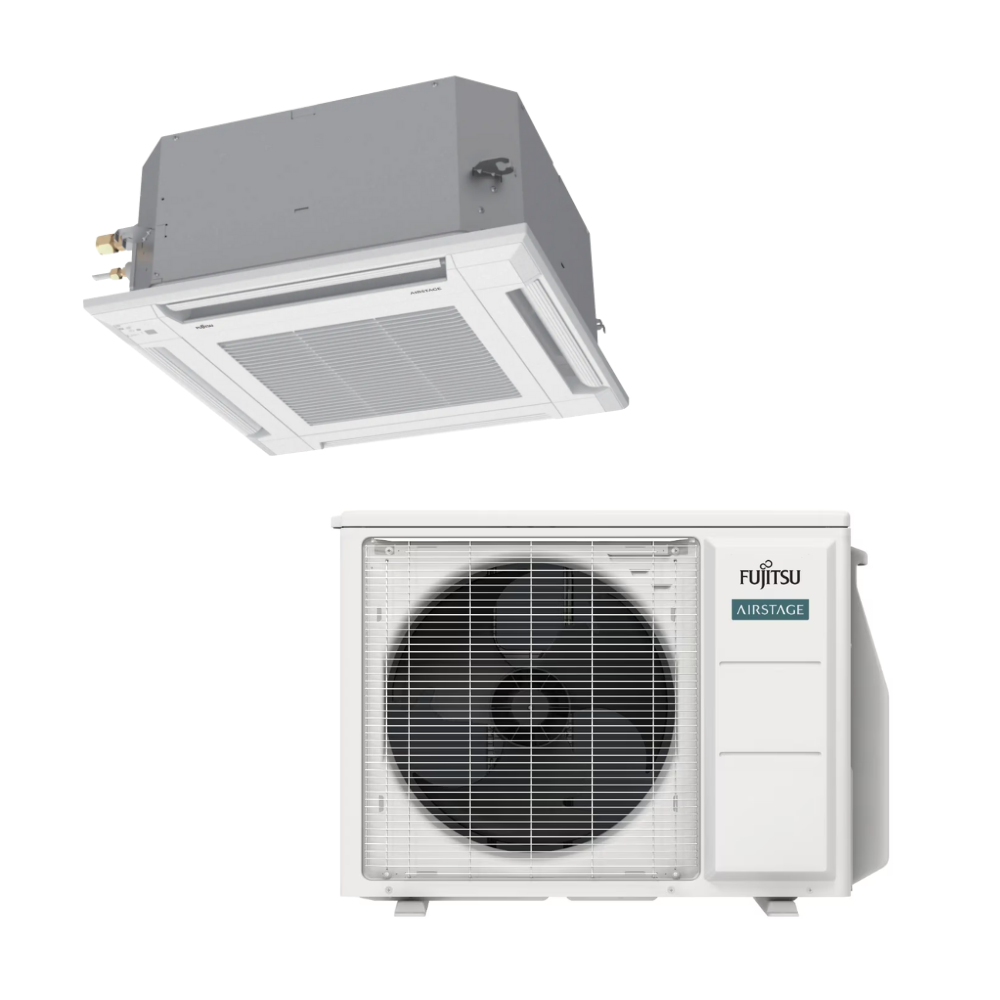

Fujitsu 12,000 BTU 22.1 Compact Cassette Single Zone System is the perfect product to use to heat and cool a space where you can fit the indoor unit into drop ceilings, retrofitted framing, and other ceiling spaces. You can use this system if you do not want any units on your walls or floors. This system comes with an out of the box 7 year compressor / 5 years part warranty, 10 year warranty if its installed by a licensed HVAC tech and registered within 60 days, or a 12 year warranty if it's installed by a Fujitsu Elite contractor. This is using R32 refrigerant.

Unit Type: Ceiling Cassette
Product Line: Airstage Centauri
Operating Mode: Heating and Cooling
Low Ambient Heat: No
Number of Zones: 1
System Capacity: 12,000 BTU
Line Set Size: 1/4" x 3/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit ACUH12KUAS
Grille: UTG-CCGFGA
Outdoor Unit AOUH12KUAS1
Remote Controller Not Included

Cooling Capacity 12,000 BTU
Min-Max Cooling: 3,100-13,600 BTU
Heating Capacity 16,000 BTU
Min-Max Heating: 3,100 - 19,400 BTU
SEER2: 23.1
HSPF2: 14.1
EER2: 11.5
Heating Minimum & Maximum Temp: -5 F - 75 F
Cooling Minimum & Maximum Temp: 14 F - 115 F
Room Cooling/Heating Sizing: up to 500 sq ft

FEATURES
INDOOR UNIT:
• Compact cassette indoor unit delivering superior comfort and energy-efficient performance
• Indoor unit with ProCoreTM (High Corrosion Resistant Copper) coils for long-lasting protection
against corrosion
• Whisper-quiet operation with sound levels as low as 29dB
• Multiple fan speed options; Auto, High, Med, Low, and Quiet
• Special Operation modes available:
- Economy Mode/ Energy Saving Mode / Powerful Mode / Minimum Heat Mode /
Automatic defrosting operation / Auto-restart function
• Enhanced controls platform for seamless, intuitive operation:
- Seamless control using the Optional Wireless Remote Controller (UTY-LNTU)
- Optional Wi-Fi connectivity enables remote monitoring through the Airstage Mobile App
- Extended connectivity with support for third-party interface options
- Compatible with BACnet and Modbus protocols for seamless integration with Building
Management and Home Automation Systems
• Advanced scheduling and timer options offer greater control over unit operation:
- Weekly Timer / 24-hr Timer / Sleep Function
• Built-in drain pump for efficient water removal making installation and maintenance easier
• Optional fresh air kit, designed to boost indoor air quality and comfort
• Cassette grille (front panel) fits seamlessly into standard grid-style office ceilings (sold
separately)
• Additional premium features include, but are not limited to:
- Built-in external input and output for interlocking systems with 3rd party devices (Ex:
Fire Alarm, Door Switch, Humidifier, Aux. Heat & more)
- Multiple Auxiliary Heat logic options for optimized heating performance
- Service monitoring functionality via compatible accessories (UTY-RVRU & UTY-RNRUZseries)
- Offers group control, allowing seamless management of multiple units simultaneously

Moisture Removal: 2.5 Pt./h
Air Circulation Modes: Hi, Medium, Low, Quiet
Air Mode CFMs: 359, 312, 277, 241
Indoor Sound Levels (dBs,Cooling/Heating): 37/37, 33/33, 31/31, 29/29
Net Weight: 33 lbs
Dimensions (HxWxD): 9 5/8", 22 7/16", 22 7/16"
Compatible Controllers: Wired Remote Controller (UTY-RNRUZ), Simple Remote Controller (UTY-RSRY), Wireless Remote Controller (UTY-LNTU)

Voltage: 208-230V
Circuit Breaker: 15 Amps
Net Weight: 84 lbs
Dimensions (HxWxD): 24 7/8", 31 7/16", 11 7/16"
Minimum Line-set Length: 16'
Maximum Line-Set Length: 66'
Max Vert Diff: 49'
Outdoor Line-Set Ports: 1/4" x 3/8"
