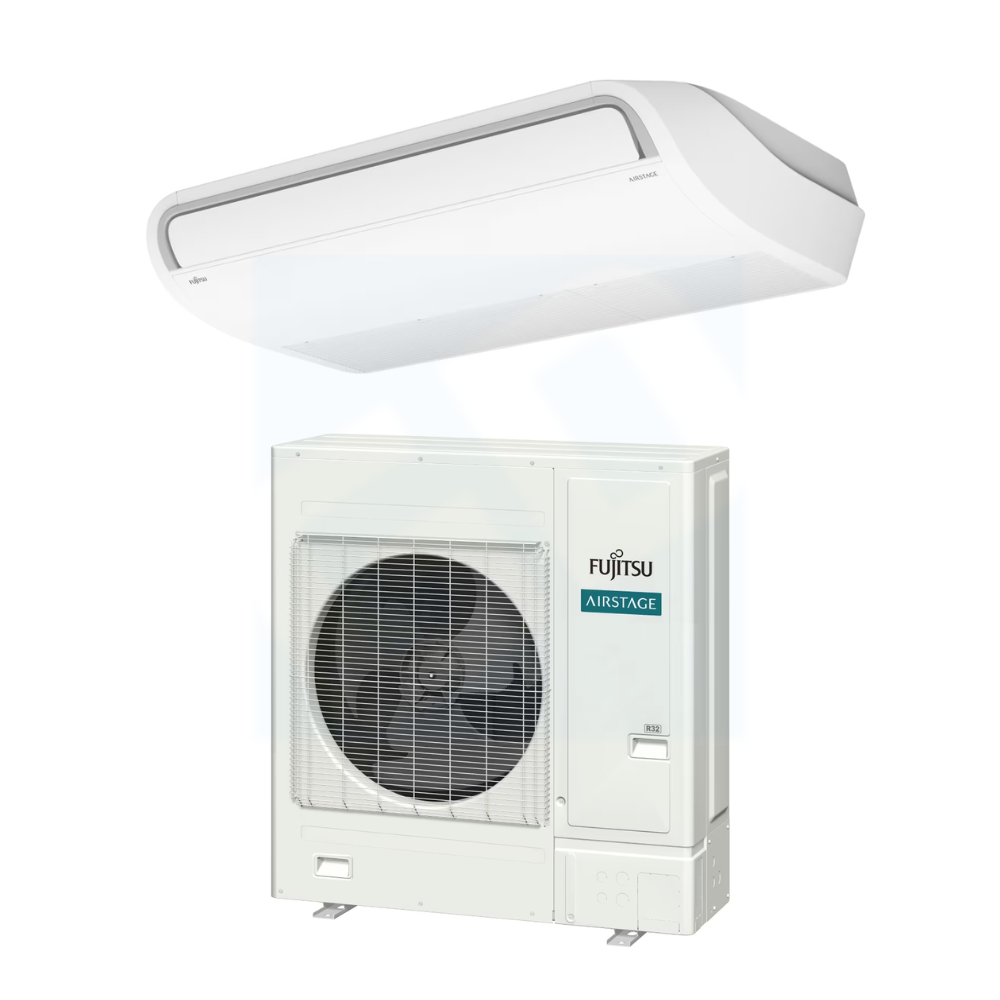

Fujitsu ABUH30KUAS & AOUH30KUAS1 is an 30,000 BTU R-32 ceiling-suspended mini-split system offering quiet, efficient comfort for up to 1,250 sq ft. Features ProCore™ coils, advanced controls, and ENERGY STAR® certification. Ideal for flexible, discreet ceiling-mounted installs.

Unit Type: Single Zone
Product Line: KUAS Series
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 30,000 BTU
Line Set Size: 3/8" x 5/8"
WiFi Enabled: Yes
WiFi Built In: No

Indoor Unit ABUH30KUAS
Outdoor Unit AOUH30KUAS1

Cooling Capacity up to 30,000 BTU
Heating Capacity up to 32,000 BTU
SEER2 20.8
EER2 12
HSPF2 10.5
Room Cooling/Heating Capacity up to 1,250 sq ft

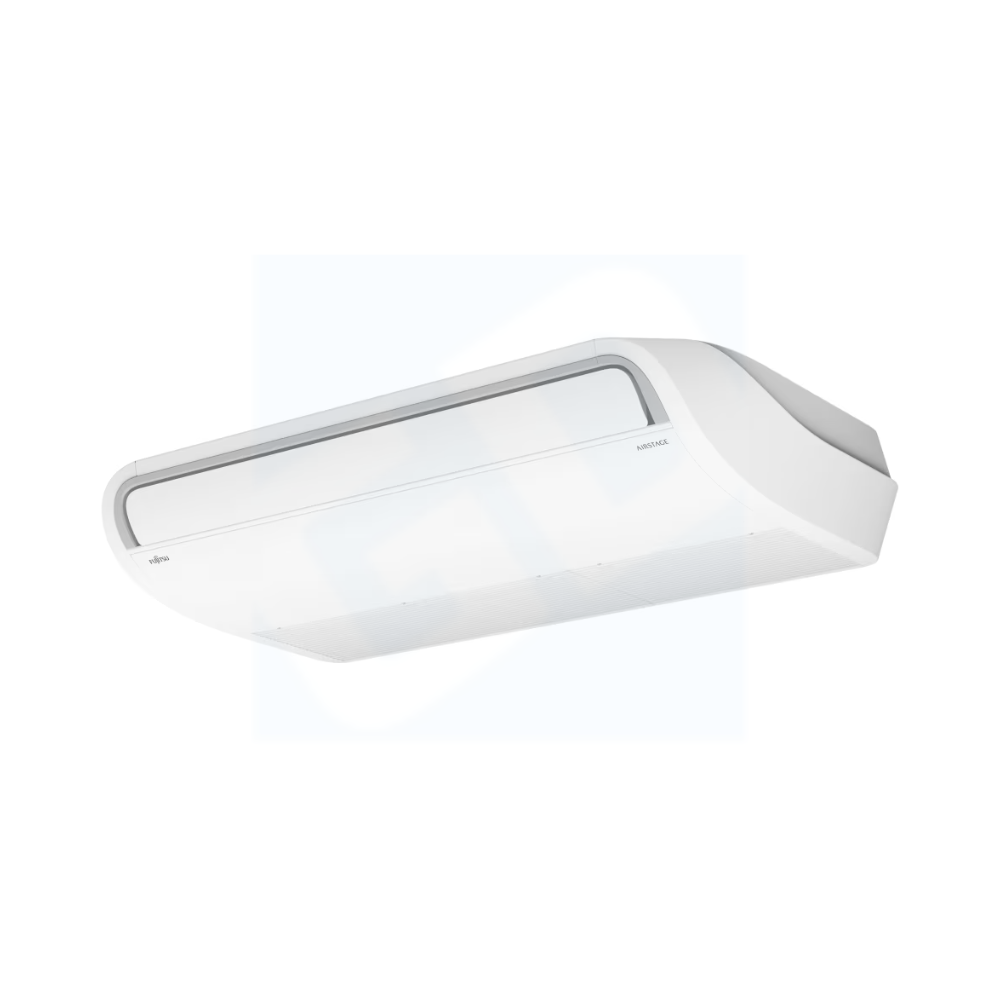

INDOOR UNIT:
• Ceiling-suspended indoor unit delivering superior comfort and energy-efficient performance
• Indoor unit with ProCoreTM (High Corrosion Resistant Copper) coils for long-lasting protection
against corrosion
• Whisper-quiet operation with sound levels as low as 32dB
• Multiple fan speed options; Auto, High, Med, Low, and Quiet
• Special Operation modes available:
- Economy Mode/ Energy Saving Mode / Powerful Mode / Minimum Heat Mode /
Automatic defrosting operation / Auto-restart function
• Enhanced controls platform for seamless, intuitive operation:
- Seamless control using the optional IR Receiver and Wireless Remote Controller kit
- Optional Wi-Fi connectivity enables remote monitoring through the Airstage Mobile App
- Extended connectivity with support for third-party interface options
- Compatible with BACnet and Modbus protocols for seamless integration with Building
Management and Home Automation Systems
• Advanced scheduling and timer options offer greater control over unit operation:
- Weekly Timer / 24-hr Timer / Sleep Function
• Optional drain pump unit for efficient water removal and flexible installation
• Offers group control, allowing seamless management of multiple units simultaneously
• Additional premium features include, but are not limited to:
- Built-in external input and output for interlocking systems with 3rd party devices (Ex:
Fire Alarm, Door Switch, Humidifier, Aux. Heat & more)
- Multiple Auxiliary Heat logic options for optimized heating performance
- Service monitoring functionality via compatible accessories (UTY-RVRU & UTY-RNRUZseries)
OUTDOOR UNIT:
• Low GWP R-32 systems for reduced environmental impact
• INVERTER-driven compressor that offers superior performance, comfort, and energy savings
• Compact outdoor unit with extended line set lengths up to 164ft (50m)
• Blue Fin-coated heat exchanger for improved corrosion resistance and coil durability

Airflow Cooling CFM: 471-577-659-824
Airflow Heating CFM: 471-577-659-824
Noise Level dB(A), Cooling: 32-35-40-45
Noise Level dB(A), Heating: 32-35-40-45
Size W x D x H: 9-1/4" x 54-3/4" x 27-3/4"
Weight: 68 lbs

Noise Level Cooling: 53 dB(A)
Noise Level Heating: 55 dB(A)
Size W x D x H: 39-5/16" x 37" x 12-5/8"
Weight: 137 lbs
Electrical: 208/230V
Max Line Set Length: 164 ft
Max Height Difference: 98 ft
