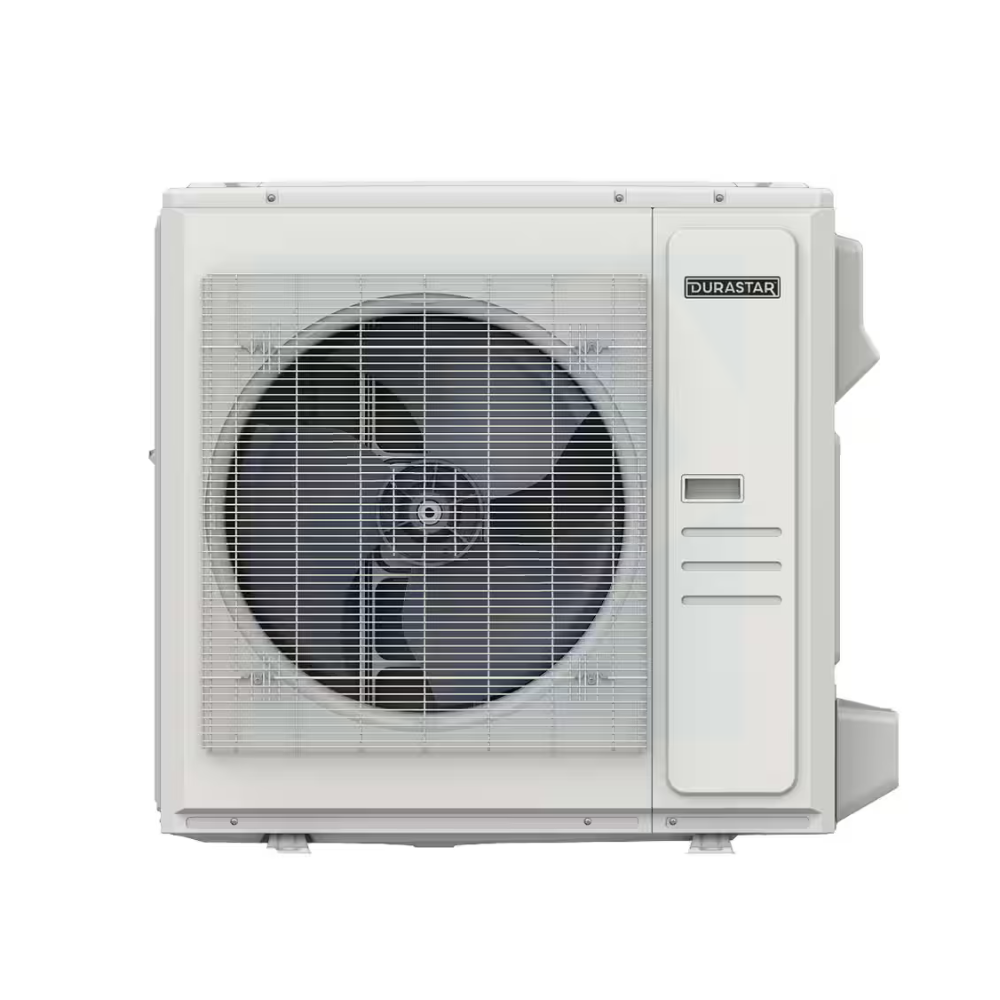

Durastar DRU1U60S2A delivers 60,000 BTU of high-capacity ducted comfort with inverter tech, R‑454B refrigerant, and –13°F cold-climate performance. ENERGY STAR® compatible, compact, and ideal for large residential or light commercial installations.

Unit Type: Outdoor Unit
Product Line: Durastar Mini-Splits
Operating Mode: Cooling & Heating
Low Ambient Heat: Yes
Number of Zones: 1
System Capacity: 60,000 BTU
Line Set Size: 3/8" x 3/4"

Outdoor Unit DRU1U60S2A

Cooling Capacity 16,600 - 49,900 BTU
Heating Capacity 15,300 - 49,500 BTU
Heating Operating Temp -13 - 75 F
Cooling Operating Temp -13 - 122 F
Room Cooling/Heating Capacity up to 2,000 sq ft

PRODUCT FEATURES
• High-efficiency constant volume variable speed motor
• Several tax credit eligible, ENERGY STAR certified, pairings
• Multi-position installation: horizontal and vertical
• 115V convertible air handler
• Automatic BTU identification
• Built-in dehumidifier, humidifier, and IAQ ports
• All-aluminum coil
• Anti-corrosive coil fin coating
• Low ambient heating down to -13oF
• Low ambient cooling down to -13oF
• Refrigerant leak detection system installed
• Base pan heater installed
• DRSTAT101 programmable wired thermostat included
• Automatic airflow configuration technology
• Multiple operation modes (Cool, Heat, Aux, Dry, Fan, Auto)
• 24V thermostat compatible
• Optional electric heat (not included)

Noise Level: 65 dB(A)
Size W x D x H: 27.95" x 26.77" x 56.50"
Weight: 192.90 lbs
Electrical: 208/230V, 40 A
Max Line Set Length: 246 ft
Max Height Difference: 98 ft
